Material: | Stanless Steel | Theory: | Plunger Pump |
---|

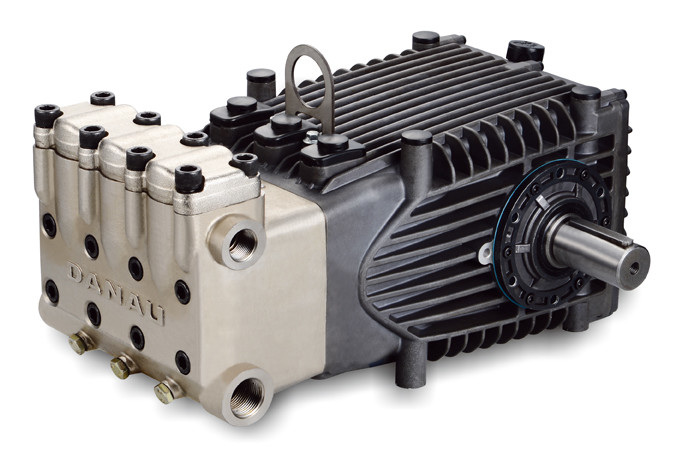

DBG SERIES
ULTRA-HIGH PRESSURE
PLUNGER PUMP
FEATURES
Forged stainless steel manifold, symmetrical inlet/outlet for left to right mounting
Die-cast alloy aluminum crankcase, anodized.
Ceramic coating plunger features high precision, and high wear-resistance.
PARKER High-low dual pressure packing, with integrated cooling.
High volumetric efficiency checking valve, features spherical sealing areas.
Symmetrical power end with top and bottom mounting holes allows for easy left to right shaft conversion.
Manifold Material optional in STAINLESS 420, DUPLEX(SSD)2205.
Applications: Municipal, environmental, petrochemical, mining, sea water reverse osmosis desalination,
food, drink, alcohol, chemical, pharmaceutical and other industries.
IMPORTANCE

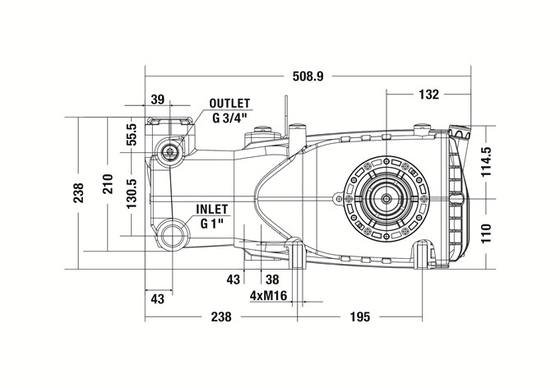

Inlet Port: 1" BSP
Outlet Port: 3/4” BSP
Oil Bath Capacity: 3800ml (half level of oil gauge)
Oil Type: 85W/90 or greater GEAR OIL
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. :50° C/122° F
APPLICABLE VALVES
AUTOMATIC UNLOADER VALVE
Modular structure, water inlet and outlet parts make of stainless steel, bypass part made of brass, Heat
treated stainless valve core titanium plated.
Max Pressure: 600bar/8700psi
Max Flow: 60LPM/15.9GPM
Inlet Port: 1/2"
Outlet Port: 1/2"
Bypass Port: 3/4"
VERSIONS

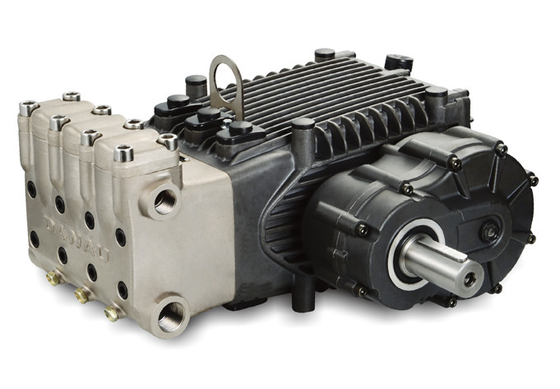

Gearbox reduction version
Aluminum alloy precision die casting housing, anodized. High-grade helical gear.
Reduction ratio: NO.1(2.18:1), NO.2 (2.26:1), NO.3(2.94:1)
SPECIFICATIONS
APPLICATIONS
Pump head material - stainless steel 420
Application: municipal, sanitation, petrochemical, mining and other industries
