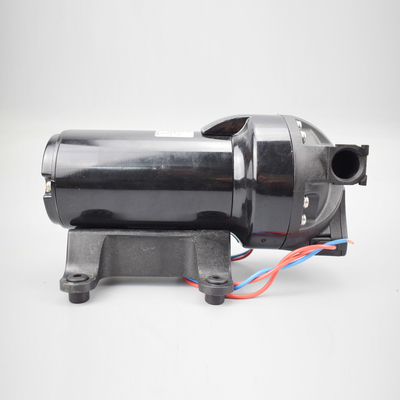

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series
FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series

Large Image :  FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series

Product Details:
Place of Origin: China
Brand Name: FLOWEXPRESS
Certification: CE;RoHS
Model Number: DP-70 series
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 60*30*25 cm; 25kg
Delivery Time: 3-15days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 5000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: Electric Power, Solar, Battery
Pressure: High Pressure Application: Maritime



FLOWEXPRESSTM DP-70 Automatic Pressure Control High Flow Diaphragm Water Pump DC 12V 24V Optional 70PSI 19LPM/5GPM



FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 0



APPLICATIONS



  • Diaphragm pump main for Marine fresh or salt water wash down installation.
  • Other uses may include 12V DC pressurized water system in cabins.
  • This pump may be used for general water transfer & light corrosivity chemical liquid transfer usage.

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 1

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 2



FEATURES



FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 3 Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes.

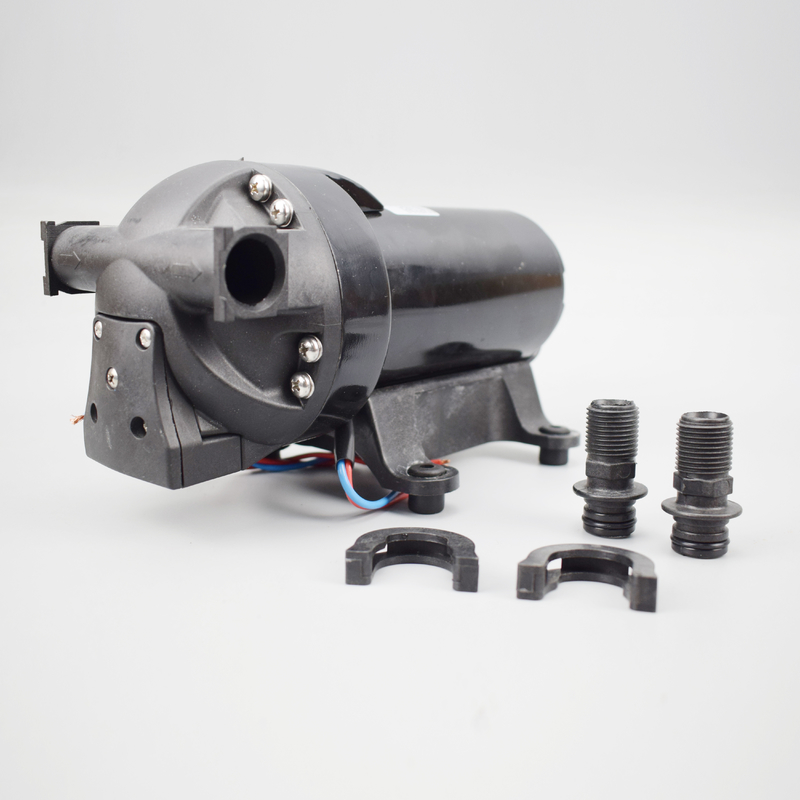

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 3 Snap–in Port Fittings.

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 3 Soft Noise Absorbing Mounts

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 3 Built-in Bypass: Less Pulsation

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 3 Corrosion Resistant Materials

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 3 Self-priming and Can run dry for extended periods of time without damage

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 3 Ball bearing drive throughout pump and motor assures longer pump life.

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 3 Excellent self-priming capability.

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 3 Powerful, permanent magnet motor with low current draw and long life brushes.

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 3 Meets ISO 8846 (Ignition protection)



SPECIFICATIONS



Name                                          SURFLO pump

Model Numbers                           OEM/Aftermarket KDP-61

Voltage                                        12/24 VDC

Dimensions Inches/Millimeters     9.25" x 5.0" x 5.5" [235x127x121mm]

Flow Rate GPM/LPM                    5.0 GPM [19 LPM]

Amps (Max.)                                 12A

Shut-Off Pressure                         70 PSI [4.8 BAR]



PRESSURE-FLOW CURVE



FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 13



IMAGES

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 14FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 15FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 16FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 17FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 18



DIMENSIONS AND STRUCTURE

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 19

FLOWEXPRESS High Flow Diaphragm Pump DP-70 Series 20



CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistant Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
