Product Details:
Payment & Shipping Terms:
|
| Theory: | Vacuum Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Usage: | Water | Power: | Electric |
| Standard Or Nonstandard: | Nonstandard | Fuel: | DC Power |
| Pressure: | High Pressure | Application: | Yacht, Caravan, RV |
| High Light: | Pressure pump,24V,washer pump |
||

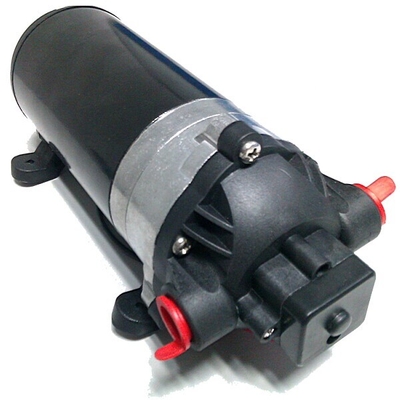

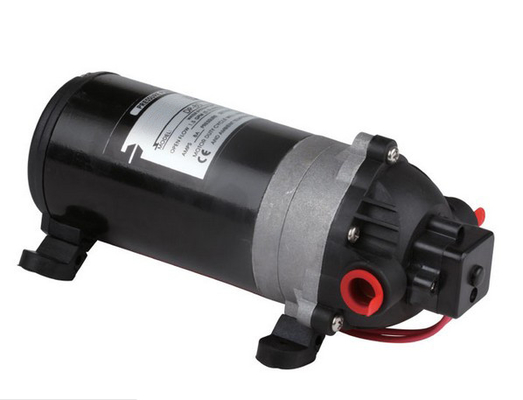

PUMP Design: 3 chamber diaphragm
Motor Design: 12, 24 VDC; 110, 115, 120, 220, 230VAC
Pump Head: Glass filled Nylon
Elastomers: Diaphragm - Santoprene; Check Valves - EPDM or Viton
Max. Flow rate: 5.5lpm (1.5gpm), can be adjusted from 1.0-5.5lpm (0.3-1.5gpm) as required.
Max Pressure: 170psi (11.9bar) switch cutoff, can be adjusted from 10psi (0.6bar) to 170psi(11.9bar) as required.
Liuid Temperature: 40°F(5°C) Min.; 140°F(60°C) Max.
Inlet/Outlet fitting:10mm pyramid connector, 3/8" hose barb and thread fitting, etc for your choice.
Protection: pressure switch protection: pressure-off protection or circumfluence switch protection. For the powered control you can choose pump without pressure protection.
Duty Cycle: Intermittent (under different pressure the continuous working time will also be different).
Weight: 7.6 lbs (3.5kg) Max
Certifications: CE, RoHS, NSF components.
Wiring options: Standard 14 AWG leads

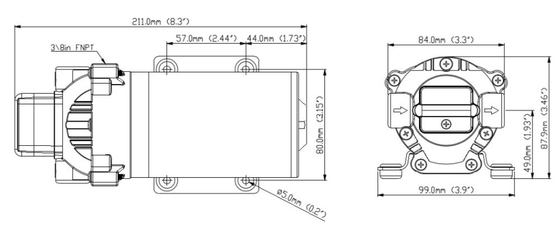

Port Size Inlet/Outlet: 3/8" NPTF
Features & BenefitsPositive displacement pump
Typical ApplicationsWater Treatment/Ro |
PUMPType |
MOTORDuty Cycle |
| Model | Volts | Open Flow (LPM/GPM) |
Cutoff Pressure (Psi/Bar) |
Rated-load Amps (A) |
Max Amps Draw(A) |
Suction (m) |
In/Outlet Port |
Hosing Connectors |
| KDP-60A | 12V DC | 4.6/1.2 | 60/4.2 | 4.0 | 5.0 | 2 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-80A | 12V DC | 5.3/1.4 | 80/5.6 | 4.5 | 6.0 | 2 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-100A | 12V DC | 5.5/1.5 | 100/6.9 | 5.0 | 7.0 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-120A | 12V DC | 5.5/1.5 | 120/8.3 | 5.2 | 8.0 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-130A | 12V DC | 5.5/1.5 | 130/9.0 | 5.3 | 8.5 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-160A | 12V DC | 5.5/1.5 | 160/11.0 | 5.5 | 10.0 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-170A | 12V DC | 5.5/1.5 | 170/11.7 | 5.6 | 10.5 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-60B | 24V DC | 4.6/1.2 | 60/4.2 | 2.5 | 3.0 | 2 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-80B | 24V DC | 5.3/1.4 | 80/5.6 | 2.8 | 3.5 | 2 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-100B | 24V DC | 5.5/1.5 | 100/6.9 | 3.0 | 4.0 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-120B | 24V DC | 5.5/1.5 | 120/8.3 | 3.2 | 4.5 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-130B | 24V DC | 5.5/1.5 | 130/9.0 | 3.3 | 4.8 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-160B | 24V DC | 5.5/1.5 | 160/11.0 | 3.5 | 5.3 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-170B | 24V DC | 5.5/1.5 | 170/11.7 | 3.6 | 5.5 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-120S | 220~240V AC | 5.5/1.5 | 120/8.3 | 0.32 | 0.45 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-130S | 220~240V AC | 5.5/1.5 | 130/9.0 | 0.33 | 0.48 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-160M | 110~120V AC | 5.5/1.5 | 160/11.0 | 0.55 | 1.0 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-160S | 220~240V AC | 5.5/1.5 | 160/11.0 | 0.35 | 0.53 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-170M | 110~120V AC | 5.5/1.5 | 170/11.7 | 0.56 | 1.05 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
| KDP-170S | 220~240V AC | 5.5/1.5 | 170/11.7 | 0.36 | 0.55 | 2.3 | 3/8" NPTF | G3/8"+Φ10mm OD Barb |
|
KEY |
DESCRIPTION |
|
1 |
Motor Assembly |
|
2 |
Piston Set |
|
3 |
Bearing Cover |
|
4 |
Diaphragm |
|
5 |
Check Valve Core Inner |
|
6 |
Check Valve Base |
|
7 |
Check Valve Core Outer |
|
8 |
Upper Housing Assy |
|
9 |
Pump Screw |
| Chemical Resistance Code | Max Temperature Resistance Code |
|
A —— Excellent B —— Good C —— Ordinary × —— Unacceptable － —— Unusable |
1 —— 20℃(68F) 2 —— 40℃(104F) 3 —— 60℃(140F) 4 —— 80℃(176F) 5 —— 100℃(212F) 6 —— 120℃(248F) |
| CHEMICAL | MATERIAL | |||||||
| PP | PTFE | FKM | NBR | EPDM | 95 Ceramic | |||
| Sulfuric Acid | 0-10% | A4 | A6 | A6 | B2 | A4 | A5 | |
| 10-75% | A3 | A6 | A4 | X | A3 | A5 | ||
| 75-100% | B2 | A4 | A4 | － | B2 | A5 | ||
| Nitric Acid | 10% | A3 | A5 | A5 | X | A2 | A5 | |
| 30% | A2 | A6 | A6 | X | A2 | A5 | ||
| 50% | B2 | A3 | A1 | X | X | A5 | ||
| Hydrochloric Acid | 0-25% | A4 | A6 | A3 | B1 | C3 | A5 | |
| 25-40% | A4 | A6 | A2 | X | C2 | A5 | ||
| Hydrofluoric Acid | 10% | B2 | A6 | A3 | X | A3 | － | |
| 30% | C2 | A6 | A4 | － | B3 | － | ||
| 60% | X | A6 | A4 | － | C2 | － | ||
| Acetic Acid | 20% | A2 | A6 | B1 | B2 | A2 | A5 | |
| 80% | B1 | A6 | X | － | － | A5 | ||
| Sodium Hydroxide | 20% | A3 | A6 | B1 | B2 | A3 | － | |
| 50% | A3 | A6 | X | B1 | A4 | － | ||
| Bromine Water | C1 | A3 | A2 | － | X | A1 | ||
| Ethyl Alcohol | A2 | A3 | A3 | X | B3 | A3 | ||
| Acetone | A2 | A6 | X | － | B2 | A3 | ||
| Freon 12 | X | A6 | A1 | X | B1 | A4 | ||
| Aluminum Chloride | A4 | A6 | A5 | B4 | A4 | A4 | ||
| Ammonia Liquid | A1 | A6 | C1 | B4 | B3 | A3 | ||
| Aqua Regia | C2 | A5 | B2 | － | C2 | A4 | ||
| Formaldehyde | A4 | A6 | A4 | X | A4 | A4 | ||
| Gasoline | X | A6 | B3 | B3 | X | A4 | ||
| Kerosene | A1 | A6 | A1 | B1 | X | A4 | ||
| Methyl Alcohol | A3 | A6 | B2 | B4 | A3 | A5 | ||
| Toluene | C1 | A4 | B1 | － | X | A5 | ||
| Trichloroethylene | C1 | A6 | A1 | － | X | A4 | ||
| Xylene | X | A6 | B1 | － | X | A5 | ||
| Nitric Acid Anhydrous | C1 | A3 | A1 | － | X | A5 | ||
| Oleum | X | A6 | A4 | － | X | A5 | ||
| Potassium Hydroxide | A4 | A6 | B1 | C2 | A5 | － | ||
Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
