Product Details:
Payment & Shipping Terms:
|
| Theory: | Centrifugal Pump | Structure: | Single-stage Pump |
|---|---|---|---|
| Usage: | Water | Power: | Electric |
| Standard Or Nonstandard: | Nonstandard | Fuel: | Electric Power, Solar, Battery |
| Pressure: | Low Pressure | Application: | Water |
Good flow rate, continuously rated pump
8.5 gpm (32 lpm) at 10ft (3m) total head
Self -priming up to 4ft (1.2m) allows
Mounting above wet bilges

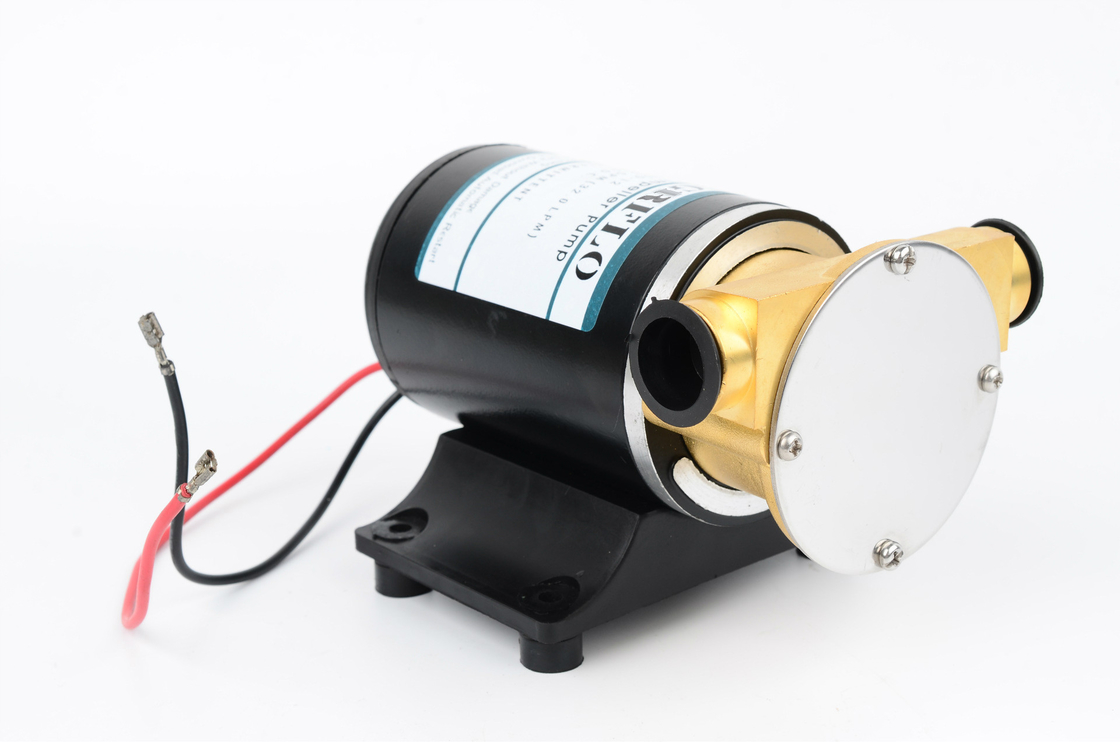

Shower debris presents no problem to this bronze bodied, flexible impeller design
Simple design means fewer wearing parts-all user serviceable
Complies with USCG 183.410 and ISO 8846
MARINE (ignition Protection)
ISO 8849 MARINE (Bilge Pump Standard)
|
Features & Benefits Typical Applications |
PUMP |
MOTOR |
| Key | Description | Quantity |
| 1 | Screw 1 | 4 |
| 2 | Stainless Stell Shell | 1 |
| 3 | Impeller | 1 |
| 4 | Oil-Seal | 1 |
| 5 | O Ring | 1 |
| 6 | Pump Head | 1 |
| 7 | Motor | 1 |
| 8 | Baste Plate Assembly | 1 |
| 9 | Screw 2 | 2 |
| 10 | Rubber Feet | 4 |
| Model | GPM/LPM | Dimensions | Impeller | Ports | Lead | Molded | Voltage |
Amps Draw(A) |
| KIP-3200-12 | 8.5/32.0 | 8.46" x 5.31" x 4.33" 215 x 135 x 110mm |
Rubber & copper | 3/4" FNPT | Yes | N/A | 12V | 7.0 |
| KIP-3200-24 | 8.5/32.0 | 8.46" x 5.31" x 4.33" 215 x 135 x 110mm |
Rubber & copper | 3/4" FNPT | Yes | N/A | 24V | 3.5 |
| Chemical Resistance Code | Max Temperature Resistance Code |
|
A —— Excellent B —— Good C —— Ordinary × —— Unacceptable － —— Unusable |
1 —— 20℃(68F) 2 —— 40℃(104F) 3 —— 60℃(140F) 4 —— 80℃(176F) 5 —— 100℃(212F) 6 —— 120℃(248F) |
| CHEMICAL | MATERIAL | |||||||
| PP | PTFE | FKM | NBR | EPDM | 95 Ceramic | |||
| Sulfuric Acid | 0-10% | A4 | A6 | A6 | B2 | A4 | A5 | |
| 10-75% | A3 | A6 | A4 | X | A3 | A5 | ||
| 75-100% | B2 | A4 | A4 | － | B2 | A5 | ||
| Nitric Acid | 10% | A3 | A5 | A5 | X | A2 | A5 | |
| 30% | A2 | A6 | A6 | X | A2 | A5 | ||
| 50% | B2 | A3 | A1 | X | X | A5 | ||
| Hydrochloric Acid | 0-25% | A4 | A6 | A3 | B1 | C3 | A5 | |
| 25-40% | A4 | A6 | A2 | X | C2 | A5 | ||
| Hydrofluoric Acid | 10% | B2 | A6 | A3 | X | A3 | － | |
| 30% | C2 | A6 | A4 | － | B3 | － | ||
| 60% | X | A6 | A4 | － | C2 | － | ||
| Acetic Acid | 20% | A2 | A6 | B1 | B2 | A2 | A5 | |
| 80% | B1 | A6 | X | － | － | A5 | ||
| Sodium Hydroxide | 20% | A3 | A6 | B1 | B2 | A3 | － | |
| 50% | A3 | A6 | X | B1 | A4 | － | ||
| Bromine Water | C1 | A3 | A2 | － | X | A1 | ||
| Ethyl Alcohol | A2 | A3 | A3 | X | B3 | A3 | ||
| Acetone | A2 | A6 | X | － | B2 | A3 | ||
| Freon 12 | X | A6 | A1 | X | B1 | A4 | ||
| Aluminum Chloride | A4 | A6 | A5 | B4 | A4 | A4 | ||
| Ammonia Liquid | A1 | A6 | C1 | B4 | B3 | A3 | ||
| Aqua Regia | C2 | A5 | B2 | － | C2 | A4 | ||
| Formaldehyde | A4 | A6 | A4 | X | A4 | A4 | ||
| Gasoline | X | A6 | B3 | B3 | X | A4 | ||
| Kerosene | A1 | A6 | A1 | B1 | X | A4 | ||
| Methyl Alcohol | A3 | A6 | B2 | B4 | A3 | A5 | ||
| Toluene | C1 | A4 | B1 | － | X | A5 | ||
| Trichloroethylene | C1 | A6 | A1 | － | X | A4 | ||
| Xylene | X | A6 | B1 | － | X | A5 | ||
| Nitric Acid Anhydrous | C1 | A3 | A1 | － | X | A5 | ||
| Oleum | X | A6 | A4 | － | X | A5 | ||
| Potassium Hydroxide | A4 | A6 | B1 | C2 | A5 | － | ||
Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
