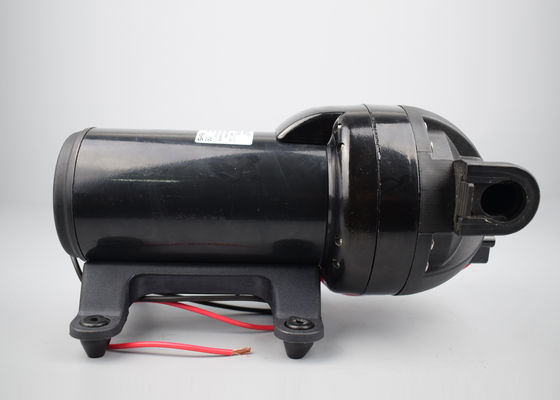

Large Image :  FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series

Product Details:
Place of Origin: China
Brand Name: FLOWEXPERT
Certification: CE;RoHS
Model Number: KDP-200 series
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 60*30*25 cm; 25kg
Delivery Time: 3-15days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 5000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: Electric Power, Solar, Battery
Pressure: High Pressure Application: Yatch, Caravan, RV/Marine/Industry



FLOWEXPERTTM Automatic Pressure Control High Pressure 200PSI Diaphragm Water pump High Flow 20LPM

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 0

APPLICATIONS



  • Diaphragm pump main for Marine fresh or salt water wash down installation.
  • Other uses may include 12V DC pressurized water system in cabins.
  • This pump may be used for general water transfer & light corrosivity chemical liquid transfer usage.

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 1

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 2



FEATURES



FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 3 Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes.

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 3 Snap–in Port Fittings.

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 3 Soft Noise Absorbing Mounts

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 3 Built-in Bypass: Less Pulsation

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 3 Corrosion Resistant Materials

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 3 Self-priming and Can run dry for extended periods of time without damage

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 3 Ball bearing drive throughout pump and motor assures longer pump life.

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 3 Excellent self-priming capability.

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 3 Powerful, permanent magnet motor with low current draw and long life brushes.

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 3 Meets ISO 8846 (Ignition protection)



SPECIFICATIONS

Body of diaphragm pump Glass Filled Nylon
Check valve EPDM & VITION all are available, five chamber pump.
Diaphragm TPV( Stantoprene)
Ports 3/4" Female Thread, 1/2"barbed fitting Included
Voltage 12/24VDC 110-120/220-240VAC Voltage are all available
Amp draw Max.15.a(amp) for 12v, Max.8.a(amp) for 24v,
Pump design: 5 Chamber Diaphragm
Motor Type Permanent magnet type
Self priming 3m vertical lift
Max.Pressure 200psi (13.80Bar)
Liquids Clean water, sea water & light corrovisity chemical liquids



Model Volts(V) Flow Max. Pressure Motor Power  Packing Size N.W/G.W
V lpm/gpm psi/bar W (mm) Kg
KDP-10200 12V 24V DC; 110-120V, 220-240V AC 10/2.6 200/13.8 180 240*135*138 3.05/3.25kg
KDP-20200 12V 24V DC; 110-120V, 220-240V AC 20/5.3 200/13.8 360 240*135*138 3.35/3.65kg
KDP-12150 12V 24V DC; 110-120V, 220-240V AC 12/3.2 150/10.0 200 240*135*138 3.05/3.25kg
KDP-20120 12V 24V DC; 110-120V, 220-240V AC 20/5.3 120/8.3 360 240*135*138 3.05/3.25kg
KDP-20100 12V 24V DC; 110-120V, 220-240V AC 20/5.3 100/6.9 320 240*135*138 3.05/3.25kg
KDP-2065 12V 24V DC; 110-120V, 220-240V AC 20/5.3 65/4.5 200 240*135*138 3.05/3.25kg
KDP-2050 12V 24V DC; 110-120V, 220-240V AC 20/5.3 50/3.5 200 240*135*138 3.05/3.25kg
KDP-2045 12V 24V DC; 110-120V, 220-240V AC 20/5.3 45/3.1 240 240*135*138 3.05/3.25kg



PRESSURE-FLOW CURVE



KDP-2045

FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 13



FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 14



FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 15



IMAGES





FLOWEXPERT Automatic Pressure Control High Flow Diaphragm Pump KDP-200 series 16







CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
