FLOWMONSTER DS series High Pressure Triplex Plunger Pump 12-72LPM 100-500Bar/1450-5075Psi

Name: FLOWMONSTER DS series High Pressure Triplex Plunger Pump 12-72LPM 100-500Bar/1450-5075Psi
Brand: FLOWMONSTER
SKU: DS
Price: 500 USD
Availability: InStock
Rating: 5 (161 reviews)

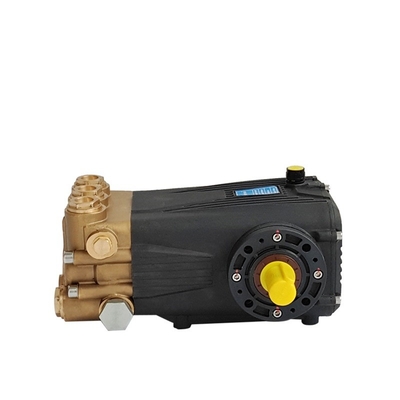

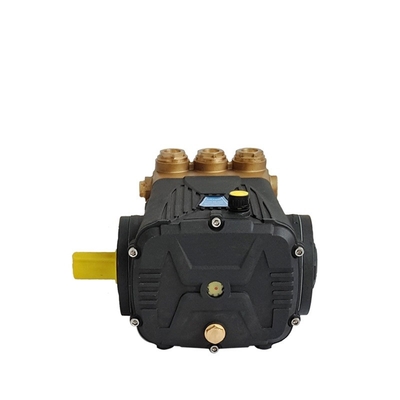

Large Image : FLOWMONSTER DS series High Pressure Triplex Plunger Pump 12-72LPM 100-500Bar/1450-5075Psi

Product Details:

Place of Origin:	CN
Brand Name:	FLOWMONSTER
Certification:	CE, RoHS
Model Number:	DS

Payment & Shipping Terms:

Minimum Order Quantity:	1-100pcs
Price:	500-1200pcs
Packaging Details:	Carton
Delivery Time:	10-30 working days
Payment Terms:	D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Material:	Brass	Theory:	Plunger Pump

FLOWMONSTER DS High Pressure Triplex Plunger Pump 12-72LPM 100-500Bar/1450-5075Psi

FLOWMONSTER DS series High Pressure Triplex Plunger Pump 12-72LPM 100-500Bar/1450-5075Psi 0

Specifications Details :

Folw : 12-72 L/min , 3.17-19.02 gpm
Pressure : 100-500 bar , 1450-7250 psi
Power : 11-22 kw , 15-30 hp
Speed : 1450 rpm

Applications:

Commercial Contractor Cleaning
Oil & Gas
Misting, Cooling & Fogging
Agriculture & Food Processing
Process Industries

FLOWMONSTER DS series High Pressure Triplex Plunger Pump 12-72LPM 100-500Bar/1450-5075Psi 1

DS Series High Pressure Plunger Pump 12-72 L/Min 100-500Bar

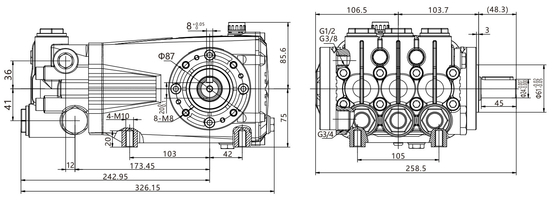

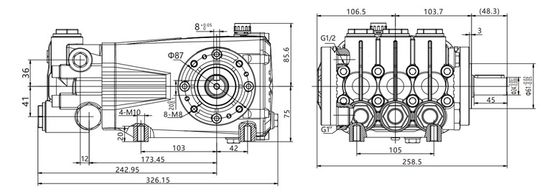

Model	Flow		Pressure		Power		Speed	Plunger Dia	Stroke	DIMENSIONS	Peso Weight
	L/min	gpm	bar	psi	hp	kw	rpm	mm	mm	mm	kg
DS1240	12	3.17	400	5800	15	11	1450	18	11	326258161	16
DS1640	16	4.23	400	5800	20	15	1450	18	15	326258161	16
DS2150	21	5.46	500	7250	20	15	1450	18	20	326258161	17
DS2235	22	5.81	350	5075	30	22	1450	18	20	326258161	17
DS3025	30	7.92	250	3625	20	15	1450	28	11	326258161	18
DS4020	40	10.57	200	2900	20	15	1450	28	15	326258161	18
DS5015	50	13.21	150	2175	20	15	1450	28	20	326258161	19
DS7010	70	18.49	100	1450	20	15	1450	32	20	326258161	20
DS7215	72	19.02	150	2175	30	22	1450	32	20	326258161	20
