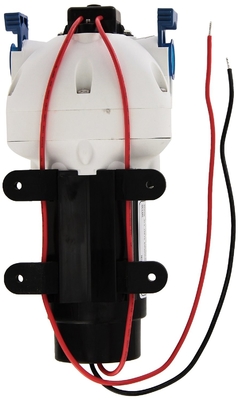

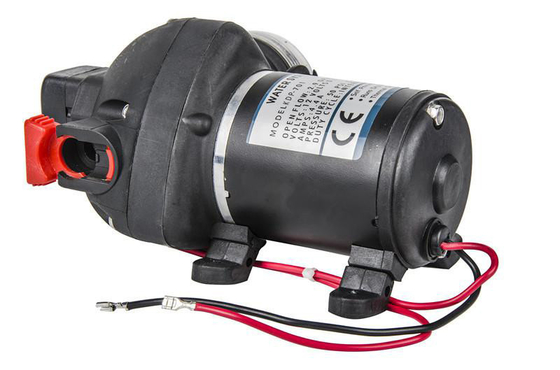

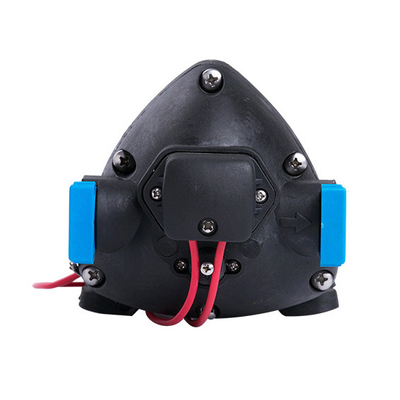

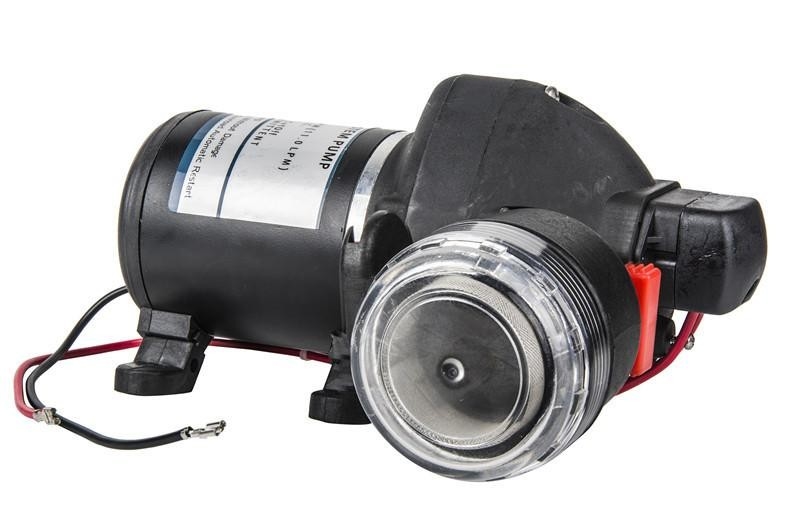

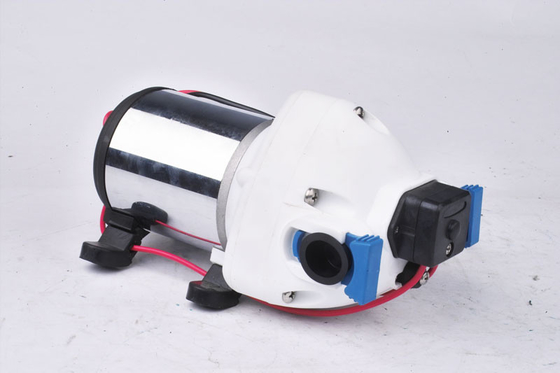

FLOWMASTER Automatic Water System Pump SDP-70 DC Series

FLOWMASTER Automatic Water System Pump SDP-70 DC Series
FLOWMASTER Automatic Water System Pump SDP-70 DC Series FLOWMASTER Automatic Water System Pump SDP-70 DC Series FLOWMASTER Automatic Water System Pump SDP-70 DC Series FLOWMASTER Automatic Water System Pump SDP-70 DC Series FLOWMASTER Automatic Water System Pump SDP-70 DC Series

Large Image :  FLOWMASTER Automatic Water System Pump SDP-70 DC Series

Product Details:
Place of Origin: China
Brand Name: FLOWMASTER
Certification: CE;RoHS
Model Number: KDP-70 series
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 60*30*25 cm; 25kg
Delivery Time: 3-15days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 5000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: Electric Power
Pressure: High Pressure Application: Water



FLOWMASTERTM Automatic Water System Pump SDP-70 Series Three Chamber Positive Displacement with Long Life DC Motor





SPECIAL FEATURES

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 0 Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes.

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 0 Snap–in Port Fittings.

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 0 Soft Noise Absorbing Mounts

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 0 Built-in Bypass: Less Pulsation

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 0 Corrosion Resistant Materials

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 0 Self-priming and Can run dry for extended periods of time without damage

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 0 Ball bearing drive throughout pump and motor assures longer pump life.

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 0 Excellent self-priming capability.

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 0 Powerful, permanent magnet motor with low current draw and long life brushes.

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 0 Meets ISO 8846 (Ignition protection)



SPECIFICATIONS

  • Flow Rate: 6.0 to 11.0 LPM Nominal
  • Pump Design: Three chamber diaphragm design
  • Motor: Permanent Magnet Motor
  • Voltage: 12 & 24 Volt DC, 115 & 230 Volt AC
  • Pressure Switch: Adjustable From 25 to 100 PSI
  • Self-Priming: Up to 9 ft. (2.7 m) Vertical Height
  • Duty Cycle: Intermittent
Model Volts Open Flow
gpm (lpm)
Pressure
on / off
Amps @
10 psi (0.7 bar)
Strainer
Included
BYPASS Packing Size
(mm)
N.W / G.W
(kg)
SDP-701 12 VDC 2.9 (11) 60 psi (4.2 bar) 4.4 YES YES 355×130×130 1.90 / 2.40
SDP-702 12 VDC 2.9 (11) 40 psi (2.8 bar) 4.4 YES YES 355×130×130 1.90 / 2.40
SDP-703 12 VDC 2.0 (8) 60 psi (4.2 bar) 3.5 YES YES 355×130×130 1.90 / 2.40
SDP-704 24 VDC 2.9 (11) 60 psi (4.2 bar) 2.2 YES YES 355×130×130 1.90 / 2.40
SDP-705 24 VDC 2.9 (11) 40 psi (2.8 bar) 2.2 YES YES 355×130×130 1.90 / 2.40
SDP-706 24 VDC 2.0 (8) 60 psi (4.2 bar) 1.7 YES YES 355×130×130 1.90 / 2.40
SDP-70M 115 VDC 2.9 (11) 60 psi (4.2 bar) 0.8 YES YES 390×130×130 2.15 / 2.55
SDP-70S 230 VDC 2.9 (11) 60 psi (4.2 bar) 0.45 YES YES 390×130×130 2.15 / 2.55

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 10

DIMENSIONS

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 11



INSTALLATION

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 12



WIRING

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 13



TYPICAL APPLICATIONS

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 14



EXPLODED VIEW



FLOWMASTER Automatic Water System Pump SDP-70 DC Series 15

FLOWMASTER Automatic Water System Pump SDP-70 DC Series 16

CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
