FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI

FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI

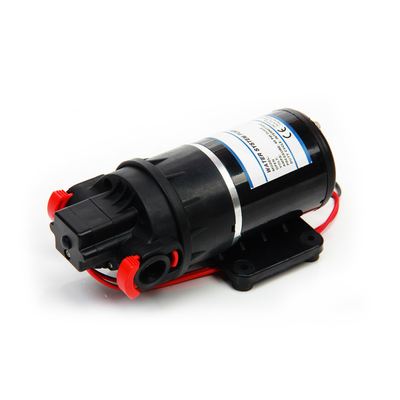

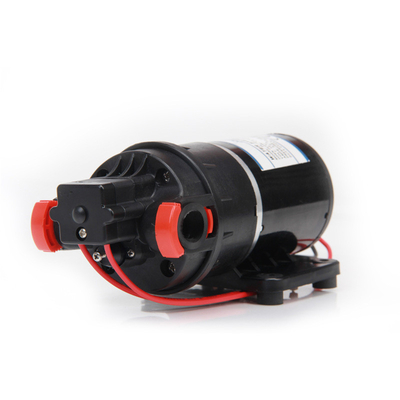

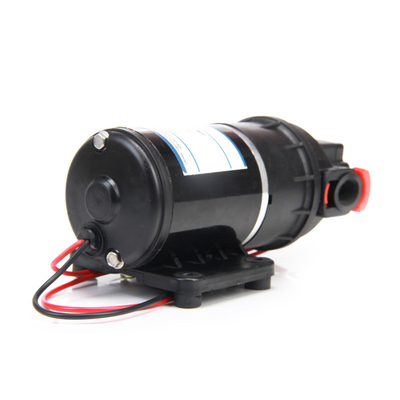

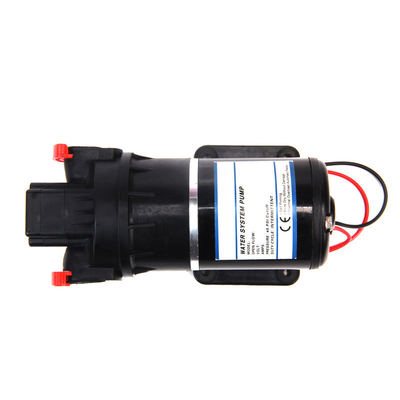

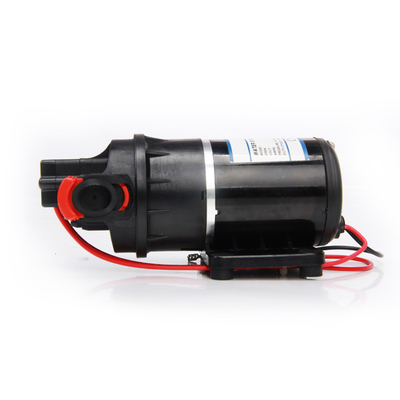

FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI

Large Image :  FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI

Product Details:
Place of Origin: China
Brand Name: FLOWMASTER
Certification: CE;RoHS
Model Number: SDP-50 series
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 60*30*25 cm; 25kg
Delivery Time: 3-15days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 5000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: Electric Power
Pressure: High Pressure Application: Water



FLOWMASTERTM Automatic Water System Pump 2 Chamber with High Suction Capacity 6.0LPM 40PSI

FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 0

FLOWMASTERTM SDP-50 series Pumps are designed for a wide range of applications and are constructed from a selection of materials suitable for handling a broad range of chemicals. KDP-50 series of diaphragm pumps are self-priming and can be run dry without harm. They are intended for intermittent duty cycles but can be run continuously for short periods of time. The higher the duty cycle the shorter the expected life of the pump.

Everything from the back flow preventer, check valves, bearings and diaphragm assembly to the motor, have been designed to make this truly the most advanced and reliable diaphragm pump available. Higher efficiency of the pump is evident in the longer life of the motor pump unit. The new diaphragm design combined with the new valves makes the pump capable of pulling higher dry vacuum. SDP-50 series are available in various performance ranges, voltages and with a choice of elastomers, making it easily adaptable to a diverse range of applications.

Typical pump uses are liquid transfer, spraying, cooling, circulation, filtration and dispensing.



SPECIAL FEATURES

FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Self priming up to 8 feet (2.4 m)
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Can run dry without damage and handle liquids up to 140° F (60° C)
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Chemical resistant material
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Internal bypass standard
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Built-in back flow preventer
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Heavy duty ball bearing drive system



SPECIFICATIONS

FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Pump: Positive Displacement two piston design
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Flow Rate: 1.6 GPM (6.00 L/min) - 2.2 GPM (8.32 L/min) Nominal
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Pressures: Up to 100 PSI (6.89 bar)
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Motor: Permanent Magnet with solid state rectifier
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Voltages: 12 & 24 V DC, 115 & 230 V AC
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Cycle: 50/60 hertz for AC models
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Dry Vacuum: Up to 8 feet (2.4 M)
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 14 Pressure Switch: Adjustable From 15 to 100 PSI
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 1 Maximum Operating Pressure: 100 PSI (6.8 bar)
FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 14 Duty Cycle: Intermittent





STANDARD PUMP CONFIGURATIONS



Model Volts
dc
Open Flow
gpm (lpm)
Pressure
on / off
Amps @
10 psi (0.7 bar)
Strainer
Included
BYPASS Packing Size
(mm)
N.W / G.W
(kg)
SDP - 501 12 Vdc 1.6 (6.0) 40 psi (2.8 bar) 3.0 YES YES 335×130×110 2.10 / 2.40
SDP - 502 24 Vdc 1.6 (6.0) 40 psi (2.8 bar) 1.6 YES YES 335×130×110 2.10 / 2.40
SDP - 503 230 Vac 1.6 (6.0) 40 psi (2.8 bar) 0.7 YES YES 335×130×110 2.10 / 2.40



DISASSEMBLY DRAWINGS



FLOWMASTER Automatic Water System Pump SDP-50 Series 12V 24V DC Electric Diaphragm Pump 6L/min 40PSI 17



CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
