FLOWMONSTER KBM-F3 Triplex Plunger Road Washing Pump for washer 12-20LPM 60-180BAR with Pressure Switch

Name: FLOWMONSTER KBM-F3 Triplex Plunger Road Washing Pump for washer 12-20LPM 60-180BAR with Pressure Switch
Brand: FLOWMONSTER
SKU: KBM-F3
Price: 500 USD
Availability: InStock
Rating: 4.6 (167 reviews)

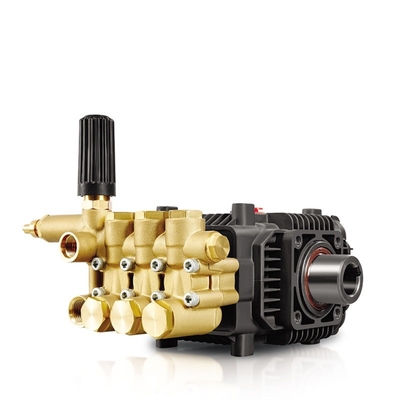

Large Image : FLOWMONSTER KBM-F3 Triplex Plunger Road Washing Pump for washer 12-20LPM 60-180BAR with Pressure Switch

Product Details:

Place of Origin:	CN
Brand Name:	FLOWMONSTER
Certification:	CE, RoHS
Model Number:	KBM-F3

Payment & Shipping Terms:

Minimum Order Quantity:	1-100pcs
Price:	500-1200pcs
Packaging Details:	Carton
Delivery Time:	10-30 working days
Payment Terms:	D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Material:	Brass	Theory:	Plunger Pump

FLOWMONSTER KBM-F3 Triplex Plunger Road Washing Pump for washer 12-20LPM 60-180BAR with Pressure Switch

FLOWMONSTER KBM-F3 Triplex Plunger Road Washing Pump for washer 12-20LPM 60-180BAR with Pressure Switch 0

Specifications Details :

Folw : 11.07-20 L/min , 2.92-5.05 gpm
Pressure : 60-180 bar , 870-2610 psi
Power : 2.2-5.5 kw , 3-7.5 hp
Speed : 1450 rpm

Applications:

car washer
misting machine
Agriculture & Food Processing
Misting, Cooling & Fogging
Commercial Contractor Cleaning

FLOWMONSTER KBM-F3 Triplex Plunger Road Washing Pump for washer 12-20LPM 60-180BAR with Pressure Switch 1

KBM 1450rpm C Version Dia 28mm High Pressure Pump
Model	Flow		Pressure		Power		Speed	Plunger Dia	Stroke
Model	l/min	gpm	bar	psi	hp	kw	rpm	mm	mm
KBM1210	12	3.17	100	1450	3	2.2	1450	20	8.5
KBM1212	12	3.17	120	1740	4	3	1450	20	8.5
KBM1216	12	3.17	160	2320	5.5	4	1450	20	8.5
KBM1325	13	3.43	250	3625	10	7.5	1450	20	8.5
KBM1508	15	3.96	80	1160	3	2.2	1450	20	12
KBM1510	15	3.96	100	1450	4	3	1450	20	12
KBM1514	15	3.96	140	2030	5.5	4	1450	20	12
KBM1518	15	3.96	180	2610	7.5	5.5	1450	20	12
KBM1525	15	3.96	250	3625	10	7.5	1450	20	12
KBM1910	19	5.01	100	1450	5.5	4	1450	20	13
KBM2006	20	5.28	60	870	3	2.2	1450	20	14
KBM2008	20	5.28	80	1160	4	3	1450	20	14
KBM2010	20	5.28	100	1450	5.5	4	1450	20	14
KBM2015	20	5.28	150	2175	7.5	5.5	1450	20	14
