FLOWMONSTER HT-N High Pressure Hot Temperature water Pump 11-30LPM 100-160BAR/1450-2320PSI

Name: FLOWMONSTER HT-N High Pressure Hot Temperature water Pump 11-30LPM 100-160BAR/1450-2320PSI
Brand: FLOWMONSTER
SKU: HT-N
Price: 500 USD
Availability: InStock
Rating: 4.8 (157 reviews)

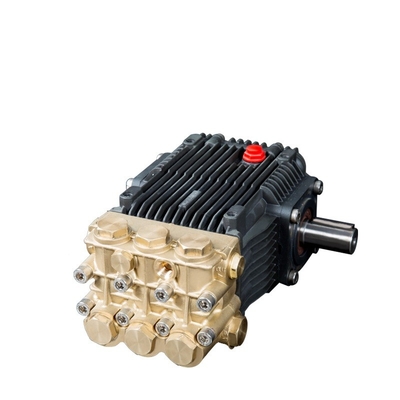

Large Image : FLOWMONSTER HT-N High Pressure Hot Temperature water Pump 11-30LPM 100-160BAR/1450-2320PSI

Product Details:

Place of Origin:	CN
Brand Name:	FLOWMONSTER
Certification:	CE, RoHS
Model Number:	HT-N

Payment & Shipping Terms:

Minimum Order Quantity:	1-100pcs
Price:	500-1200pcs
Packaging Details:	Carton
Delivery Time:	10-30 working days
Payment Terms:	D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Material:	Brass	Theory:	Plunger Pump

FLOWMONSTER HT-N High Pressure Hot Temperature water Pump 11-30LPM 100-160BAR/1450-2320PSI

The HT series high temperature pumps are designed to withstand the extra high temperature found in some fluid solutions in applications, such as carpet cleaning, boiler feed, hot-water pressure washers and other industrial high temperature applications. These pumps have a flow range up to 30 L/min.

Features :

Ceramic Plunger
Hardened, Tempered Steel Shaft
Special Seal Kit
Max. 85 °C

Applications:

Truck Mounted Carpet Cleaning
Oil Rig / Oil Staion/ Oil Refinery Cleaning
In-Plant Cleaning & Sanitizing
Vehicle Cleaning
Municipal Projects Cleaning

Model	Flow		Pressure		Power		Speed	Plunger Dia	Stroke	Temperature
Model	l/min	gpm	bar	psi	hp	kw	rpm	mm	mm	°C
HT1210	11.58	3.06	100	1450	3	2.2	1450	22	7	85
HT1410	14.06	3.71	100	1450	3	2.2	1450	22	8.5	85
HT1610	16.54	4.37	100	1450	4	3	1450	22	10	85
HT2310	23.15	6.12	100	1450	5.5	4	1450	22	14	85
HT3010	29.89	7.9	100	1450	7.5	5	1450	22	14	85
HT2316	23.15	6.12	160	2320	7.5	5	1450	22	14	85
