Detailed Product Description
Material: Brass Theory: Plunger Pump

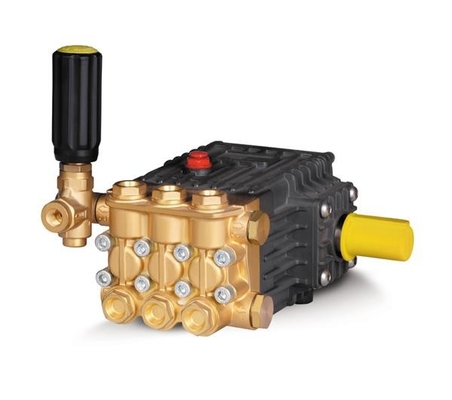

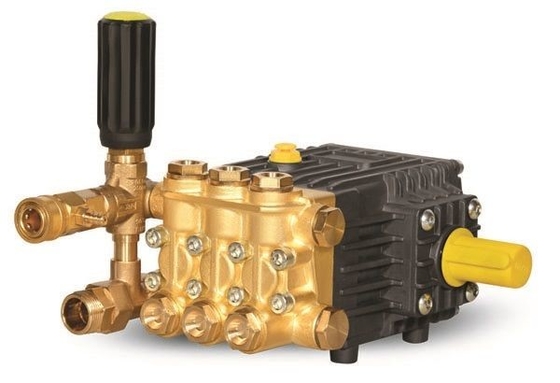

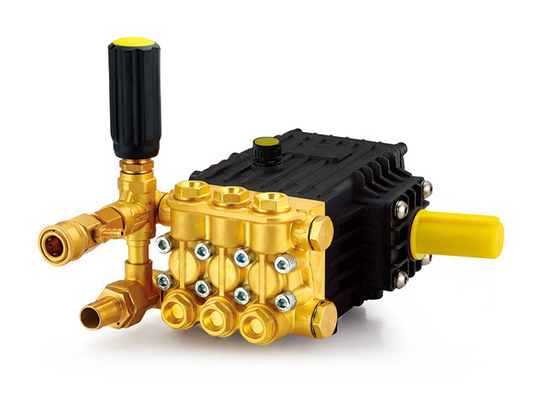

FLOWMONSTER belt driven washer pump 3WZ-1803NA high pressure triplex plunger pump 150Bar 11LPM

FLOWMONSTER belt driven washer pump 3WZ-1803NA high pressure triplex plunger pump 150Bar 3GPM 0

Product Details:

Forged brass cylinder;

Anodized crankcase;

Ceramic plunger;

Water seal with good quality;

Fixed rated chemical injector;

Built-in self suction unloader;

Pressure adjustable;

In-line water inlet filter;

Quick connect outlet;



Optional Spare parts:

Pressure gauge;

Thermal relief valve;

Adjustable chemical injector;



Parameters:

Model 3WZ-1803NA 3WZ-1807NA 3WZ-1810NA 3WZ-1812NA 3WZ-1814NA 3WZ-2014NA
Pressure 2175PSI 150BAR 3190PSI 220BAR 3625PSI 250BAR

3190PSI

220BAR

3625PSI 250BAR 2900PSI 200BAR
Flow Rate 0.8GPM
3.0L/MIN
2.3GPM
8.0L/MIN
2.9GPM
11.0L/MIN
3.6GPM
14.0L/MIN
4.0GPM
15.0L/MIN
5.3GPM
20L/MIN
Speed(R.P.M.) 1450 1450 1450 1450 1450 1450
Power(KW) 1.1 4.0 5.5 5.5 7.5 7.5
Crank Bore(MM) 18 18 18 18 18 18
Shaft Dia.(MM) 24 24 24 24 24 24
G.W.(KGS) 8.5 8.5 8.5 8.5 8.5 8.5
Dimension
L*W*H(MM)
320*250*240 320*250*240 320*250*240 320*250*240 320*250*240 320*250*240

FLOWMONSTER belt driven washer pump 3WZ-1803NA high pressure triplex plunger pump 150Bar 3GPM 1FLOWMONSTER belt driven washer pump 3WZ-1803NA high pressure triplex plunger pump 150Bar 3GPM 2

1. The pump should be installed on a flat base less than 15 degrees to ensure the best lubrication conditions

2. Confirm the inlet size of the high-pressure pump piping. The inlet pipe diameter should be 1.5-2 times the inlet size of the pump. The inlet and outlet of the pump must be equipped with hoses to avoid pressure and fluctuations generated by the system. It is best to install accumulators to avoid bending of pipes.

3. The water supply pressure should be 1.5-8kg / cm2. The water supply temperature is below 70 degrees. The water supply system of the high-pressure pump must avoid the entry of air to ensure that the pump parts are not damaged.
Direction of rotation: The direction of rotation of the high-pressure pump is the direction in which the top of the pulley must face the pump head.

4. Before starting the motor-pump system, the following must be done
1). Check whether the crankcase lubricating oil is normal. If the oil level indicator of the gear box has only one engraved line, the oil level cannot be lower than the engraved line, but not higher than the engraved line 5mm. If the oil level indicator of the gear box has two Each line, the oil level is between the two lines.
2) Confirm that the valves of all pipes have been opened, and the medium can flow into the inlet of the pump and exhaust the air inside the system.
3) The operation of the high-pressure pump is not allowed to exceed the specified pressure, flow and speed.
4) Before spraying, the high-pressure nozzle should confirm whether the spray direction is safe. If there are unsafe factors, they should be eliminated in time to ensure safe production.

5. In order to remove the water in the pump to facilitate the placement in the freezing point environment, the pump can run for no more than 10 seconds under the condition of no water inlet.

6. For the system where the overflow valve is installed, the overflow pipe must be a hose. The overflow pipe should not be connected to the water inlet of the pump, but should be connected to the water tank or sewer.

7. When used for water storage tank, the suction line should use a hose of less than 3 meters, and the water level should be set higher than the height of the pump. If the water supply pressure does not reach the required pressure, it is recommended to use a booster pump.

8. Clean water should be used for the water supply, and a filter should be used on the supply line to prevent the inhalation of foreign objects.

9. Before operating the high-pressure pump, loosen the pressure regulating valve, and then gradually increase the pressure as needed after operation.

10. Lubricating oil should use SAE20W-50 or the same level of lubricating oil.

11. Lubricating oil should be replaced after 50 hours of initial use, and every 500 hours thereafter.

12. The water inlet filter should be regularly checked and cleaned.

13. All moving parts of the plunger pump must not be in a dry state.

14. High-pressure pumps are not allowed to use acidic, alkaline or corrosive liquids.


Troubleshooting



Malfunction

Cause Solution



The pump is running but does not absorb water



problem with the water supply

Open the water supply valve

Confirm whether the water supply line is in a folded state

Do not allow air to enter the water supply line
The pump is running but fails to meet the pressure requirements
Water supply line is blocked

Air in the pump

One-way valve fails or foreign matter enters

Pressure regulating valve malfunctions or foreign matter enters

Nozzle failure

Seal failure
Check the suction line

Check the suction line

Wash or replace

Wash or replace

replace

replace
1. Sudden vibration when the pump is running

2. Unstable pressure / pulsation, no pressure operation
Inhaled air

One-way valve fails or foreign matter enters

Damaged O-ring at the lower end of the check valve

Check valve damaged overall

Component wear

The inlet pipe is blocked and the water intake is blocked


Idling

Accumulator without pressure
Check the suction line

Clean safety valve and replace

Replace O-ring

Replace check valve

Replace components

Check whether the system is clogged and air leaks, the pump inlet pipe size is appropriate

Check whether the inlet pipe is blocked and the size is appropriate

Repressurize or replace the accumulator
Pressure drop, sudden pressure drop in the pipeline
Seal wear

Valve spring broken

Worn or damaged nozzle

Drain valve blocked

Worn or damaged hose

Due to throttling, the pump is idling

Uninstall
Replace the seal assembly

Replace the spring

Replace the nozzle

Cleaning valve assembly

Repair / Replace

Check the inlet pipe at the entrance

Check if it works
Running noise
Bearing wear

Idling
Replace the bearing and refuel

Check whether the inlet pipe is blocked and the size is appropriate
Excessive unloading of overflow saliva
Plunger wear

Component / seal wear

Too much vacuum

Plunger break

Inlet pressure is too high
Replace plunger

Adjust or replace the seal assembly

Reduce the vacuum on the suction side

Replace plunger

Reduce inlet pressure
The crankcase temperature is too high
Wrong choice of lubricant

Crankcase oil volume is not suitable
Choose the right lubricant

Adjust the oil level to the appropriate amount
Crankcase water intake
Humidity is too high

Seal wear
Reduce oil seal interval

Replace the seal
