FLOWMONSTER gasoline/petrol engine drive washer pump 3WZ-1806DA brass high pressure triplex plunger pump 150Bar 13LPM

Name: FLOWMONSTER gasoline/petrol engine drive washer pump 3WZ-1806DA brass high pressure triplex plunger pump 150Bar 13LPM
Brand: FLOWMONSTER
SKU: 3WZ-1806DA
Price: 250 USD
Availability: InStock
Rating: 5 (128 reviews)

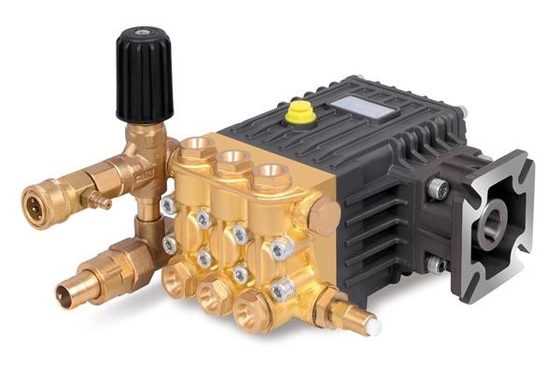

Large Image : FLOWMONSTER gasoline/petrol engine drive washer pump 3WZ-1806DA brass high pressure triplex plunger pump 150Bar 13LPM

Product Details:

Place of Origin:	CN
Brand Name:	FLOWMONSTER
Certification:	CE, RoHS
Model Number:	3WZ-1806DA

Payment & Shipping Terms:

Minimum Order Quantity:	1-100pcs
Price:	250
Packaging Details:	Carton
Delivery Time:	10-30 working days
Payment Terms:	D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Material:	Brass	Theory:	Plunger Pump
Plunger:	Ceramic

FLOWMONSTER gasoline/petrol/diesel engine drive washer pump 3WZ-1807D1A brass high pressure triplex plunger pump 250Bar 15LPM

FLOWMONSTER gasoline/petrol engine drive washer pump 3WZ-1806DA brass high pressure triplex plunger pump 150Bar 13LPM 0

High quality 150 BAR gasoline power washer pump

Item	3WZ-1806DB-1	3WZ-1806DB-2
Pressure	1740PSI/120BAR	2175PSI/150BAR
Flow Rate	3.3GPM/13.0L/MIN	3.3GPM/13.0L/MIN
Speed (R.P.M.)	3400	3400
Power (HP)	5.5	6.5
Crank Bore (MM)	18	18
Shaft Diameter	19.05MM/ 3/4”	19.05MM / 3/4”
G.W. (KGS)	6.5	6.5
CTN Dimension	322524CM	322524CM

Triplex High Pressure Power Washer Pump 3.1 GPM 2700 psi 6.5 HP 3/4" Shaft fits most of branded gasoline engine.

This pressure washer pump has a forged brass manifold, providing corrosion resistance. The plunger on this pump is ceramic, increasing resistance to pitting and wear, offering a Max Pressure: 3000 PSI, Flow Rate: 3.1 GPM, 3400 RPM with a 6.5 HP.

●High Pressure Triplex Pump 18 Series;

●Max Pressure: 3000 PSI , Flow Rate: 3.1 GPM, 3400 RPM with a 6.5 HP;

●3/4" Shaft;

●Forged Brass manifold provides high strength and corrosion resistance;

●Anodized die case crankcase with large cooling fin for maximum heat dissipation;

●Hardened and precision grinding crankshaft for maximum durability & longer life;

●Ceramic plunger to increase resistance to pitting and wear;

●Strengthened one piece alloy aluminum connecting rod;

●Reinforced pop off valve cage;

●Ball and roller bearing for max life and load distribution;

●In-line water filter;

●Fixed rate detergent injector;

●Over pressurized prevention jam nut;

●Thermal relief valve, easy start valve & pressure relief valve.

FLOWMONSTER gasoline/petrol engine drive washer pump 3WZ-1806DA brass high pressure triplex plunger pump 150Bar 13LPM 4

1. The pump should be installed on a flat base less than 15 degrees to ensure the best lubrication conditions

2. Confirm the inlet size of the high-pressure pump piping. The inlet pipe diameter should be 1.5-2 times the inlet size of the pump. The inlet and outlet of the pump must be equipped with hoses to avoid pressure and fluctuations generated by the system. It is best to install accumulators to avoid bending of pipes.

3. The water supply pressure should be 1.5-8kg / cm2. The water supply temperature is below 70 degrees. The water supply system of the high-pressure pump must avoid the entry of air to ensure that the pump parts are not damaged.

Direction of rotation: The direction of rotation of the high-pressure pump is the direction in which the top of the pulley must face the pump head.

4. Before starting the motor-pump system, the following must be done

1). Check whether the crankcase lubricating oil is normal. If the oil level indicator of the gear box has only one engraved line, the oil level cannot be lower than the engraved line, but not higher than the engraved line 5mm. If the oil level indicator of the gear box has two Each line, the oil level is between the two lines.

2) Confirm that the valves of all pipes have been opened, and the medium can flow into the inlet of the pump and exhaust the air inside the system.

3) The operation of the high-pressure pump is not allowed to exceed the specified pressure, flow and speed.

4) Before spraying, the high-pressure nozzle should confirm whether the spray direction is safe. If there are unsafe factors, they should be eliminated in time to ensure safe production.

5. In order to remove the water in the pump to facilitate the placement in the freezing point environment, the pump can run for no more than 10 seconds under the condition of no water inlet.

6. For the system where the overflow valve is installed, the overflow pipe must be a hose. The overflow pipe should not be connected to the water inlet of the pump, but should be connected to the water tank or sewer.

7. When used for water storage tank, the suction line should use a hose of less than 3 meters, and the water level should be set higher than the height of the pump. If the water supply pressure does not reach the required pressure, it is recommended to use a booster pump.

8. Clean water should be used for the water supply, and a filter should be used on the supply line to prevent the inhalation of foreign objects.

9. Before operating the high-pressure pump, loosen the pressure regulating valve, and then gradually increase the pressure as needed after operation.

10. Lubricating oil should use SAE20W-50 or the same level of lubricating oil.

11. Lubricating oil should be replaced after 50 hours of initial use, and every 500 hours thereafter.

12. The water inlet filter should be regularly checked and cleaned.

13. All moving parts of the plunger pump must not be in a dry state.

14. High-pressure pumps are not allowed to use acidic, alkaline or corrosive liquids.

Troubleshooting

Malfunction	Cause	Solution
The pump is running but does not absorb water	problem with the water supply	Open the water supply valve Confirm whether the water supply line is in a folded state Do not allow air to enter the water supply line
The pump is running but fails to meet the pressure requirements	Water supply line is blocked Air in the pump One-way valve fails or foreign matter enters Pressure regulating valve malfunctions or foreign matter enters Nozzle failure Seal failure	Check the suction line Check the suction line Wash or replace Wash or replace replace replace
1. Sudden vibration when the pump is running 2. Unstable pressure / pulsation, no pressure operation	Inhaled air One-way valve fails or foreign matter enters Damaged O-ring at the lower end of the check valve Check valve damaged overall Component wear The inlet pipe is blocked and the water intake is blocked Idling Accumulator without pressure	Check the suction line Clean safety valve and replace Replace O-ring Replace check valve Replace components Check whether the system is clogged and air leaks, the pump inlet pipe size is appropriate Check whether the inlet pipe is blocked and the size is appropriate Repressurize or replace the accumulator
Pressure drop, sudden pressure drop in the pipeline	Seal wear Valve spring broken Worn or damaged nozzle Drain valve blocked Worn or damaged hose Due to throttling, the pump is idling Uninstall	Replace the seal assembly Replace the spring Replace the nozzle Cleaning valve assembly Repair / Replace Check the inlet pipe at the entrance Check if it works
Running noise	Bearing wear Idling	Replace the bearing and refuel Check whether the inlet pipe is blocked and the size is appropriate
Excessive unloading of overflow saliva	Plunger wear Component / seal wear Too much vacuum Plunger break Inlet pressure is too high	Replace plunger Adjust or replace the seal assembly Reduce the vacuum on the suction side Replace plunger Reduce inlet pressure
The crankcase temperature is too high	Wrong choice of lubricant Crankcase oil volume is not suitable	Choose the right lubricant Adjust the oil level to the appropriate amount
Crankcase water intake	Humidity is too high Seal wear	Reduce oil seal interval Replace the seal
