Material: | Stanless Steel | Theory: | Plunger Pump |
---|

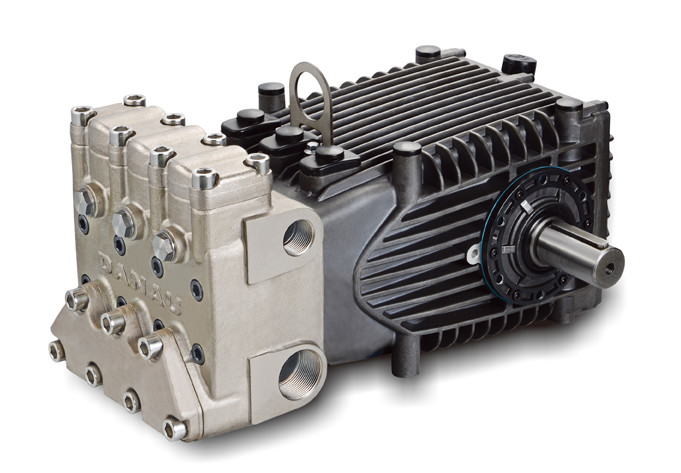

DBH SERIES
RECIPROCATING HIGH PRESSURE
PLUNGER PUMP
FEATURES
Forged stainless steel manifold, symmetrical inlet/outlet for left to right mounting
Die-cast alloy aluminum crankcase, anodized.
Stainless steel plungerwith ceramic coating and precision grinded.
PARKER High-low dual pressure packing, with integrated cooling
High volumetric efficiency checking valve, features spherical sealing areas.
Symmetrical power end with top and bottom mounting holes allows for easy left to right shaft conversion.
Manifold Material optional in STAINLESS 420, DUPLEX(SSD)2205
Applications:Municipal, environmental(water flushing, sewer jetting), petrochemical(oil pressurizing
transferring), mining, sea waterreverse osmosis desalination, food, drink, alcohol, chemical,
pharmaceutical and other industries.
IMPORTANCE

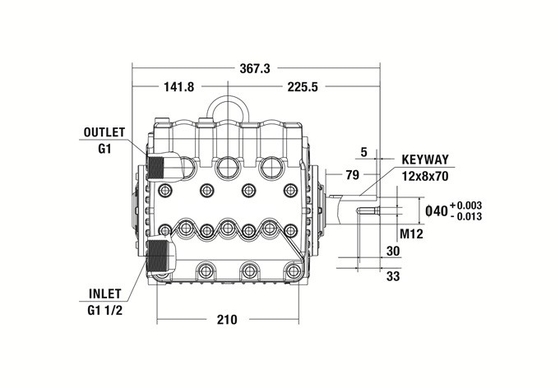

Inlet Port: 1 ½” BSP
Outlet Port: 1”BSP
Oil Bath Capacity:3800ml (half level of oil gauge)
Oil Type: 85W/90 or greater GEAR OIL
Water Inlet Pressure:0-50psi/3.5bar
Max Inlet Water Temp.50°C/122°F
APPLICABLE VALVES
UNLOADER VALVE
Max Pressure: 206bar/3000psi, 2800bar/4060psi
Max Flow: 200LPM/53GPM
Inlet/Outlet/Bypass Port: 1”
Brass forged body, stainless valve core and seat
SAFETY VALVE
Max Pressure: 206bar/3000psi.280bar/4060psi
Max Flow: 200LPM/53GPM
Inlet Port:3/4” Bypass Port: 1/2”
Brass forged body, stainless valve core and seat
VERSIONS

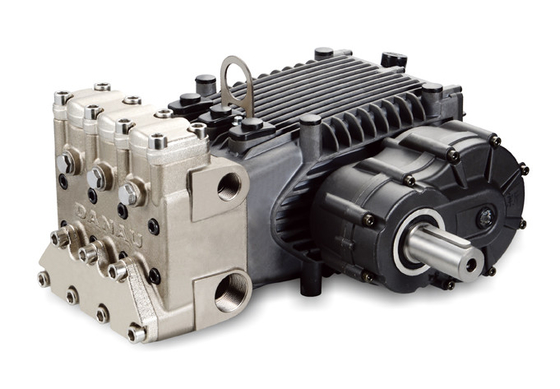

Gearbox reduction version
Aluminum alloy precision die casting housing, anodized.High-grade helical gear.
Reduction ratio: NO.1(2.18:1), NO.2(2.26:1),NO.3(2.94:1)
SPECIFICATIONS
APPLICATIONS
Pump head material - stainless steel 420
Application: municipal, sanitation, petrochemical, mining and other industries
