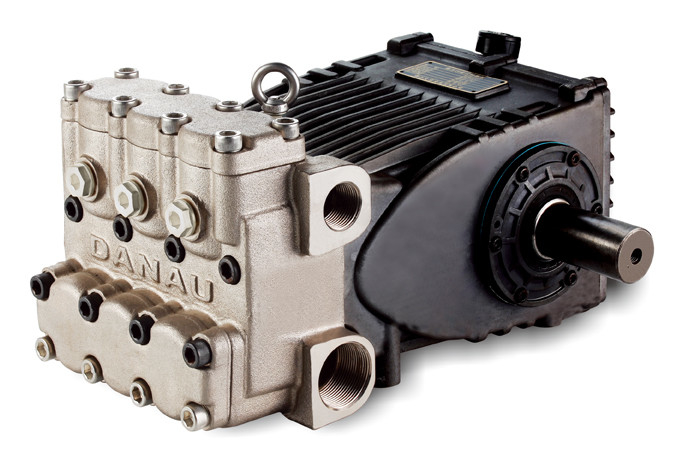

FLOWMONSTER DBJ RECIPROCATING HIGH PRESSURE PLUNGER PUMP 500BAR MAX

DBJ SERIES

RECIPROCATINGHIGH PRESSURE

PLUNGER PUMP

FEATURES

Forged Manifold, offers 3types of material for various applications

Die-cast alloy aluminum crankcase, anodized.

Aluminum forged connecting rod, reinforced with bushing.

Stainless steel plungerwith ceramic coating and precision grinded.

PARKER High-low dual pressure packing, with integrated cooling

High volumetric efficiency checking valve, features spherical sealing areas.

Symmetrical power end allows for easy left to right shaft conversion.

Manifold Material optional in BRASS,STAINLESS 420,DUPLEX(SSD) 2205

Applications:Municipal, environmental, petrochemical, mining, sea waterreverse osmosis desalination,

food, drink, alcohol, chemical, pharmaceutical and other industries.PLICAB

IMPORTANCE

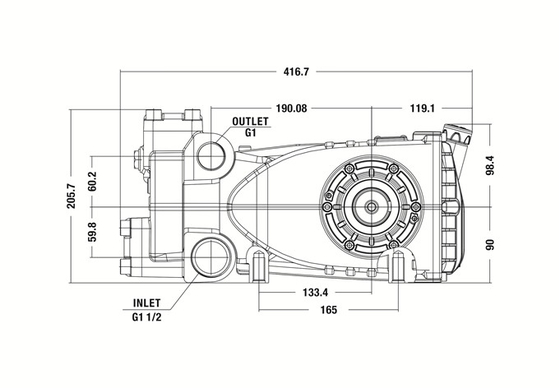

Inlet Port: 1 ½” BSP

Outlet Port: 1” BSP

Oil Bath Capacity:2500ml (half level of oil gauge)

Oil Type: 85W/90 or greater GEAR OIL

Water Inlet Pressure:0-50psi/3.5bar

Max Inlet Water Temp.50° C/122° F

APPLICABLE VALVES

UNLOADER VALVE

Max Pressure: 206bar/3000psi, 280bar/4060psi

Max Flow: 200LPM/53GPM

Inlet, Outlet, Bypass Port: 1”

Brass forged body, stainless valve core and seat

SAFETY VALVE

Max Pressure: 206bar/3000psi, 280bar/4060psi

Max Flow: 200LPM/53GPM

Inlet Port:3/4” Bypass Port: 1/2”

Brass forged body, stainless valve core and seat

SPECIFICATIONS

APPLICATIONS

Pump head material - stainless steel 420

Application: municipal, sanitation, petrochemical, mining and other industries
