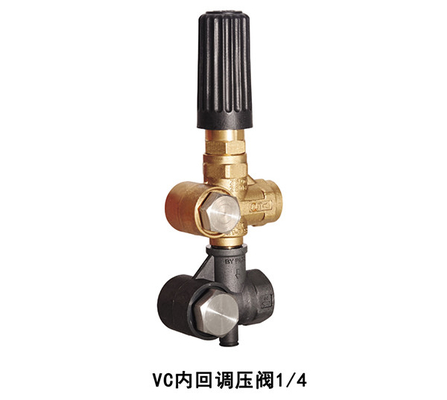

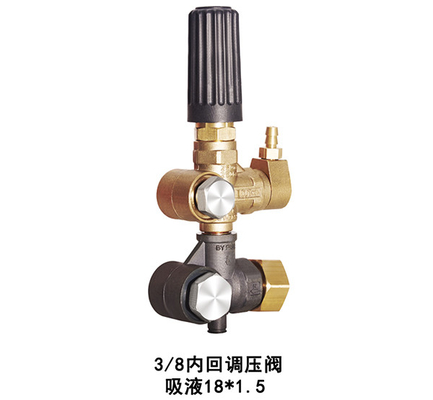

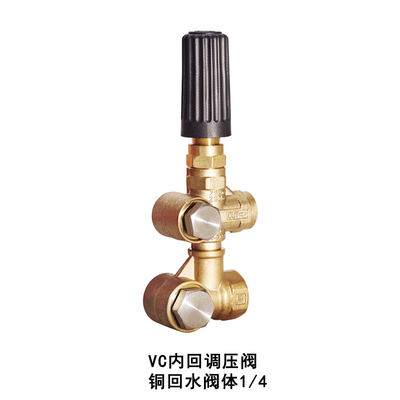

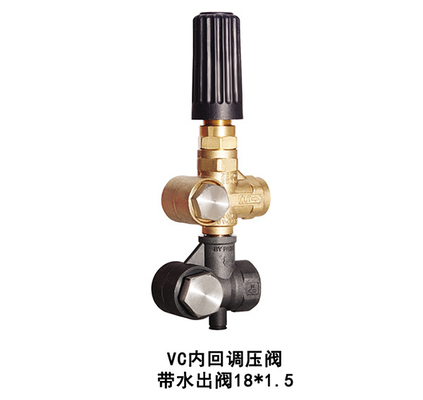

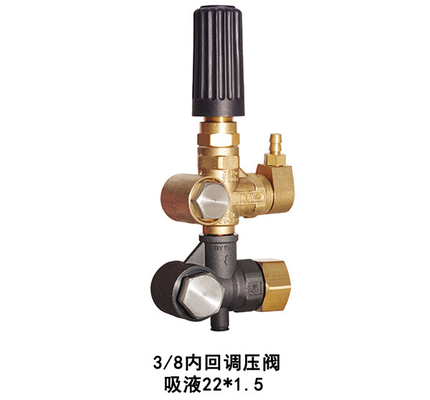

FLOWGUARD unloader valve with by-pass VC

Name: FLOWGUARD unloader valve with by-pass VC
Brand: FLOWGUARD
SKU: VC
Price: 1 USD
Availability: InStock
Rating: 4.8 (123 reviews)

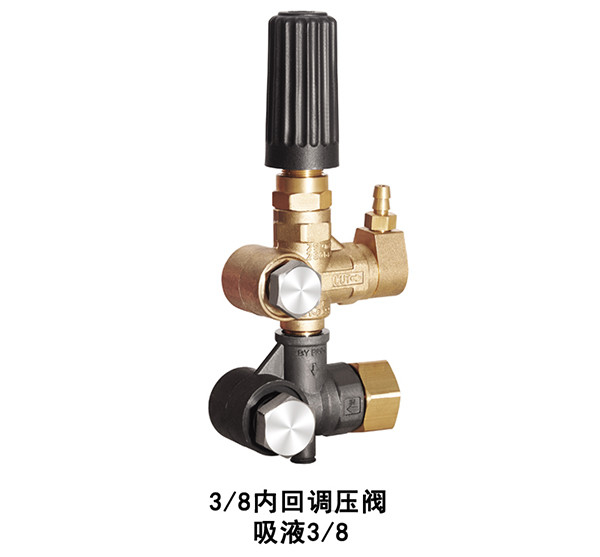

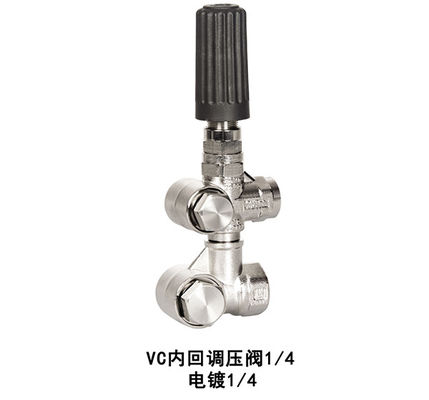

Large Image : FLOWGUARD unloader valve with by-pass VC

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	FLOWGUARD
Certification:	CE, RoHS, ISO 90001:2008
Model Number:	VC

Payment & Shipping Terms:

Minimum Order Quantity:	100
Packaging Details:	602525 cm; 23kg
Delivery Time:	3-15days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

FLOWGUARD unloader valve with by-pass VC

Basic Info

Model No.: V3/8

Material: Brass

Connection Form: Welding

Pressure: High Pressure

Flow Direction: Reversing

Application: Water Industrial Usage

Model	Max Flow		Max pressure		Rated	Water inlet	Water outlet	Backwater size	Weight
	L/min	gpm	bar	psi	temperature	Inch	Inch	Inch	kg
VC-1	35	9.25	250	3625	90℃	G3/8	18*1.5	G1/4	0.48
VC-2	35	9.25	250	3625	90℃	G3/8	18*1.5	G1/2	0.65
VC-3	35	9.25	250	3625	90℃	G3/8	18*1.5	G1/2	0.64
VC-4	35	9.25	250	3625	90℃	G3/8	18*1.5	G1/2	0.64
VC-5	35	9.25	250	3625	90℃	G3/8	18*1.5	G1/2	0.51
VC-6	35	9.25	250	3625	90℃	G3/8	18*1.5	G1/2	0.78
