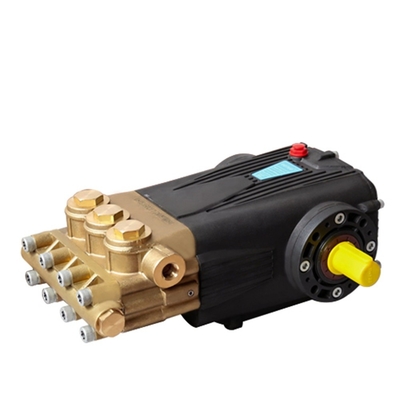

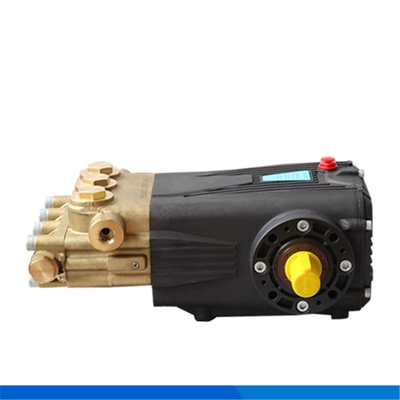

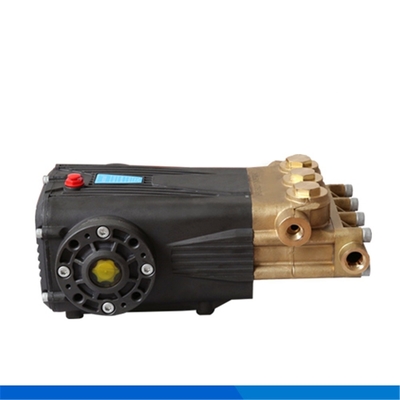

FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi

FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi
FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi

Large Image :  FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi

Product Details:
Place of Origin: CN
Brand Name: FLOWMONSTER
Certification: CE, RoHS
Model Number: DSP-N
Payment & Shipping Terms:
Minimum Order Quantity: 1-100pcs
Price: 500-1200pcs
Packaging Details: Carton
Delivery Time: 10-30 working days
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/month
Detailed Product Description
Material: Brass Theory: Plunger Pump



FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi

FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi 0



Specifications Details :

  • Folw : 12-52 L/min , 3.2-13.6 gpm
  • Pressure : 50-500 bar , 725-7250 psi
  • Power : 7.5-30 kw , 10-30 hp
  • Speed : 1450 rpm

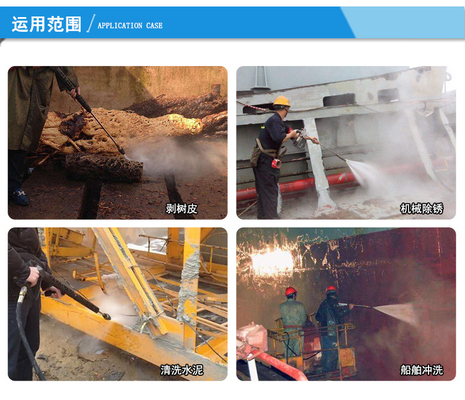

Applications:

  • Commercial Contractor Cleaning
  • Oil & Gas
  • Misting, Cooling & Fogging
  • Agriculture & Food Processing
  • Process Industries

Technical Parameters:

Model Flow Pressure Power Speed Plunger Dia Stroke
Type L/min bar kw HP rpm mm mm
DSP1250 12 500 15 20 1450 18 11
DSP1650 16 500 15 20 1450 18 15
DSP2250 22 500 22 30 1450 18 20
DSP2260锻打 22 600 22 30 1450 18 21
DSP3050 28 500 22 30 1450 20 21
DSP4020 38 200 15 20 1450 28 15
DSP5215 51 150 22 30 1450 28 21

FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi 1FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi 2FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi 3FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi 4FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi 5FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi 6FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi 7FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi 8FLOWMONSTER DSP-N High Pressure Triplex Plunger Pump 12-51LPM 150-600Bar/2175-8700Psi 9
