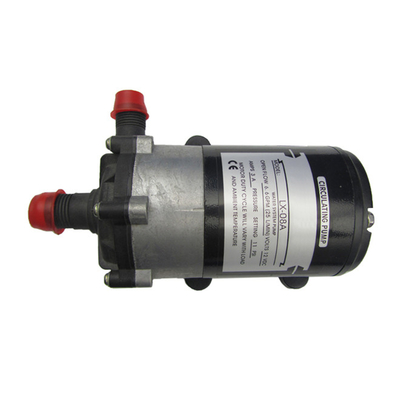

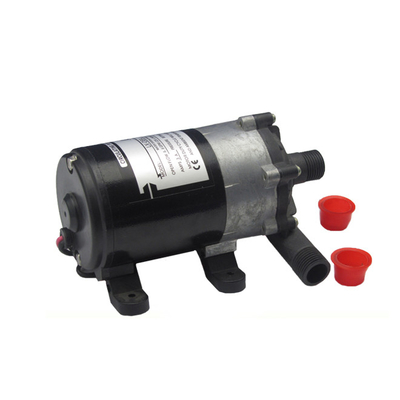

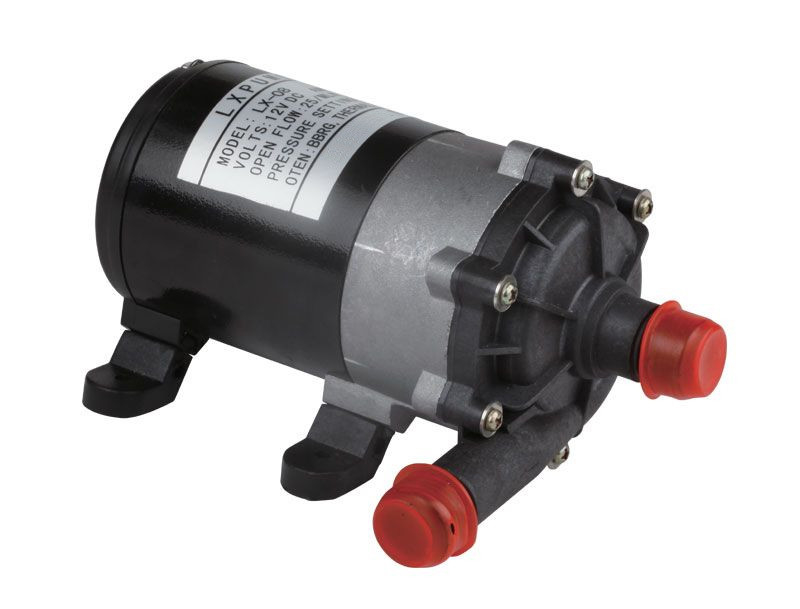

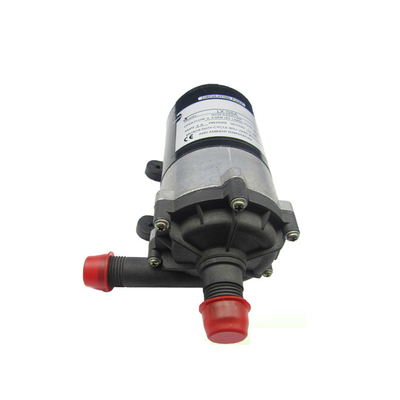

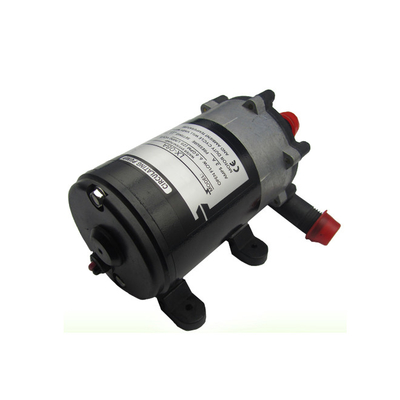

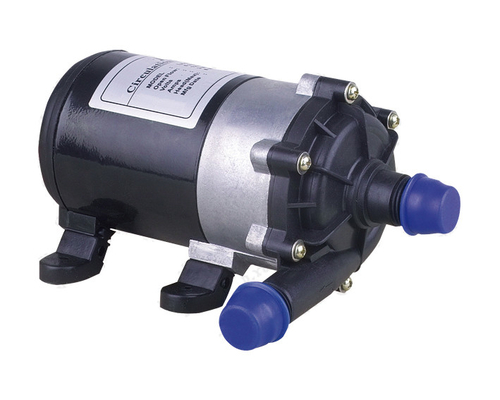

FLOWEXPERT KLX-08 Circulating Water Pump

FLOWEXPERT KLX-08 Circulating Water Pump

FLOWEXPERT KLX-08 Circulating Water Pump
FLOWEXPERT KLX-08 Circulating Water Pump FLOWEXPERT KLX-08 Circulating Water Pump FLOWEXPERT KLX-08 Circulating Water Pump FLOWEXPERT KLX-08 Circulating Water Pump FLOWEXPERT KLX-08 Circulating Water Pump FLOWEXPERT KLX-08 Circulating Water Pump

Large Image :  FLOWEXPERT KLX-08 Circulating Water Pump

Product Details:
Place of Origin: Guangdong, China
Certification: CE, RoHS, ISO 90001:2008
Model Number: KLX-08
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 60*30*25 cm; 25kg
Delivery Time: 3-15days
Payment Terms: T/T (Bank wire transfer), Western Union, Paypal, Alipay
Supply Ability: 10000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Centrifugal Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Pressure: Low Pressure
Fuel: DC Power Application: Spraying, Filtration, Boosting, Misting, Cooling

FLOWEXPERTTM KLX-08 DC Circulating Water Pump 12V/24V Electric Circulation Pump

FLOWEXPERT KLX-08 Circulating Water Pump 0



Quick Spec.
1.CE,ISO9001:2008 Certificate
2.Centrifugal water pump
3.JOHNSON pump
4.DC circulation pump 12v

KLX-08 circulating water pump,12V/24V DC Circulation Pump



1, High quality 12 and 24 Volt water pumps for sea water, fresh water, salt water, bilge water
and much more.
2, Low pressure, low volume water, pressure system pumps with internal Bypasses.
3, Stainless steel bolts, water resistant pressure swith, snap-in connection, special valve and diagphragm for easy priming.
4, Moisture resistant O ring seal motor, double ball bearing motor and Rubber mounted for
smooth, quiet operation, sealed drive bearings, corrosion resistant.
5, Self-Priming,High Pressure,can be used for car washer,agriculture.



1, Pump Head 2 chambers
2, Open Flow 25L/Min(consult factory for other flow rate)
4, Motor Configuration lead wires 2-pin connector(consult with factory)
5, 2-pin connector with on/off switch
6, Inlet/ outlet fitting:3/8'' thread or hose barb
7, Runs dry without damage
8, Duty cycle: intermittent
9, Pumps with internal bypasses


Model Volts Flow(Litres/Min) Pressue Off Amp Draw Max. Lift(m)
KLX-08 12 25 NO 3.0 8.0
KLX-08 24 25 NO 1.5 8.0




Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5




Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
