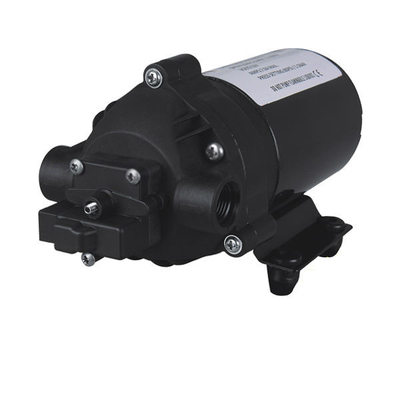

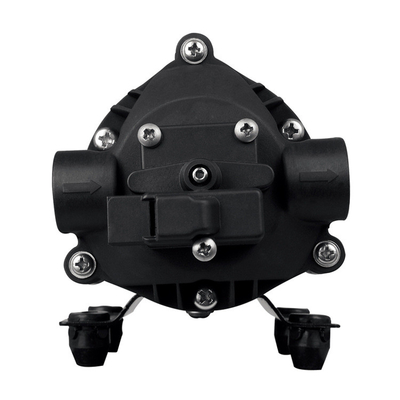

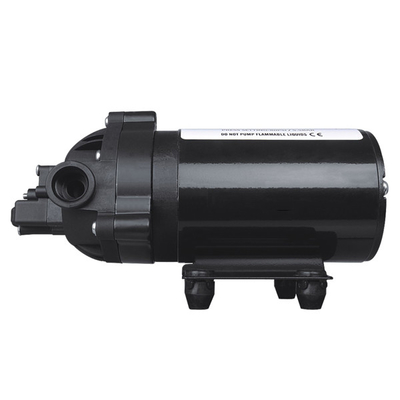

FLOWKING High Pressure Electric Diaphragm Pump KFL-31 series 160PSI 5.5L/Min for agriculture spraying misting fogging

FLOWKING High Pressure Electric Diaphragm Pump KFL-31 series 160PSI 5.5L/Min for agriculture spraying misting fogging
FLOWKING High Pressure Electric Diaphragm Pump KFL-31 series 160PSI 5.5L/Min for agriculture spraying misting fogging FLOWKING High Pressure Electric Diaphragm Pump KFL-31 series 160PSI 5.5L/Min for agriculture spraying misting fogging FLOWKING High Pressure Electric Diaphragm Pump KFL-31 series 160PSI 5.5L/Min for agriculture spraying misting fogging

Large Image :  FLOWKING High Pressure Electric Diaphragm Pump KFL-31 series 160PSI 5.5L/Min for agriculture spraying misting fogging

Product Details:
Place of Origin: China
Brand Name: FLOWKING
Certification: CE;RoHS
Model Number: KFL-31 Series
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 1pc/inner color box;20pcs/ctn; Seaworthy strong cartons; 64*39*22.5 cm/ctn; 20kg/ctn
Delivery Time: 10-15days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 50,000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: Electric Power
Application: Yatch, Caravan, RV/Marine/Industry Pressure: 80-160PSI
Voltage: 12V/24V Flow: 1.8GPM (7.0LPM)
Color: Black/Blue/Orange Or As Requested Rated Current: 10A Max
Factory: OEM/ODM



FLOWKINGTM High Pressure Electric Diaphragm Water Pump 160psi 5.5LPM for Car Wash, Agriculture Sprayer, Marine, RV



FLOWKING High Pressure Electric Diaphragm Pump KFL-31 series 160PSI 5.5L/Min for agriculture spraying misting fogging 0

APPLICATIONS



  • Agriculture/Yacht / RV/Caravan pressurized water system
  • Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
  • Cleaning machine, Humidifier, Water purification, Medical apparatus
  • Any other pressurization system



Materials of Construction



Housings: Polypropylene
Valves: Viton
Diaphragm: Santoprene
Fasteners: Stainless Steel
Motor Shell: Coated Steel





PUMP

Motor Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
Amps 9.0A Max
Certification CE, ISO9001:2008, RoHS
Flow Rate 5.5LPM/1.5GPM
Pressure 100psi/6.9bar
Port dimension 3/8" FNPT
Diaphragm Santoprene
Valve Viton or EPDM
Duty Cycle Intermittent





How a Diaphragm Pump Works



   The pump is driven by an AC or DC motor in front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet. The volume of flow is determined by several factors including: the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity





STANDARD PUMP CONFIGURATIONS



Model Voltage GPM/LPM PSI/BAR Max Draw(A) Valves Diaphragm Ports Switch Wire Connections
KFL31-80A 12V DC 1.5/5.5 80/5.5 7 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-80A 24V DC 1.5/5.5 80/5.5 4 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-100A 12V DC 1.5/5.5 100/6.9 9 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-100B 24V DC 1.5/5.5 100/6.9 4.5 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-120A 12V DC 1.5/5.5 120/8.3 10 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-120B 24V DC 1.5/5.5 120/8.3 5 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-160A 12V DC 1.5/5.5 160/11.0 12 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-160B 24V DC 1.5/5.5 160/11.0 6 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-80C 12V DC 1.8/7.0 80/5.5 9 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-80D 24V DC 1.8/7.0 80/5.5 4.5 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-100C 12V DC 1.8/7.0 100/6.9 10 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-100D 24V DC 1.8/7.0 100/6.9 5 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-120C 12V DC 1.8/7.0 120/8.3 12 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-120D 24V DC 1.8/7.0 120/8.3 6 Viton Santoprene 3/8"-18 FNPT Yes 2-Pin/Leads
KFL31-120M 110-120V AC 1.5/5.5 120/8.3 0.8 Viton Santoprene 3/8"-18 FNPT Yes Leads
KFL31-120S 220-240V AC 1.5/5.5 120/8.3 0.5 Viton Santoprene 3/8"-18 FNPT Yes Leads
KFL31-160M 110-120V AC 1.5/5.5 160/11.0 1.1 Viton Santoprene 3/8"-18 FNPT Yes Leads
KFL31-160S 220-240V AC 1.5/5.5 160/11.0 0.6 Viton Santoprene 3/8"-18 FNPT Yes Leads





FLOWKING High Pressure Electric Diaphragm Pump KFL-31 series 160PSI 5.5L/Min for agriculture spraying misting fogging 1





PUMP PERFORMANCE





  1.8 GPM   1.5 GPM
PSI BAR GPM LPM PSI BAR GPM LPM
OPEN 0 1.77 6.7 OPEN 0 1.43 5.4
10 0.69 1.66 6.3 10 0.69 1.36 5.15
20 1.38 1.56 5.9 20 1.38 1.27 4.8
30 2.07 1.48 5.6 30 2.07 1.22 4.62
40 2.76 1.4 5.3 40 2.76 1.16 4.4
50 3.45 1.29 4.9 50 3.45 1.11 4.2
60 4.14 1.22 4.6 60 4.14 1.06 4
70 4.83 1.19 4.5 70 4.83 1.03 3.9
80 5.52 1.16 4.4 80 5.52 1 3.8
90 6.21 1.14 4.3 90 6.21 0.98 3.7
100 6.9 1.11 4.2 100 6.9 0.95 3.6
110 7.59 1.08 4.1 110 7.59 0.9 3.4
120 OFF 0 0 120 8.28 0.87 3.3
  130 8.97 0.85 3.2
140 9.66 0.82 3.1
150 10.34 0.79 3
160 11.03 OFF 0





DIMENSIONS DRWING



FLOWKING High Pressure Electric Diaphragm Pump KFL-31 series 160PSI 5.5L/Min for agriculture spraying misting fogging 2







EXPLODED VIEW

FLOWKING High Pressure Electric Diaphragm Pump KFL-31 series 160PSI 5.5L/Min for agriculture spraying misting fogging 3



1 2 3 4 5 6 7 8
Complete Pumphead Assembly Switch Assembly Check Valve Assembly Upper Housing Bypass / Non-Bypass Valve Assembly Diaphragm Assembly Drive Assembly Motors







CHEMICAL RESISTANCE



Chemical Resistance labels Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
