KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor

Certification
China Dongguan Kodo Tech Co., Ltd certification
China Dongguan Kodo Tech Co., Ltd certification
I'm Online Chat Now

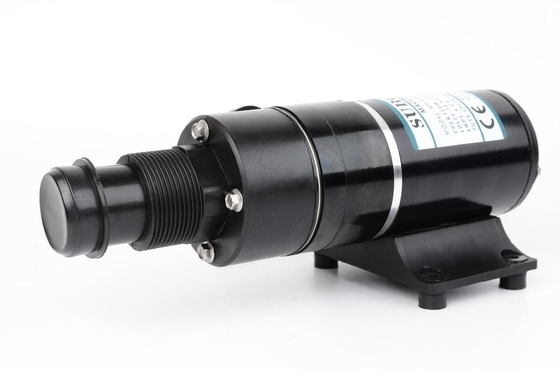

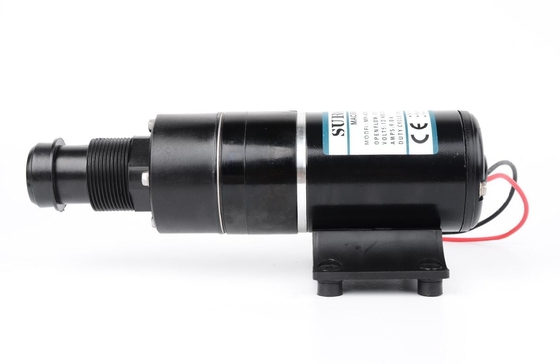

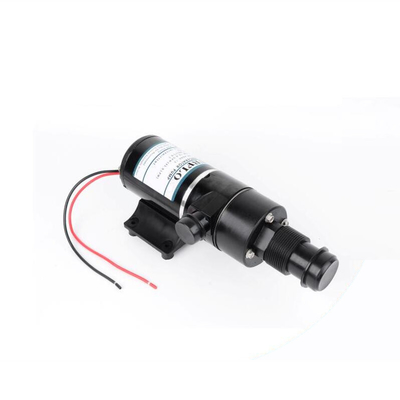

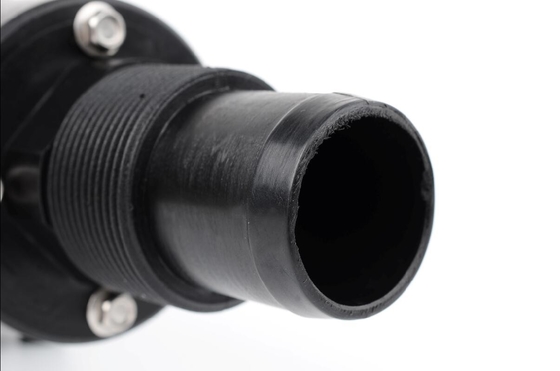

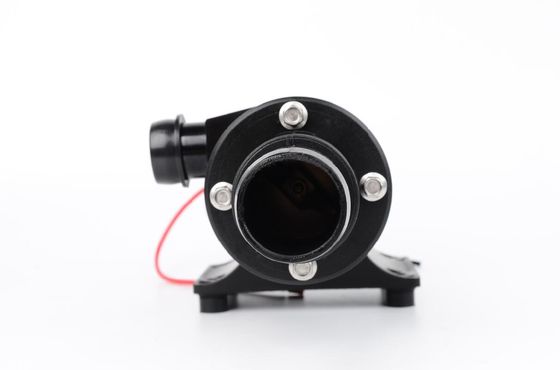

KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor

KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor
KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor

Large Image :  KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor

Product Details:
Place of Origin: Guangdong, China
Brand Name: AQUALORD
Certification: CE, RoHS, ISO 90001:2008
Model Number: KMP-4500-24
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 60*25*25 cm; 24kg
Delivery Time: 3-15days
Payment Terms: T/T (Bank wire transfer), Western Union, Paypal, Alipay
Supply Ability: 10000pcs/Month
Detailed Product Description
Theory: Centrifugal Pump Structure: Single-stage Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: DC Power
Pressure: Low Pressure Application: Sewage



AQUALORD KMP-4500 Macerator Pump 24V DC dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump waste processor



AQUALORD macerator pump is designed specifically for sanitation waste and fish box evacuations. This high-powered pump incorporates our high quality motor with a new seamless shell and splash proof design. The Macerator features a premium impeller design and includes o-ring sealed end bells with a sealed manual turn key to withstand the harsh marine environment.

Dual blade and housing construction ensures problem free pumping, providing superior performance while delivering up to 12 GPM [45.00 LPM]. Available in 12, 24, 115 and 230 Volts.





FEATURES & BENEFITS



  • 12GPM(45.00LPM)
  • Self Priming
  • Seamless Motor Shell
  • O-Ring Shaft Seal
  • Heavy Duty Shaft Seal
  • Manual Turn Key With Rear O-Ring Seal
  • Innovative Internal Housing Design
  • Dual Blade Design
  • Premium Impeller
  • Ignition Protection
  • Thermally Protected
  • Available in 12, 24, 115 and 230 Volts

KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor 0



SPECIFICATIONS



Model Volts
dc
Open Flow
gpm (lpm)
Amps
Max
Packing Size
(mm)
N.W / G.W
(kg)
KMP-4500-12 12 Vdc 12.0 (45.0) 9.0 320×135×110 2.10 / 2.40
KMP-4500-24 24 Vdc 12.0 (45.0) 6.0 320×135×110 2.10 / 2.40



PERFORMANCE CURVE



KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor 1

KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor 2

KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor 3

KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor 4

KMP-4500 Macerator Pump DC 24V dirty water pump 45L/min RV pump trash pump mashed pump toilet sewage pump wast processor 5



CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
