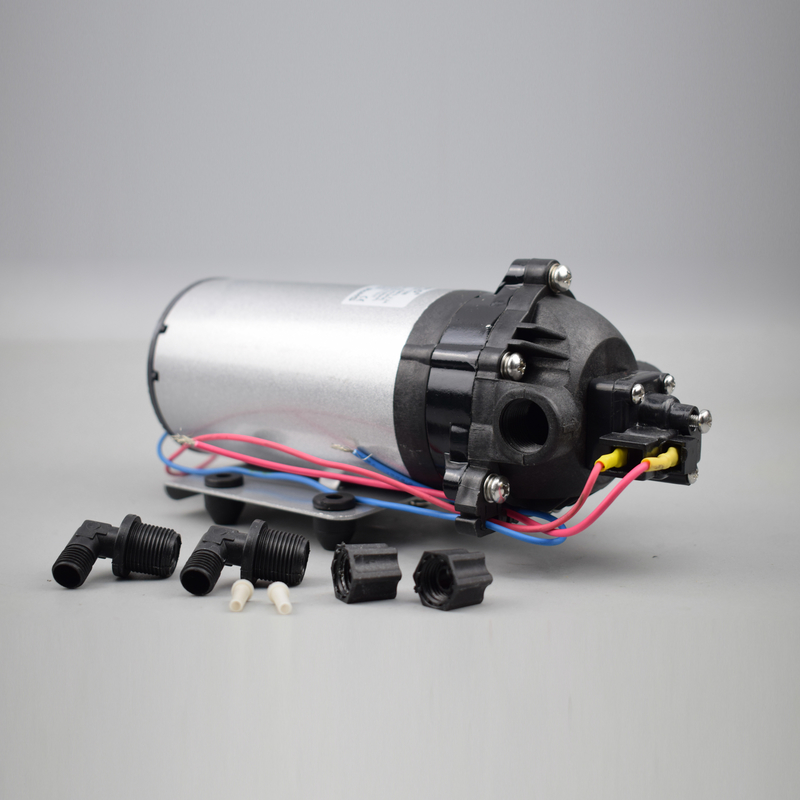

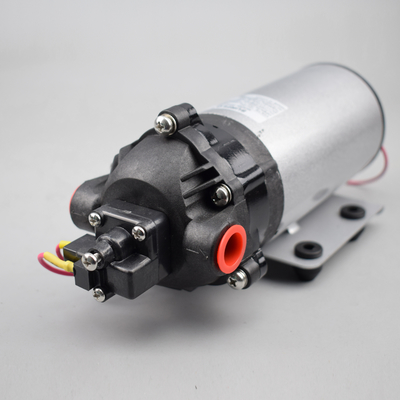

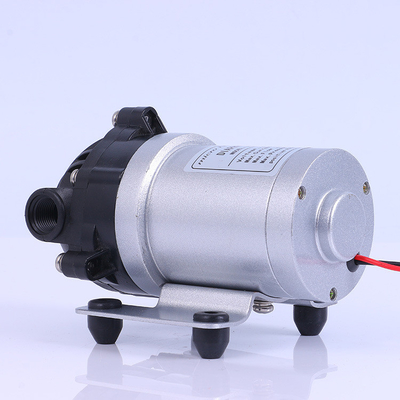

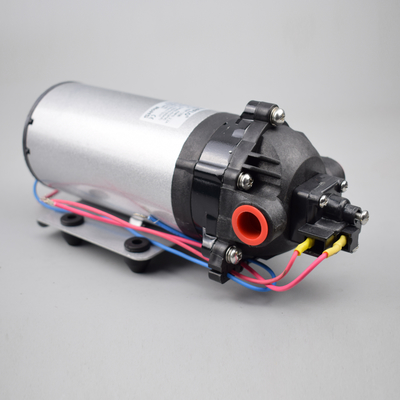

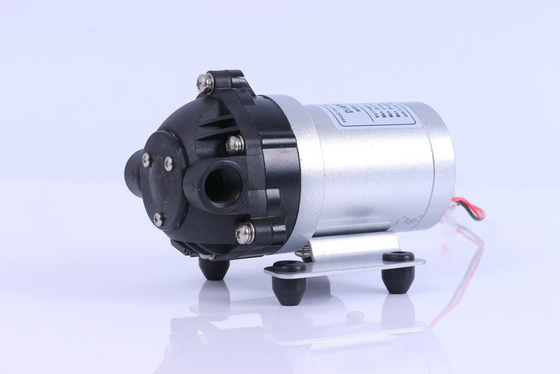

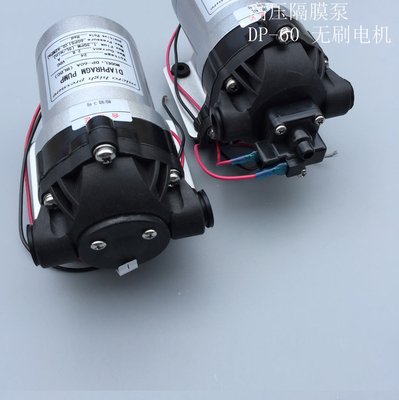

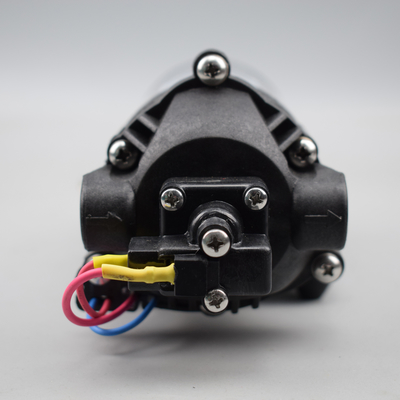

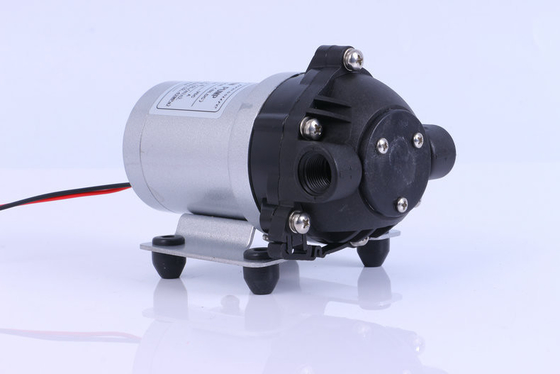

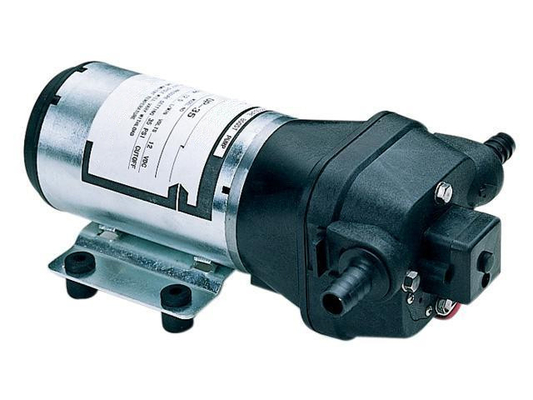

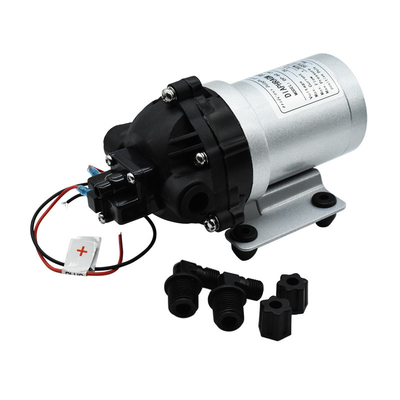

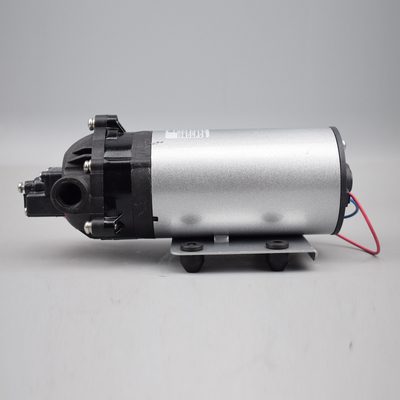

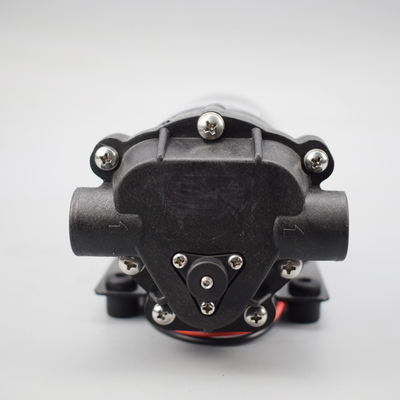

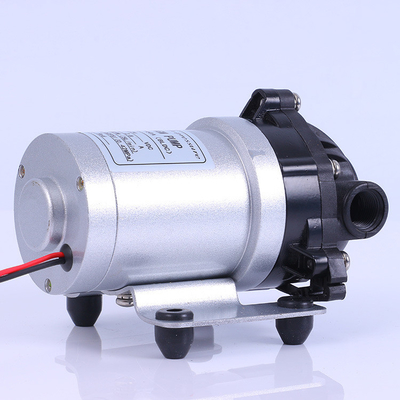

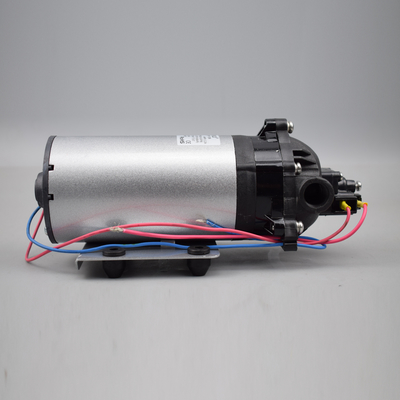

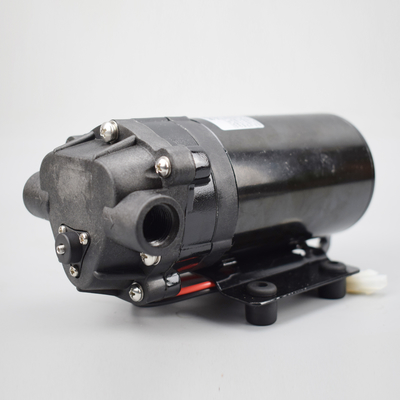

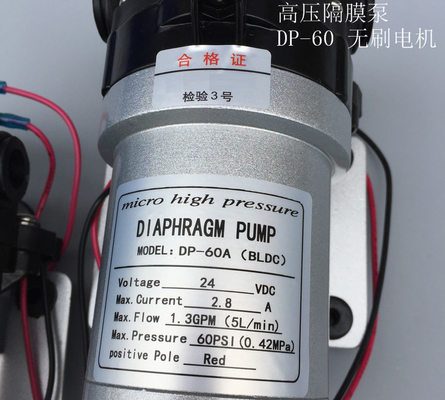

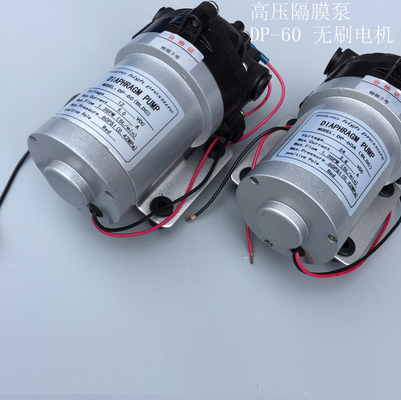

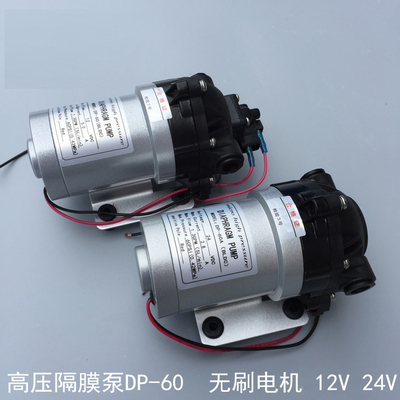

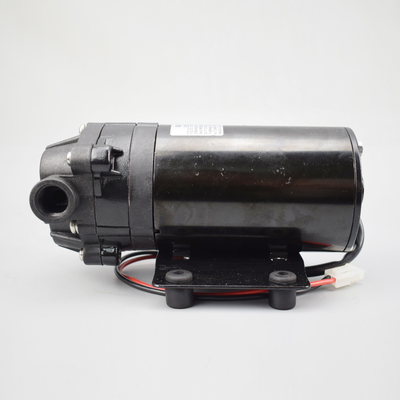

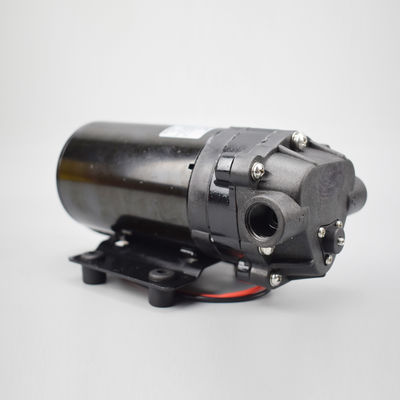

FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series

FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series
FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series

Large Image :  FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series

Product Details:
Place of Origin: China
Brand Name: FLOWEXPRESS
Certification: CE;RoHS
Model Number: DP
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 1pc/inner color box;20pcs/ctn; Seaworthy strong cartons; 64*39*22.5 cm/ctn; 20kg/ctn
Delivery Time: 10-15days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 50,000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: Electric Power
Application: Yatch, Caravan, RV/Marine/Industry Pressure: 60-150PSI

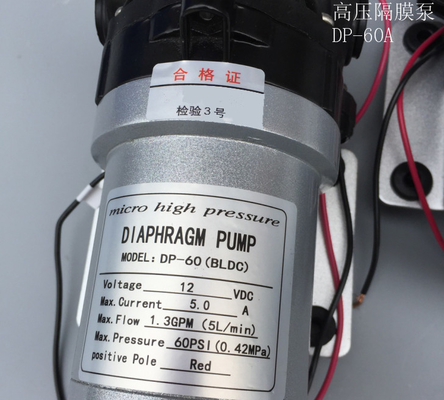

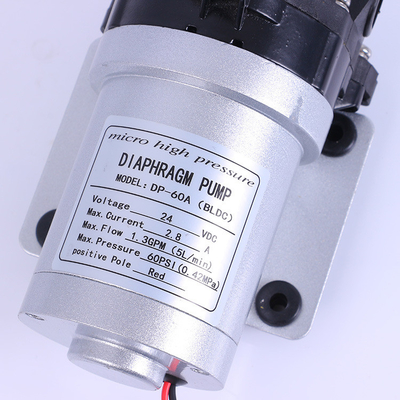

Voltage: 12V/24V; 100-120V;220-240V Flow: 1.3~1.4GPM (5.0~5.3LPM)
Color: Black/Blue/Orange Or As Requested Rated Current: 10A Max
Factory: OEM/ODM



FLOWEXPRESSTM DP series electric High pressure diaphragm pump for RV, Marine, Industry and Agriculture



FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series 0

FLOWEXPRESSTM DP Series diaphragm pump is most widely used industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming; up to 1.8 GPM [6.8 l/min]. They are available in a variety of chemically resistant materials. They can be mounted in any position, and are designed for easy maintenance. They are available in a variety of voltages, from 12 VDC to 230 VAC.



FEATURES & BENEFITS



  • Pressures Up to 150 PSI [10.3 BAR]
  • Self-Priming up to 8 Vertical Feet [2.4M]
  • Chemically Resistant Materials
  • Designed for Spraying and Fluid Transfer
  • Can Run Dry without Damage
  • Self-Priming
  • Check Valve Prevents Reverse Flow
  • Automatic Operation with Pressure-Demand Switch
  • Available in 12 and 24 VDC and 115 VAC





FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series 1FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series 2FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series 3FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series 4

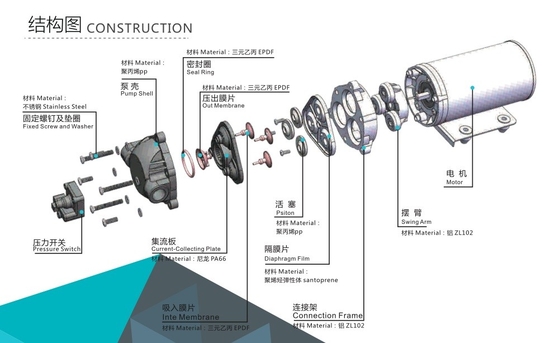

EXPLODED VIEW



FLOWEXPRESS Electric High Pressure Diaphragm Pump DP Series 5











No. 1 2 3 4 5 6 7 8
Complete Pumphead Assembly Switch Assembly Bypass / Non-Bypass Valve Assembly Upper Housing Check Valve Assembly Diaphragm Assembly Drive Assembly Diaphragm Base Motors



CHEMICAL RESISTANCE TABLE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
