Product Details:
Payment & Shipping Terms:
|

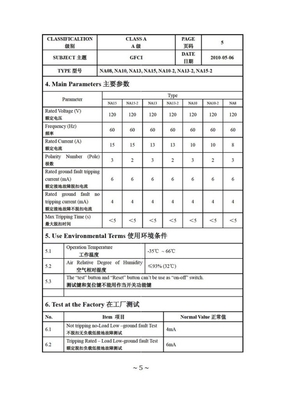

Specification
| Rated Voltage | 120V AC 50/60Hz |
| Rated Current | 8A/10A/13A/15A |
| Rate Power | 960W/1200W/1560W/1800W |
| Overvoltage protection | 175V±5V AC |
| Leakage Current | ≤4MA ,Not Trip; ≥6MA Trip |
| Tripping time |
≤30ms when leakage current is 6MA. ≤ 25ms when leakag current is 204MA-264MA |

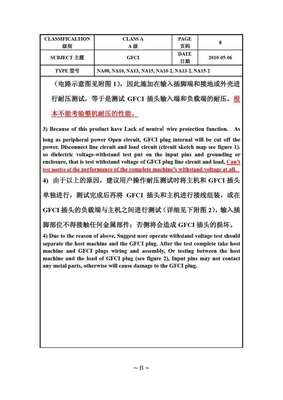

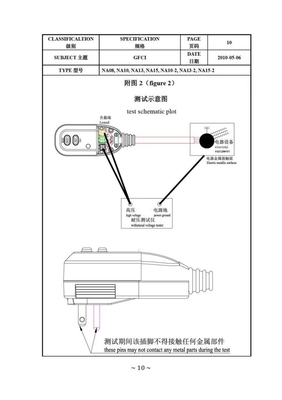

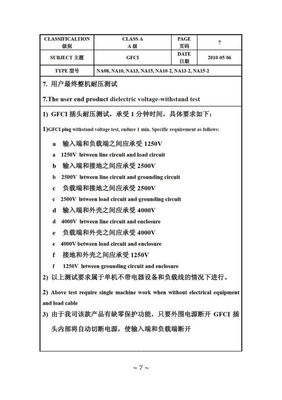

| Voltage withstand |
In tripping condition voltage between: 1.plugs and flexible cord is ≥1500V AC. 2.polarity and surface is ≥4000V AC. |
| Surge Voltage | 6000V |
| Endurance times | 6000 |

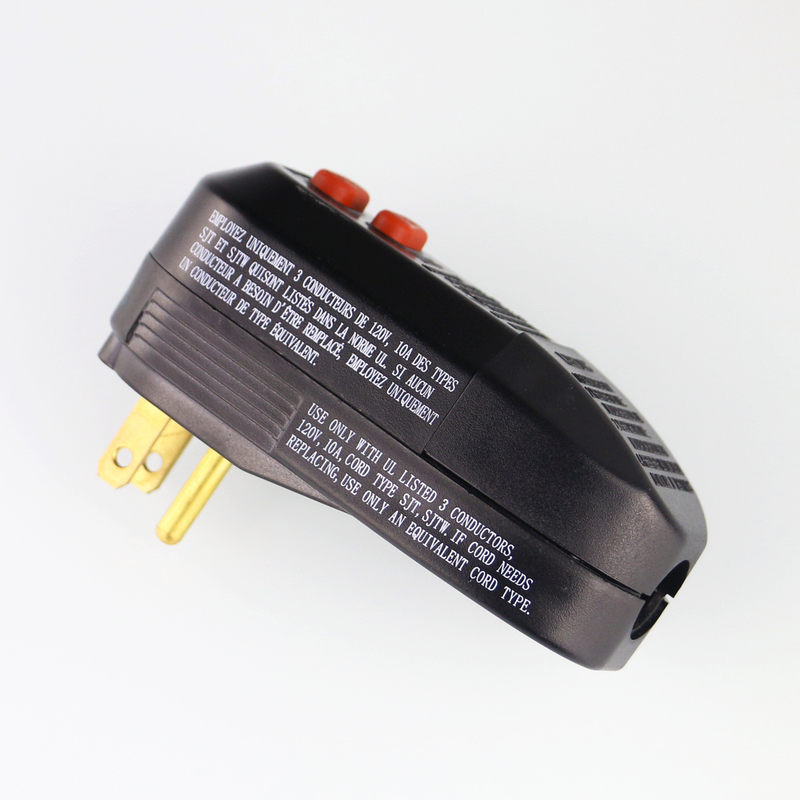

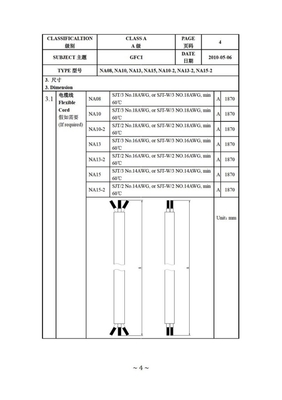

| Flexible Cord | 18AWG X 3C |
| Color | All |
| Quality Grade | Superior |
| Product Net Weight | 132g |
| Product Gross Weight | 140g |
| PSC | 100 unit |
| Carton Size (CM) | 43x34.5x27 |
| Net Weight | 14Kg |
| Gross Weight | 15.65Kg |
Application
GFCI plug series earth leakage protection device is widely used in outdoor cleaning equipment and mobile/recreational equipment and other electrical leakage protection switch electric water heaters, rice cookers, televisions, refrigerators, microwave ovens, washing machines, dishwashers, disinfection cabinet, water dispenser, computer, electric tools and instrumentation terminal leakage protection.
