AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series

AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series

AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series
AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series

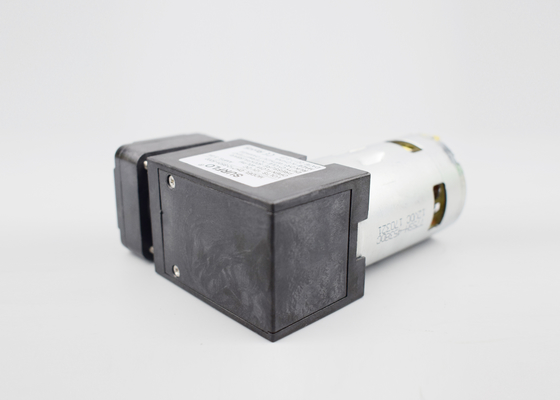

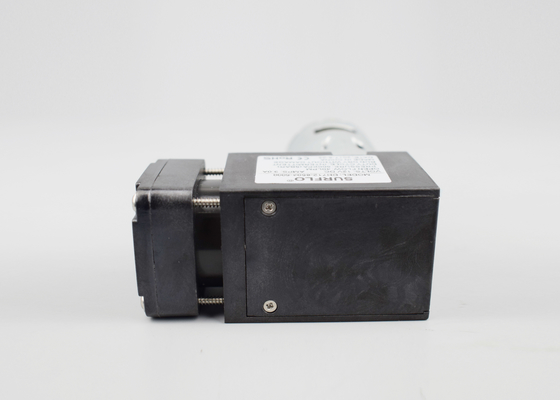

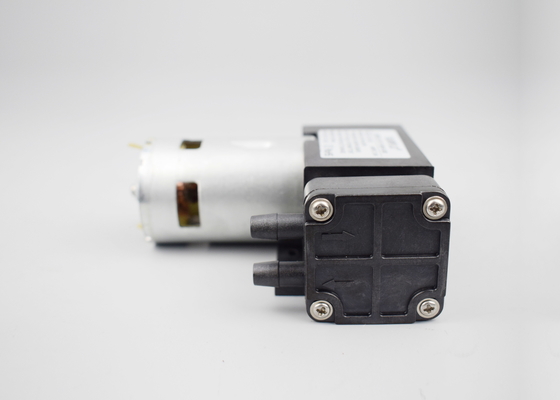

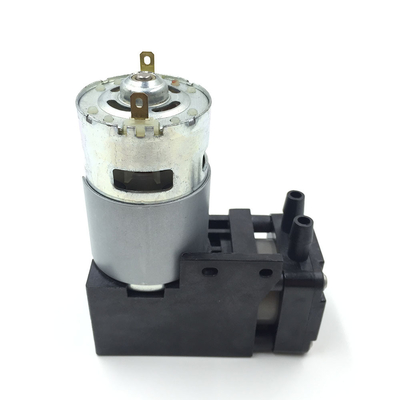

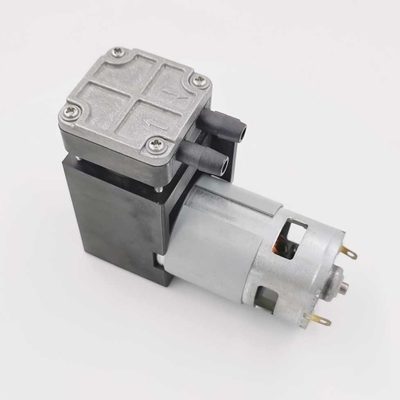

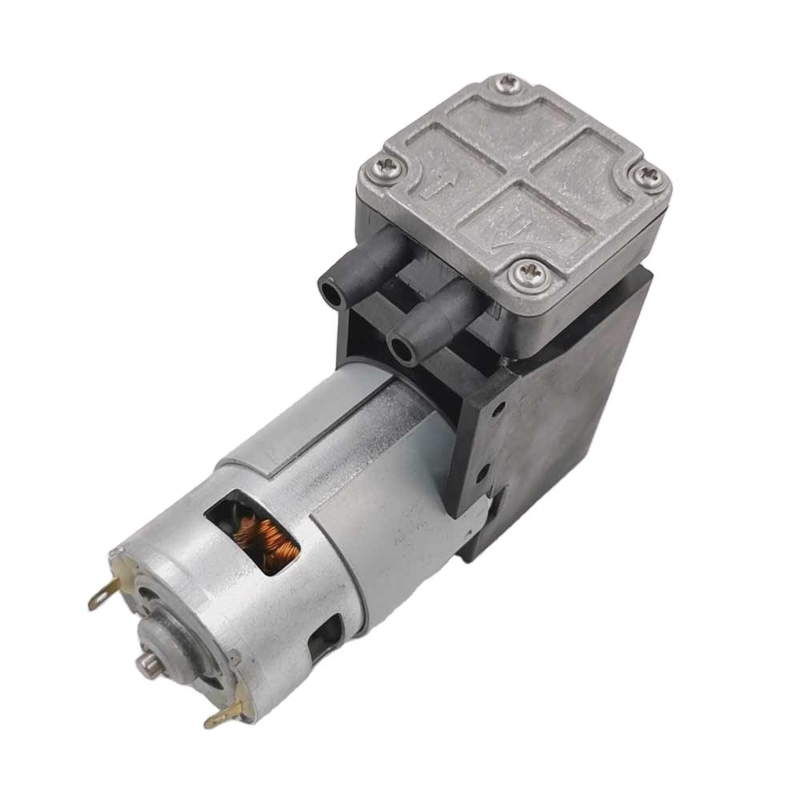

Large Image :  AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series

Product Details:
Place of Origin: Guangdong,China
Brand Name: AIRJET
Certification: CE;RoHS
Model Number: DHXXX-XXXX-XXXX
Payment & Shipping Terms:
Minimum Order Quantity: 60pcs
Price: Negotiable
Packaging Details: 48*32*25cm 20kg/carton
Delivery Time: 10days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 10000pcs/week
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Air Pump Power: Electric
Standard Or Nonstandard: Nonstandard Pressure: High Pressure
Fuel: Electric Power Application: Vacuum Packaging, Medical, Gas Sampling


AIRJETTM High Flow DC Electric Air Pump with Long Life Brush Motor High Pressure Vacuum Pump Piston Pump 12v 24V optional Mini Air Compressor

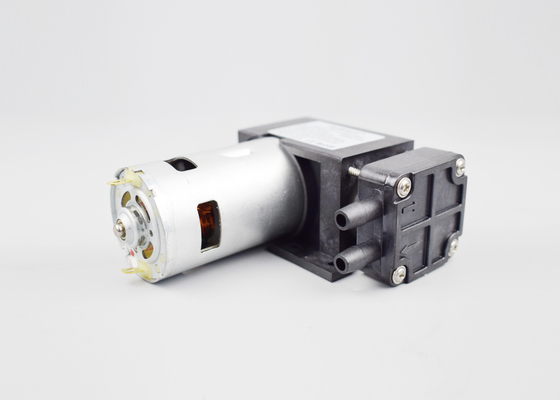

AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series 0

Features

  • High vacuum and large flow rate.
  • Strong adaptability to environment.
  • High quality and exellent performance.
  • Energy saving and high efficiency.
  • No leakage and smooth operation.
  • Strong suction and self-priming.
  • Durable and long lifetime.
  • Innovative designs and easy installation.
  • High temperature performance, good consistency
  • Oil resistance and easy installation
  • DC brush motor assembled
  • Long life span over 500hours, low heat.
  • Heavy duty work for 24 hours and Continuous operation
  • The key parts are imported
  • Can work for long hours

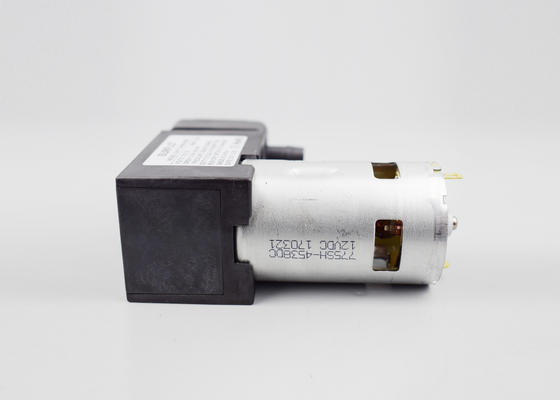

AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series 1


SPECIFICATIONS


Model Size
mm
Volts
DC/V

Power

w

Pressure
kpa
Flow
L/min
Vacuum
kpa

Weight

g

DH712-8503-5000 43.6*87*112 12V 100 580 ≥40 85 500
DH724-8504-5000 43.6*87*112 24V 100 580 ≥40 85 500
DH712-7003-5000 43.6*87*112 12V 80 500 ≥30 80 500
DH724-7004-5000 43.6*87*112 24V 80 500 ≥30 80 500
DH712-6003-5000 43.6*87*112 12V 60 400 ≥25 75 500
DH724-6004-5000 43.6*87*112 24V 60 400 ≥25 75 500
DH712-5001-3700 43.6*87*112 12V 50 300 ≥20 70 500
DH724-5002-3700 43.6*87*112 24V 50 300 ≥20 70 500
DH712-4001-3700 43.6*87*112 12V 40 250 ≥15 70 500
DH724-4002-3700 43.6*87*112 24V 40 250 ≥15 70 500

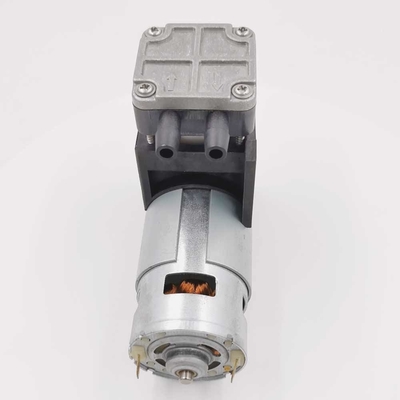

AIRJET Hi-Flow DC Electric Air Vacuum Piston Pump DH7 Series 2



Notes of  micro air pump

  • Do not use this product beyond the limit specified in this specification.
  • When using the brushless motor, be noted that the input power should be constant pressure and filtering.
  • Keep the inlet and outlet clean and smooth , no solid particles.
  • May contain a small amount of water, not solid foreign objects into the pump body.
  • In inlet and outlet of the non-clean,please install air intake filters.
  • The specification of this product is only for your reference
  • The specific  details should check the real products.
  • Products should be made according to customer’s request within the permitted range.
  • Non-professional person should not disassemble this product.
  • Long service life at room temperature environment.
  • Can supply a variety of certifications according to customer’s requests.
  • Please ensure the input voltage meets the specification and make sure the power polarities are connected properly.
  • Connect a filter to the inlet to block dust, fiber,water drops when the operational environment is worse.
  • Use φ4 silicone tube and Connect a silencer to the outlet for noise reduction purpose.
  • Make ventilation holes or slots on the bottom or side of device housing for heat dissipating is strongly recommended.
  • Use a piece of thick sponge or foam to wrap the pump for installation would reduce noise and vibration.
  • To extend the life time, Suggest to design a control circuit include a pressure sensor to let the pump work in intervals.
  • Pack and Store the pump well in clean, temperature and humidity controlled place to avoid rusting of motor.



Application of  micro air pump

  • Electronic products,agriculture,finishing,light industry products
  • Analytic-al instruments
  • Chemical and production engineering
  • Various ancillary equipment
  • Medical Electronics: Blood pressure; negative pressure wound therapy device; oxygen machine; breast pump; the suction machine; ICU monitor; ozone disinfection; etc.
  • Household appliance: Vacuum fresh juice machine; coffee machine; automatic tea; fragrance machines; dryers; fragrant Irons etc.
  • Health Massage: Massage chair; neck massage; aquarium; beauty device etc.
