Detailed Product Description
Theory: Vacuum Pump Structure: Wob Piston Pump
Usage: Air Pump Power: Electric
Standard Or Nonstandard: Nonstandard Pressure: High Pressure
Fuel: Electric Power Application: Vacuum Packaging, Medical, Gas Sampling

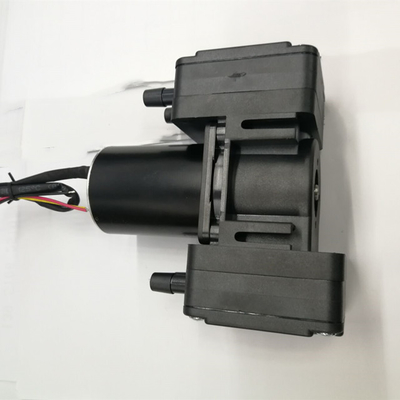

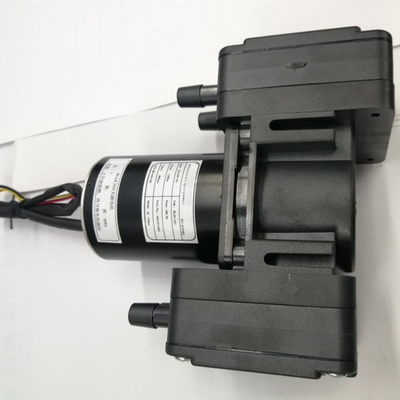

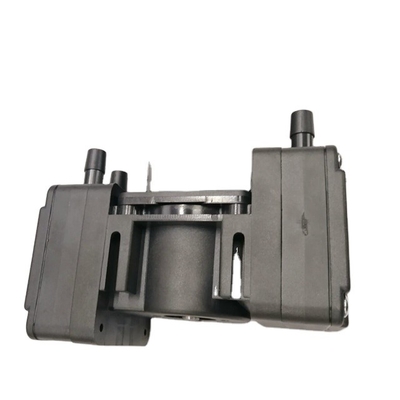

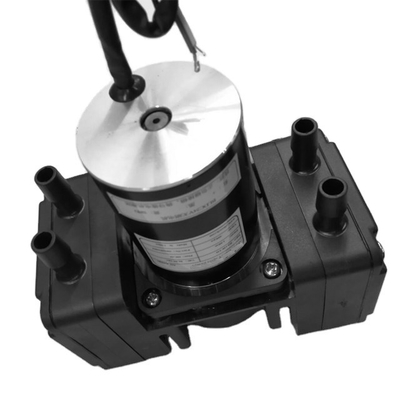

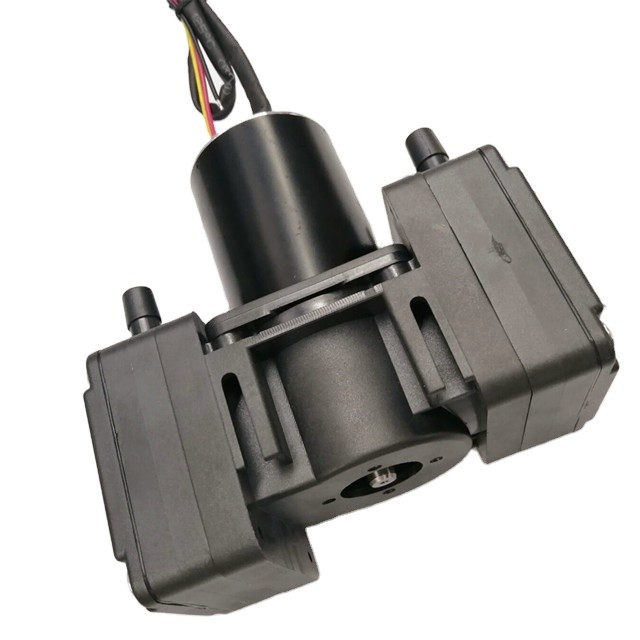

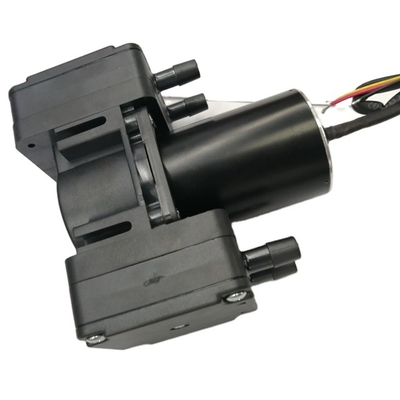

AIRJETTM High Pressure High Vacuum High Flow DC 12V / 24V Electric Piston Air Pump KDA120DCB-TH Series -80KPA 1.8Bar 64L/min
AIRJET Air Pump KDA120DCB-TH Series 0

特点 Features

  • 无油润滑Oil-Free
  • 结构紧凑Compact size
  • 耐腐蚀性Corrosionresistant
  • 长寿命Long life
  • 免维护Maintenance Free
  • 重量轻Low Weight
  • 低噪音低振动Low noise level&vibration
  • 低功耗High efficiency
  • 可以任何方向安装Can be mounted in any plane
  • 直流电机DC Motor


应用 Typical Applications

  • 气体采样分析Gas detection devices
  • 污水处理Sewage disposal
  • 监护仪Patient Monitoring
  • 喷绘打印Wide-Format Printer
  • 血压计Blood Pressure Monitor
  • 生化仪Bio-Chemical Analyzer
  • 气压按摩Gas massage products
  • 电解质Electrolyte
  • 实验室设备Lab equipment
  • 美容设备Beauty equipment
  • 洗板设备Microplate Washer
  • 化学分析Chemistry analysis
  • 环境检测Air Sampler
  • 真空吸取Vacuum transfer
  • 止血带Automatic Tourniquet
  • 消毒柜Autoclave

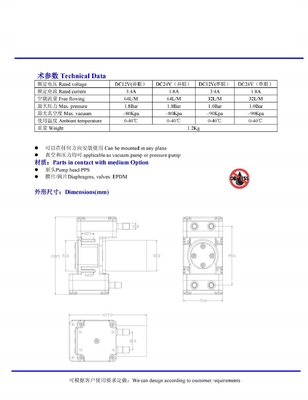

技术参数 Technical Data

额定电压Rated voltage DC12V 并联 DC24V 并联 DC12V 串联 DC24V 串联
额定电流Rated current 3.4A 1.8A 3.4A 1.8A
空载流量Free flowing 64L/M 64L/M 32L/M 32L/M
最大压力Max. pressure 1.8Bar 1.8Bar 1.0Bar 1.0Bar
最大真空度Max. vacuum –80Kpa –80Kpa –90Kpa –90Kpa
使用温度 Ambient temperature 0-40℃ 0-40℃ 0-40℃ 0-40℃
重量Weight 1200g 1200g 1200g 1200g


  • 可以在任何方向安装使用Can be mounted in any plane
  • 真空和压力均可applicable as vacuum pump or pressure pump
  • 材质:Parts in contact with medium Option
  • 泵头Pump head: PPS
  • 活塞杯/阀片Piston, valves: PTFE and EPDM



 AIRJET Air Pump KDA120DCB-TH Series 1

Notes of  micro air pump

  • Do not use this product beyond the limit specified in this specification.
  • When using the brushless motor, be noted that the input power should be constant pressure and filtering.
  • Keep the inlet and outlet clean and smooth , no solid particles.
  • May contain a small amount of water, not solid foreign objects into the pump body.
  • In inlet and outlet of the non-clean,please install air intake filters.
  • The specification of this product is only for your reference
  • The specific  details should check the real products.
  • Products should be made according to customer’s request within the permitted range.
  • Non-professional person should not disassemble this product.
  • Long service life at room temperature environment.
  • Can supply a variety of certifications according to customer’s requests.
  • Please ensure the input voltage meets the specification and make sure the power polarities are connected properly.
  • Connect a filter to the inlet to block dust, fiber,water drops when the operational environment is worse.
  • Use φ4 silicone tube and Connect a silencer to the outlet for noise reduction purpose.
  • Make ventilation holes or slots on the bottom or side of device housing for heat dissipating is strongly recommended.
  • Use a piece of thick sponge or foam to wrap the pump for installation would reduce noise and vibration.
  • To extend the life time, Suggest to design a control circuit include a pressure sensor to let the pump work in intervals.
  • Pack and Store the pump well in clean, temperature and humidity controlled place to avoid rusting of motor.

Application of  micro air pump

  • Electronic products,agriculture,finishing,light industry products
  • Analytic-al instruments
  • Chemical and production engineering
  • Various ancillary equipment
  • Medical Electronics: Blood pressure; negative pressure wound therapy device; oxygen machine; breast pump; the suction machine; ICU monitor; ozone disinfection; etc.
  • Household appliance: Vacuum fresh juice machine; coffee machine; automatic tea; fragrance machines; dryers; fragrant Irons etc.
  • Health Massage: Massage chair; neck massage; aquarium; beauty device etc.
