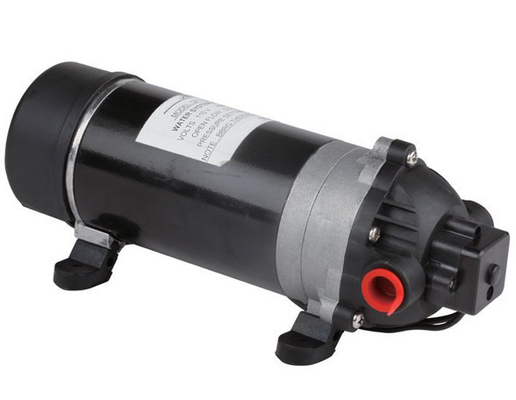

FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min

FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min

FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min
FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min

Large Image :  FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min

Product Details:
Place of Origin: China
Brand Name: FLOWEXPERT
Certification: CE, RoHS
Model Number: KDP-160S
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 60*30*25 cm/carton; 30kg
Delivery Time: 10-15days
Payment Terms: T/T, Western Union, Paypal, Alipay
Supply Ability: 10000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: Electric Power
Pressure: High Pressure Application: Yacht, Caravan, RV
High Light:

Pressure pump

,

diaphragm pump

,

water pump



FLOWEXPERTTM KDP-160S AC 220-240V 160psi Electric High Pressure Three Chamber Diaphram Water Pump



Other names:Yacht pumps, micro DC diaphragm pumps, mini pumps, DC pumps, automatic pump, micro pump, high pressure pump

SURFLO KDP-170S AC 220V 170psi electric high pressure three chamber diaphram water pump





APPLICATIONS



Designed for a wide range of applications:

  • Spraying, misting, filtration, cooling, dispensing and pressure boosting.
  • Small boom and spot spraying; Silage treatment
  • Estate spraying
  • Livestock and poultry cooling
  • Sprayer fixtures (Vehicle-mounted sprayers, electric sprayer)
  • Clean machine, Humidifier, Water purification, Medical apparatus
  • Food beverage filling & liquid transfer
  • Any other pressurization systemDesigned for a wide range of applications.




FEATURES



  • Constructed from a selection of materials suitable for handling a broad range of applications
  • Sealed pressure switch and motor
  • Self-priming up to 8 feet (2.3 m)
  • Can be located above supply tank
  • Can run dry for extended periods without damage
  • Maximum torque and operating efficiency
  • Higher operating pressure and/or lower amperage than competitive pumps Long life, no leaks
  • Low noise; acid, alkali and corrosion resistant
  • Run dry with no problem



FUNCTIONS



  • PUMP Design: 3 chamber diaphragm
  • Motor Design: 12, 24 VDC; 110, 115, 120, 220, 230VAC
  • Pump Head: Glass filled Nylon
  • Elastomers: Diaphragm - Santoprene; Check Valves - EPDM or Viton
  • Max. Flow rate: 5.5lpm (1.5gpm), can be adjusted from 1.0-5.5lpm (0.3-1.5gpm) as required.
  • Max Pressure: 170psi (11.9bar) switch cutoff, can be adjusted from 10psi (0.6bar) to 170psi(11.9bar) as required.
  • Liuid Temperature: 40°F(5°C) Min.; 140°F(60°C) Max.

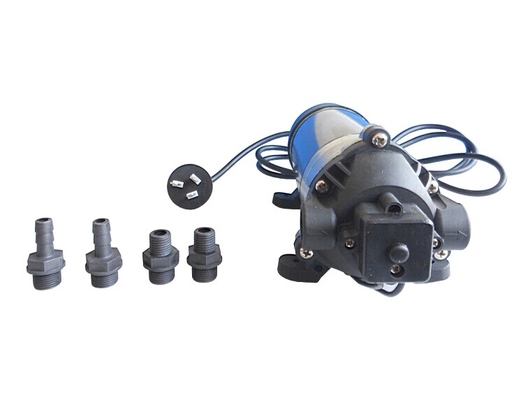

  • Inlet/Outlet fitting:10mm pyramid connector, 3/8" hose barb and thread fitting, etc for your choice.
  • Protection: pressure switch protection: pressure-off protection or circumfluence switch protection. For the powered control you can choose pump without pressure protection.
  • Duty Cycle: Intermittent (under different pressure the continuous working time will also be different).
  • Weight: 7.6 lbs (3.5kg) Max
  • Certifications: CE, RoHS, NSF components.
  • Wiring options: Standard 14 AWG leads
  • Port Size Inlet/Outlet: 3/8" NPTF





STANDARD PUMP CONFIGURATIONS



Model Volts Open Flow
(LPM/GPM)
Cutoff Pressure
(Psi/Bar)

Rated-load

Amps (A)

Max Amps

Draw(A)

Suction
(m)

In/Outlet

Port

Hosing Connectors
KDP-60A 12V DC 4.6/1.2 60/4.2 4.0 5.0 2 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-80A 12V DC 5.3/1.4 80/5.6 4.5 6.0 2 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-100A 12V DC 5.5/1.5 100/6.9 5.0 7.0 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-120A 12V DC 5.5/1.5 120/8.3 5.2 8.0 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-130A 12V DC 5.5/1.5 130/9.0 5.3 8.5 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-160A 12V DC 5.5/1.5 160/11.0 5.5 10.0 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-170A 12V DC 5.5/1.5 170/11.7 5.6 10.5 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-60B 24V DC 4.6/1.2 60/4.2 2.5 3.0 2 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-80B 24V DC 5.3/1.4 80/5.6 2.8 3.5 2 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-100B 24V DC 5.5/1.5 100/6.9 3.0 4.0 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-120B 24V DC 5.5/1.5 120/8.3 3.2 4.5 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-130B 24V DC 5.5/1.5 130/9.0 3.3 4.8 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-160B 24V DC 5.5/1.5 160/11.0 3.5 5.3 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-170B 24V DC 5.5/1.5 170/11.7 3.6 5.5 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-120S 220~240V AC 5.5/1.5 120/8.3 0.32 0.45 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-130S 220~240V AC 5.5/1.5 130/9.0 0.33 0.48 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-160M 110~120V AC 5.5/1.5 160/11.0 0.55 1.0 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-160S 220~240V AC 5.5/1.5 160/11.0 0.35 0.53 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-170M 110~120V AC 5.5/1.5 170/11.7 0.56 1.05 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb
KDP-170S 220~240V AC 5.5/1.5 170/11.7 0.36 0.55 2.3 3/8" NPTF G3/8"+Φ10mm OD Barb



FLOW-PRESSURE CURVE


FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min 2FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min 3
KDP-160/KDP-170:
FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min 4
FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min 5

KDP-160M/KDP-170M:

FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min 6


PUMP STRUCTURE AND DIMENSIONS DRAWING



FLOWEXPERT High Pressure Three Chamber Diaphragm Pump KDP-160S AC 220V 230V 160PSI 5.5L/min 7

2

KEY DESCRIPTION
1 Motor Assembly
2 Piston Set
3 Bearing Cover
4 Diaphragm
5 Check Valve Core Inner
6 Check Valve Base
7 Check Valve Core Outer
8 Upper Housing Assy
9 Pump Screw






CHEMICAL RESISTANCE



Chemical Resistance labels Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
