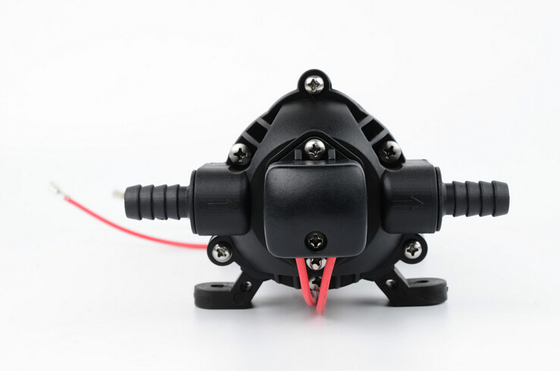

FLOWMASTER SDP-80B DC 24V Electric Diaphragm Pump High Pressure 80PSI 5.8LPM Agricuture Electric Sprayer, RV, Marine

FLOWMASTER SDP-80B DC 24V Electric Diaphragm Pump High Pressure 80PSI 5.8LPM Agricuture Electric Sprayer, RV, Marine
FLOWMASTER SDP-80B DC 24V Electric Diaphragm Pump High Pressure 80PSI 5.8LPM Agricuture Electric Sprayer, RV, Marine

Large Image :  FLOWMASTER SDP-80B DC 24V Electric Diaphragm Pump High Pressure 80PSI 5.8LPM Agricuture Electric Sprayer, RV, Marine

Product Details:
Place of Origin: China
Brand Name: FLOWMASTER
Certification: CE;RoHS
Model Number: SDP-80B
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 60*25*25 cm; 21kg
Delivery Time: 10-15days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 10000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Pressure: High Pressure
Fuel: Electric Power, Solar, Battery Application: Yacht, Caravan, RV



FLOWMASTERTM SDP-80B High Quality Quiet Working Demand Voltage 24V DC Electric Diaphragm Pressure Pump 80PSI 5.8LPM




Other names:Yacht pumps, micro DC diaphragm pumps, mini pumps, DC pumps, automatic pump, micro pump, high pressure pump



APPLICATION



Designed for a wide range of applications:

  • Spraying, misting, filtration, cooling, dispensing and pressure boosting.
  • Small boom and spot spraying; Silage treatment
  • Estate spraying
  • Livestock and poultry cooling
  • Sprayer fixtures (Vehicle-mounted sprayers, electric sprayer)
  • Clean machine, Humidifier, Water purification, Medical apparatus
  • Food beverage filling & liquid transfer
  • Any other pressurization system.



201111151128344761554



FEATURES



1. High torque, high-performance.

2. High pressure, low current.

3. Long life, not leaking diarrhea.

4. Low noise, pumping water and corrosion resistant.

5. Run dry without damage.

6. The motor assembly overheating protection and overpressure protection.



MAIN PERFORMANCE



1. Voltage: DC12V/24V, AC110~120V/220~240V.

2. Maximum flow rate 5.1 l / min, flow can be adjusted depending on demand from 1.0 - 5.1 liters / per minute.

3. Maximum pressure 126PSI (11bar), pressure 10PSI (0.6bar) - 160PSI(11bar) to adjust depending on the demand.

4. Tower connector-10mm connector, 3/8 "screw thread connector or 3/8" pipe joints and other joints.

5. Selectable pressure protection: pressure switch controlling power on/off and reflux switch protection; selectable power control without the pressure security devices. Work: intermittent (continuous work in different work pressure for different operating time).



Features & Benefits

Positive displacement pump
Can run dry
Quiet operation
Industry standard mount pattern
Demand pump
Easy connect fittings



Typical Applications

Agricultural Spraying
General Industrial
Automotive
Marine/RV

PUMP

Type
3 chamber positive
displacement diaphragm
pump, self priming, capable
of being run dry
Mode
demand
Liquid Temperature
140°F (60°C) Max.
Priming Capabilities
6 feet (1.8 m) suction lift
Max Pressure
160 PSI (11 bar)
Inlet/Outlet Ports
5/8" quick attach
Weight
4.5 lbs (1.8 kg)

MOTOR

Duty Cycle
Intermittent
Leads
16 AWG, 4.5" long with
2-Pin connector/Leads

Voltage
DC 12V / DC 24V AC 110V / 220V





STANDARD PUMP CONFIGURATIONS



Model Volts

Open Flow
gpm (lpm)
Pressure
on / off
Amps @
10 psi (0.7 bar)
Strainer
Included
BYPASS Packing Size
(mm)
N.W / G.W
(kg)
SDP - 80A 12 VDC 1.53 (5.8) 80 psi (5.6 bar) 7.5 No YES 335×130×110 1.80 / 2.10
SDP - 80B 24 VDC 1.53 (5.8) 80 psi (5.6 bar) 4.0 No YES 335×130×110 1.80 / 2.10
SDP - 80M 110 VAC 1.85 (7.0) 80 psi (5.6 bar) 1.17 YES YES 335×130×110 2.40 / 2.70
SDP - 80S 220 VAC 1.85 (7.0) 80 psi (5.6 bar) 0.55 YES YES 335×130×110 2.60 / 2.90





Model

Dimensions
(mm)

In/Outlet Hosing Connectors

SDP-80A

227*92*101

5/8" Snap-fit quick attach round port

3/8" (DN12.7mm) Pipe Thread;

3/8" (DN12.7mm) OD Barb

SDP-80B

227*92*101

5/8" Snap-fit quick attach round port

3/8" (DN12.7mm) Pipe Thread;

3/8" (DN12.7mm) OD Barb

SDP-80M 251*98*104 5/8" Snap-fit quick attach round port

3/8" (DN12.7mm) Pipe Thread;

3/8" (DN12.7mm) OD Barb

SDP-80S 251*98*104

5/8" Snap-fit quick attach round port

3/8" (DN12.7mm) Pipe Thread;

3/8" (DN12.7mm) OD Barb



PUMP STRUCTURE AND DIMENSIONS DRAWING

Rubber feet:

FLOWMASTER SDP-80B DC 24V Electric Diaphragm Pump High Pressure 80PSI 5.8LPM Agricuture Electric Sprayer, RV, Marine 1

Ferrous base, rubber support

FLOWMASTER SDP-80B DC 24V Electric Diaphragm Pump High Pressure 80PSI 5.8LPM Agricuture Electric Sprayer, RV, Marine 2

FLOWMASTER SDP-80B DC 24V Electric Diaphragm Pump High Pressure 80PSI 5.8LPM Agricuture Electric Sprayer, RV, Marine 3

FLOWMASTER SDP-80B DC 24V Electric Diaphragm Pump High Pressure 80PSI 5.8LPM Agricuture Electric Sprayer, RV, Marine 4

KEY DESCRIPTION MATERIALS
1 Pressure switch
2 Switch seal
3 Screws
4 Pump head
5 Diaphragm Santoprene
6 Outlet check Valve EPDM
7 Middle body
8 Check valve kit
9 Sway piston
10 Inlet check valve EPDM
11 Bearing kit
12 Rubber support
13 Motor
14 Iron ferrous base



CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
