Product Details:
Payment & Shipping Terms:
|
| Theory: | Vacuum Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Usage: | Water | Power: | Electric |
| Standard Or Nonstandard: | Nonstandard | Pressure: | High Pressure |
| Fuel: | Electric Power,Solar, Battery | Application: | Yacht, Caravan, RV |
Other names: Yacht pumps, micro DC diaphragm pumps, mini pump, DC pump, automatic pump, mini pump, high-pressure self-priming
Main purpose: large electric sprayer, vehicle-mounted sprayers, washing machine, heating, drinking fountains, medical equipment and other ancillary equipment necessary pressure
Pressure pumps can be used in:
Features & BenefitsPositive displacement pump
Typical ApplicationsAgricultural Spraying |
PUMPType |
MOTORDuty Cycle Voltage
DC 12V / DC 24V AC 110V / 220V |

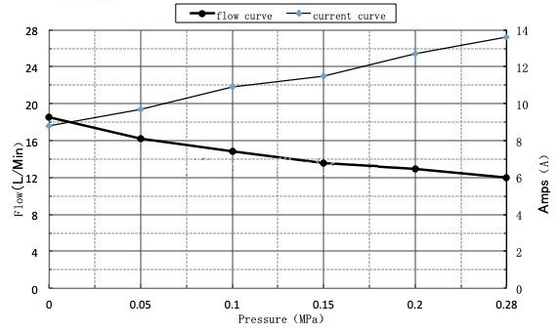

| Model | Volts | GPM/LPM | PSI/BAR | Amps (A) |

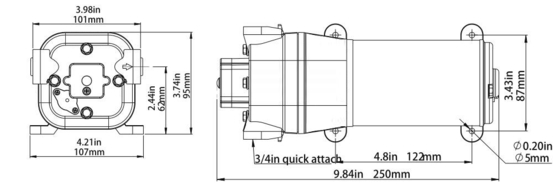

Dimensions (mm) | N/G.Weight (kg) | Strainer | Bypass |
Wire Connections |
| SDP-40A | 12V DC | 4.55/17.2 | 40/2.8 | 6.0 | 248X110.9X99.2 | 2.5/2.8 | YES | YES | 2-Pin/Leads |
| SDP-40B | 24V DC | 4.55/17.2 | 40/2.8 | 3.0 | 248X110.9X99.2 | 2.5/2.8 | YES | YES | 2-Pin/Leads |
| SDP-41A | 12V DC | 4.55/17.2 | 100/7 | 15 | 248X110.9X99.2 | 2.5/2.8 | YES | YES | 2-Pin/Leads |
| SDP-41B | 24V DC | 4.55/17.2 | 100/7 | 7.5 | 248X110.9X99.2 | 2.5/2.8 | YES | YES | 2-Pin/Leads |
| SDP-42 | 24V DC | 4.55/17.2 | 160/11 | 8.0 | 248X110.9X99.2 | 2.5/2.8 | YES | YES | 2-Pin/Leads |
| SDP-40M | 110~120V AC | 4.55/17.2 | 40/2.8 | 0.55 | 277.5X110.9X99.2 | 2.95/3.25 | YES | YES | 3-Pin plug/Leads |
| SDP-40S | 220~240V AC | 4.55/17.2 | 40/2.8 | 1.1 | 277.5X110.9X99.2 | 2.95/3.25 | YES | YES | 3-Pin plug/Leads |
| SDP-42M | 110~120V AC | 4.55/17.2 | 160/11 | 1.6 | 277.5X110.9X99.2 | 2.95/3.25 | YES | YES | 3-Pin plug/Leads |
| SDP-42S | 220~240V AC | 4.55/17.2 | 160/11 | 0.8 | 277.5X110.9X99.2 | 2.95/3.25 | YES | YES | 3-Pin plug/Leads |
Notes: 1. Unit description: GPM: gallons / min, L / min: Liters / min, PSI: pounds / square foot
2. Conversion: 1 gallon (U.S.) = 3.785 liters, 1Mpa = 145PSI = 10.2kg/cm2= 10Bar
| KEY | DESCRIPTION |
| 1 | Motor Assembly |
|
2
|
Piston Set Screw |
| 3 | Cam/Bearing Set Screw |
| 4 | Cam/Bearing Set |
| 5 | Piston, Outer |
| 6 | Bearing Cover |
| 7 | Diaphragm |
| 8 | Piston, Inner |
| 9 | Check Valve Base & Check Valve |
| 10 | O-ring Seal |
| 11 | Ferrules |
| 12 | Hosing Fitting |
| 13 | Upper Housing Assy |
| 14 | Ferrules |
| 15 | Pump Screw |
| Chemical Resistance labels | Max Temperature Resistance Code |
|
A —— Excellent B —— Good C —— Ordinary × —— Unacceptable － —— Unusable |
1 —— 20℃(68F) 2 —— 40℃(104F) 3 —— 60℃(140F) 4 —— 80℃(176F) 5 —— 100℃(212F) 6 —— 120℃(248F) |
| CHEMICAL | MATERIAL | |||||||
| PP | PTFE | FKM | NBR | EPDM | 95 Ceramic | |||
| Sulfuric Acid | 0-10% | A4 | A6 | A6 | B2 | A4 | A5 | |
| 10-75% | A3 | A6 | A4 | X | A3 | A5 | ||
| 75-100% | B2 | A4 | A4 | － | B2 | A5 | ||
| Nitric Acid | 10% | A3 | A5 | A5 | X | A2 | A5 | |
| 30% | A2 | A6 | A6 | X | A2 | A5 | ||
| 50% | B2 | A3 | A1 | X | X | A5 | ||
| Hydrochloric Acid | 0-25% | A4 | A6 | A3 | B1 | C3 | A5 | |
| 25-40% | A4 | A6 | A2 | X | C2 | A5 | ||
| Hydrofluoric Acid | 10% | B2 | A6 | A3 | X | A3 | － | |
| 30% | C2 | A6 | A4 | － | B3 | － | ||
| 60% | X | A6 | A4 | － | C2 | － | ||
| Acetic Acid | 20% | A2 | A6 | B1 | B2 | A2 | A5 | |
| 80% | B1 | A6 | X | － | － | A5 | ||
| Sodium Hydroxide | 20% | A3 | A6 | B1 | B2 | A3 | － | |
| 50% | A3 | A6 | X | B1 | A4 | － | ||
| Bromine Water | C1 | A3 | A2 | － | X | A1 | ||
| Ethyl Alcohol | A2 | A3 | A3 | X | B3 | A3 | ||
| Acetone | A2 | A6 | X | － | B2 | A3 | ||
| Freon 12 | X | A6 | A1 | X | B1 | A4 | ||
| Aluminum Chloride | A4 | A6 | A5 | B4 | A4 | A4 | ||
| Ammonia Liquid | A1 | A6 | C1 | B4 | B3 | A3 | ||
| Aqua Regia | C2 | A5 | B2 | － | C2 | A4 | ||
| Formaldehyde | A4 | A6 | A4 | X | A4 | A4 | ||
| Gasoline | X | A6 | B3 | B3 | X | A4 | ||
| Kerosene | A1 | A6 | A1 | B1 | X | A4 | ||
| Methyl Alcohol | A3 | A6 | B2 | B4 | A3 | A5 | ||
| Toluene | C1 | A4 | B1 | － | X | A5 | ||
| Trichloroethylene | C1 | A6 | A1 | － | X | A4 | ||
| Xylene | X | A6 | B1 | － | X | A5 | ||
| Nitric Acid Anhydrous | C1 | A3 | A1 | － | X | A5 | ||
| Oleum | X | A6 | A4 | － | X | A5 | ||
| Potassium Hydroxide | A4 | A6 | B1 | C2 | A5 | － | ||
Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
