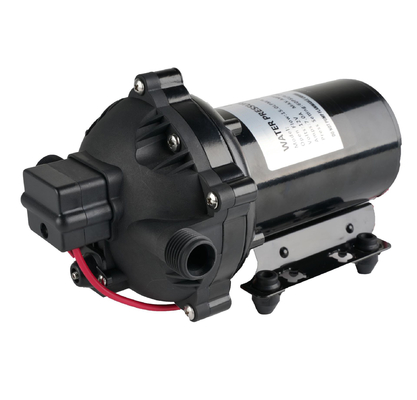

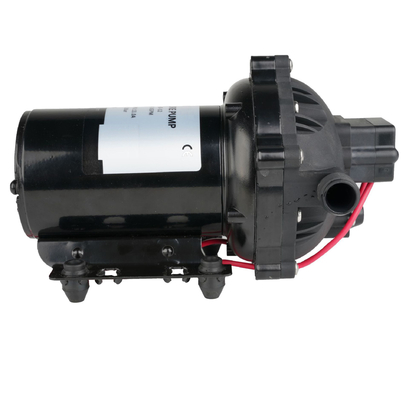

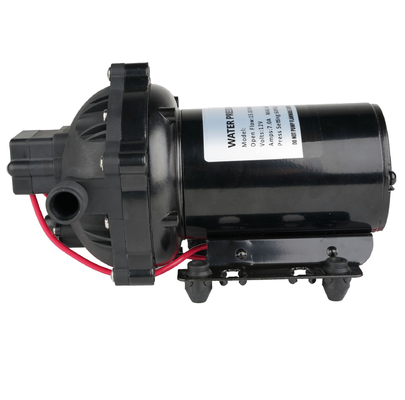

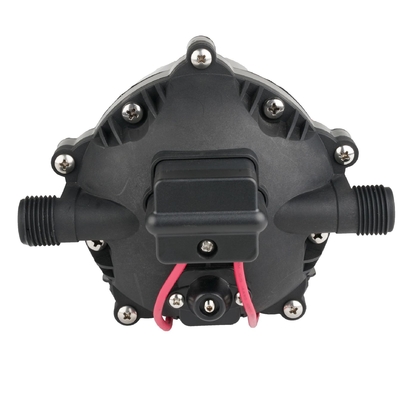

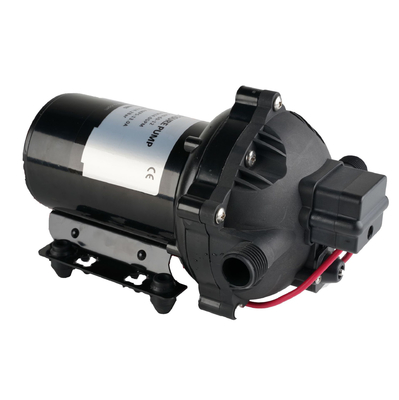

FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture

FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture

FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture
FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture

Large Image :  FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture

Product Details:
Place of Origin: China
Brand Name: FLOWEXPERT
Certification: CE, RoHS, ISO 90001:2008
Model Number: KDP-53
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 60*30*25 cm/carton; 40kg
Delivery Time: 10-15days
Payment Terms: T/T, Western Union, Paypal, Alipay
Supply Ability: 10000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: DC Power
Pressure: High Pressure Application: Washing, Spraying, Misting



FLOWEXPERTTM Electric Motor Driven High Flow 18.9LPM Diaphragm Pump KDP-53 Five Positive Chamber DC 12V 24V with Pressure Switch

FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture 0





5 Chamber Diaphragm Pump

Max. Flow Rate:18.9LPM

Suitable for 12V/24V.



FEATURES

  • Pump with Internal bypass
  • Pump with self-priming function
  • Dry without damage
  • Duty Cycle: Intermittent



SPECIFICATIONS

MODEL RATED VOLTS

OPENFLOW

(GPM/LPM)

CONTROL RATED AMPS CUTOFF (PSI/BAR) VALVE DIAPHRAGM HOSING PORT WIRE CONNECTION
KDP53-G30-60-12 12V 3.0 / 11.5 Pressure Switch / Bypass 10.0A 60 / 4.2 EPDM Santoprene 1/2"MNPT 2 Leads/EU Plug
KDP53-G30-60-24 24V 3.0 / 11.5 Pressure Switch / Bypass 5.5A 60 / 4.2 EPDM Santoprene 1/2"MNPT 2 Leads/EU Plug
KDP53-G40-60-12 12V 4.0 / 15.0 Pressure Switch / Bypass 13.0A 60 / 4.2 EPDM Santoprene 1/2"MNPT 2 Leads/EU Plug
KDP53-G40-60-24 24V 4.0 / 15.0 Pressure Switch / Bypass 7.0A 60 / 4.2 EPDM Santoprene 1/2"MNPT 2 Leads/EU Plug
KDP53-G50-60-12 12V 5.0 / 18.9 Pressure Switch / Bypass 17.0A 60 / 4.2 EPDM Santoprene 1/2"MNPT 2 Leads/EU Plug
KDP53-G50-60-24 24V 5.0 / 18.9 Pressure Switch / Bypass 9.0A 60 / 4.2 EPDM Santoprene 1/2"MNPT 2 Leads/EU Plug
KDP53-G50-70-12 12V 5.0 / 18.9 Pressure Switch / Bypass 18.0A 70 / 4.8 EPDM Santoprene 1/2"MNPT 2 Leads/EU Plug
KDP53-G50-70-24 24V 5.0 / 18.9 Pressure Switch / Bypass 10.0A 70 / 4.8 EPDM Santoprene 1/2"MNPT 2 Leads/EU Plug

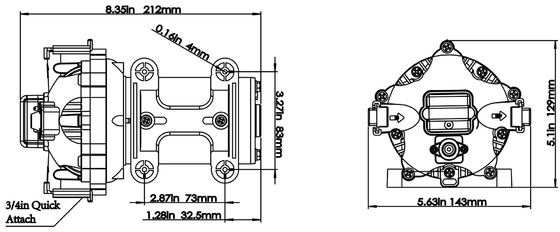

DIMENSIONS DRAWINGS

FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture 1FLOWEXPERT Electric Diaphragm Pump KDP-53 High Flow 18.9L/Min 70PSI for RV, Marine, Agriculture 2

CHEMICAL RESISTANCE



Chemical Resistance labels Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
