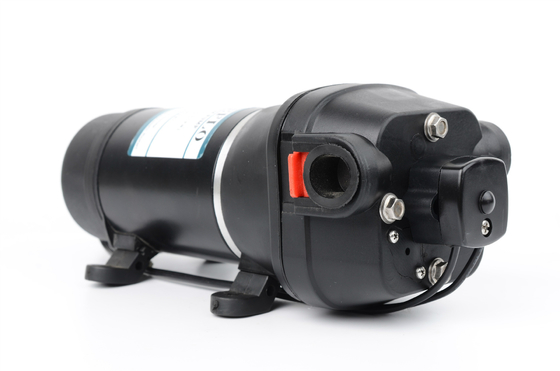

FLOWMASTERTM Compact Heavy Duty AC 110-120V Electric Four Chamber Diaphragm Pump SDP-35M



  FLOWMASTER 110-120V AC Automatic Diaphragm Pump SDP-35M 1.25LPM/3.3GPM 35PSI cutoff switch control for general purpose 0



APPLICATION



  • Pressure pumps can be used in:
  • Yacht / RV/Caravan pressurized water system
  • Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
  • Clean machine, Humidifier, Water purification, Medical apparatus
  • Food beverage filling & liquid transfer
  • Any other pressurization system




FEATURES


•  Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes.
•  Compact design and plug-in port fittings make installation easy.
•  Can run dry without damage and handle liquids up to 130° F (54° C).
•  No metal contact with liquid being pumped.
•  Ball bearing drive throughout pump and motor assures longer pump life.
•  Excellent self-priming capability. Pump may be located above the liquid level.
•  Powerful, permanent magnet motor with low current draw and long life brushes.
 Motor: Permanent Magnet, Ball Bearing.
•  Pump Design: Diaphragm
•  Pump:  Four chamber diaphragm design;
          Self-priming up to 10 ft. suction lift;
          Pump able to run dry without damage;
          Removable port to hose connectors.
•  Includes bypass valve which greatly reduces pulsating
•  water and pressure switch chatter
•  Self-primes up to 2.4m vertical lift
•  Four-piston design delivers higher flow rates
•  Runs dry without harm to the pump
•  Provides quiet operation and smooth flow
•  Includes plug-in ports for easy installation:
    One 1/2" (13mm) - 14 pipe Straight Quad port
    One 1/2" (13mm) hose barb Straight Quad port
    One 1/2" (13mm) hose barb 90° Elbow Quad port
    One 1/2" (13mm) Barb Quad Port 90° Strainer
•  Install a water strainer to protect pump from debris



Features & Benefits
Positive displacement pump
Can run dry
Quiet operation
Industry standard mount pattern
Demand pump
Easy connect fittings

Typical Applications
Agricultural Spraying
General Industrial
Automotive
Marine/RV

PUMP

Type
4 chamber positive displacement diaphragm pumpself priming, capable of being run dry
Mode
demand
Liquid Temperature
140°F (60°C) Max.
Priming Capabilities
6 feet (1.8 m) suction lift
Max Pressure
17/35 PSI (2.4 bar)
Inlet/Outlet Ports
Quick Attach
Weight
4.0 lbs (1.80 kg)

MOTOR

Duty Cycle
Intermittent
Leads
16 AWG, 4.5" long with
2-Pin connector/Leads

Voltage

DC 12V/24V, AC 100-120V/220-240V



STANDARD PUMP CONFIGURATIONS



Model Volts Open Flow
gpm (lpm)
Pressure
on / off psi(bar)
Amps Strainer
Included
Dimensions
(mm)
N.W / G.W
(kg)
BYPASS
SDP-30A 12V DC 2.8 (10) 17 psi (1.2 bar) 2.2A Yes 209×110.9×99.2 1.90/2.20 Yes
SDP-30B 24V DC 2.8 (10) 17 psi (1.2 bar) 1.5A Yes 209×110.9×99.2 1.90/2.20 Yes
SDP-35A 12V DC 3.3 (12.5) 35 psi (2.4 bar) 3.9A Yes 209×110.9×99.2 1.90/2.20 Yes
SDP-35B 24V DC 3.3 (12.5) 35 psi (2.4 bar) 2.0A Yes 209×110.9×99.2 1.90/2.20 Yes
SDP-35M 110~120V AC 3.3 (12.5) 35 psi (2.4 bar) 0.8A Yes 238.5×110.9×99.2 2.25/2.50 Yes
SDP-35S 220~240V AC 3.3 (12.5) 35 psi (2.4 bar) 0.4A Yes 238.5×110.9×99.2 2.25/2.50 Yes
SDP-100A 12V DC 3.3 (12.5) 100 psi (7.0 bar) 5A Yes 209×110.9×99.2 1.90/2.20 Yes
SDP-100B 24V DC 3.3 (12.5) 100 psi (7.0 bar) 2.5A Yes 209×110.9×99.2 1.90/2.20 Yes



HOSING FITTINGS



1





DIMENSIONS



FLOWMASTER 110-120V AC Automatic Diaphragm Pump SDP-35M 1.25LPM/3.3GPM 35PSI cutoff switch control for general purpose 3



INSTALLATION



 FLOWMASTER 110-120V AC Automatic Diaphragm Pump SDP-35M 1.25LPM/3.3GPM 35PSI cutoff switch control for general purpose 4

FLOWMASTER 110-120V AC Automatic Diaphragm Pump SDP-35M 1.25LPM/3.3GPM 35PSI cutoff switch control for general purpose 5

FLOWMASTER 110-120V AC Automatic Diaphragm Pump SDP-35M 1.25LPM/3.3GPM 35PSI cutoff switch control for general purpose 6



EXPLODED VIEW



FLOWMASTER 110-120V AC Automatic Diaphragm Pump SDP-35M 1.25LPM/3.3GPM 35PSI cutoff switch control for general purpose 7

FLOWMASTER 110-120V AC Automatic Diaphragm Pump SDP-35M 1.25LPM/3.3GPM 35PSI cutoff switch control for general purpose 8

KEY   DESCRIPTION
1   Motor Assembly
2
  Piston Set Screw
3   Cam/Bearing Set Screw
4   Cam/Bearing Set
5   Piston, Outer
6   Bearing Cover
7   Diaphragm
8   Piston, Inner
9   Check Valve Base & Check Valve
10   O-ring Seal
11   Ferrules
12   Hosing Fitting
13   Upper Housing Assy
14   Ferrules
15   Pump Screw





CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
