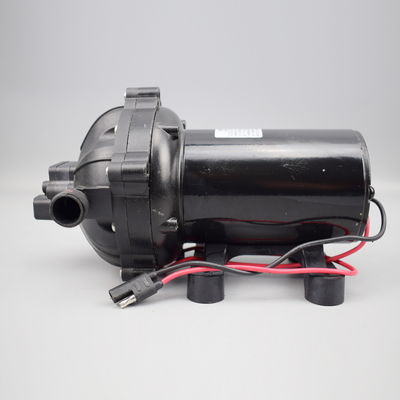

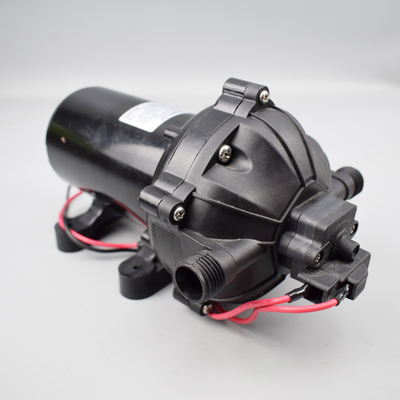

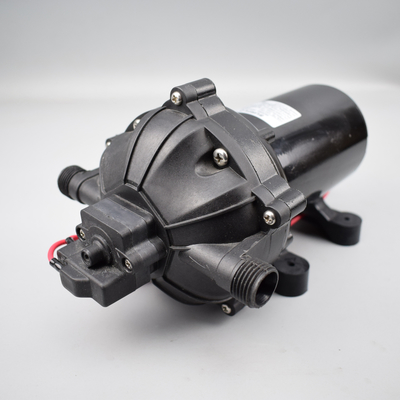

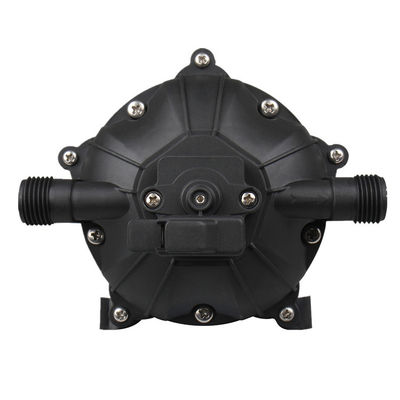

FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer

FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer
FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer

Large Image :  FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer

Product Details:
Place of Origin: China
Brand Name: FLOWKING
Certification: CE;RoHS
Model Number: KFL-51
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 1pc/inner color box;10pcs/ctn; Seaworthy strong cartons; 64*39*22.5 cm/ctn; 28kg/ctn
Delivery Time: 10-15days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 50,000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: Electric Power, Solar, Battery
Application: Yatch, Caravan, RV/Marine/Industry Pressure: 60PSI
Voltage: 12V 24V 110-120V 220-240V Flow: 5.0GPM (19LPM)
Color: Black/Blue/Orange Or As Requested Rated Current: 15A Max
Factory: OEM/ODM



FLOWKINGTM High Flow 18.9LPM/5.0GPM Five Chamber Diaphragm Water Pump 12 24 Volt DC for Marine RV Agriculture and Washer






FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer 0



APPLICATIONS



  • Agriculture/Yacht / RV/Caravan pressurized water system
  • Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
  • Cleaning machine, Humidifier, Water purification, Medical apparatus
  • Any other pressurization system



Materials of Construction


Housings: Polypropylene
Valves: Viton
Diaphragm: Santoprene
Fasteners: Stainless Steel
Motor Shell:

Coated Steel





Pump



Motor Voltage 12/24V DC
Type 5 chamber diaphragm pump, self priming, capable of being run dry
Mode Demand
Certifications Option CE Approval
Liquid Temperature 140°F (60°C) Max.
Priming Capabilities 6 feet (1.8 m)
Max Pressure 70psi (4.8bar)
Max Flow rate 18.9lpm (5.0gpm)
Temperature Limits: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180°F (82°C).

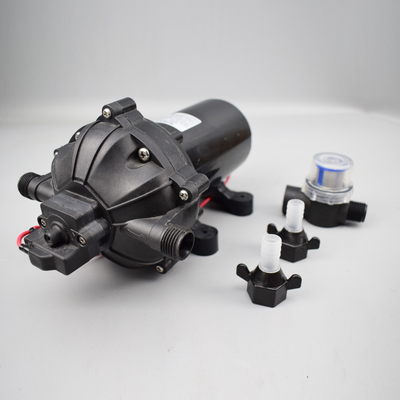

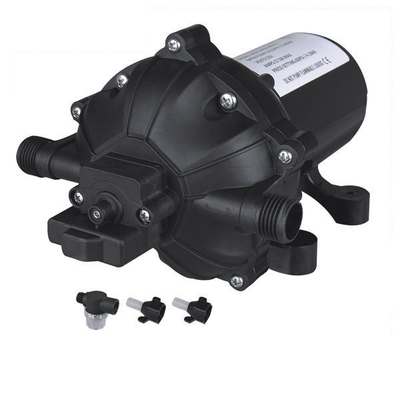

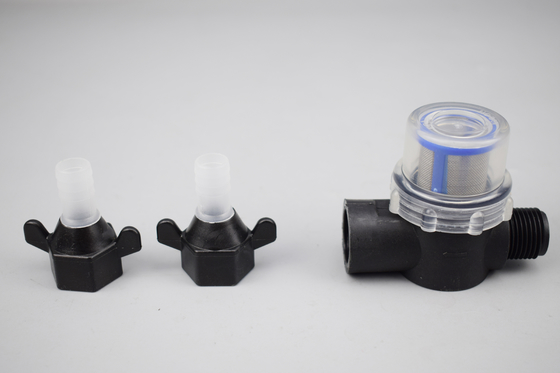

Inlet/Outlet Ports 10/13mm pyramid hose barb, 13mm angle hose barb, 1/2 NPT thread filter for your choice.
Duty Cycle Continous(under different pressure the continuous working time will also be different)
Motor options 2 pin connector
On/off switch



STANDARD PUMP CONFIGURATIONS



Model Voltage GPM/LPM PSI/BAR Max Draw(A) Valves Diaphragm Port Options Switch Wire Connections
KFL51-3060A 12V DC 3.0/11.3 60/4.1 12 Viton Santoprene 1/2"-14 MNPT; 3/4" quick attach Yes 2-Pin/Leads
KFL51-3060B 24V DC 3.0/11.3 60/4.1 6 Viton Santoprene 1/2"-14 MNPT; 3/4" quick attach Yes 2-Pin/Leads
KFL51-4060A 12V DC 4.0/15.1 60/4.1 15 Viton Santoprene 1/2"-14 MNPT; 3/4" quick attach Yes 2-Pin/Leads
KFL51-4060B 24V DC 4.0/15.1 60/4.1 7 Viton Santoprene 1/2"-14 MNPT; 3/4" quick attach Yes 2-Pin/Leads
KFL51-5060A 12V DC 5.0/18.9 60/4.1 17 Viton Santoprene 1/2"-14 MNPT; 3/4" quick attach Yes 2-Pin/Leads
KFL51-5060B 24V DC 5.0/18.9 60/4.1 9 Viton Santoprene 1/2"-14 MNPT; 3/4" quick attach Yes 2-Pin/Leads





Consult factory for other available models



FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer 1



PUMP PERFORMANCE



3.0 GPM   4.0 GPM   5.0 GPM
PSI BAR GPM LMP Amps PSI BAR GPM LMP Amps PSI BAR GPM LMP Amps
OPEN 0 3.2 12.4 6.2 OPEN 0 4 15.44 6.6 OPEN 0 5.1 19.7 9.6
10 0.68 2.92 11.3 8 10 0.68 3.72 14.36 8 10 0.68 4.2 16.2 11.4
20 1.36 2.55 9.84 9.1 20 1.36 3.45 13.32 9.3 20 1.36 3.52 13.59 12.7
30 2.04 2.17 8.38 10.1 30 2.04 3.01 11.62 10.2 30 2.04 3.05 11.77 14.2
40 2.72 1.89 7.38 11.1 40 2.72 2.89 11.18 11.4 40 2.72 2.61 10.07 15.4
50 3.4 1.61 6.21 12 50 3.4 1.93 7.45 12.6 50 3.4 2.24 8.65 16.3
60 4.08 OFF 0 0 60 4.08 OFF 0 0 60 4.08 OFF 0 0



FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer 2

FLOWKING Electric Diaphragm Pump KFL-51 series DC 12V/24V High Flow 18.9L/Min 60PSI for RV Marine Agriculture sprayer 3





CHEMICAL RESISTANCE



Chemical Resistance labels Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
