Product Details:
Place of Origin: China
Brand Name: FLOWEXPERT
Certification: CE, RoHS
Model Number: KDP-23-24
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: 60*30*25 cm/carton; 32kg
Delivery Time: 10-15days
Payment Terms: T/T, Western Union, Paypal, Alipay
Supply Ability: 10000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: Electric Power, Solar, Battery
Pressure: High Pressure Application: Washing, Spraying, Misting

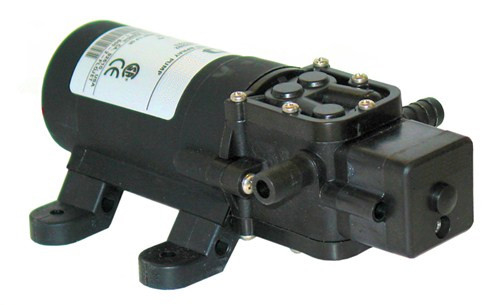

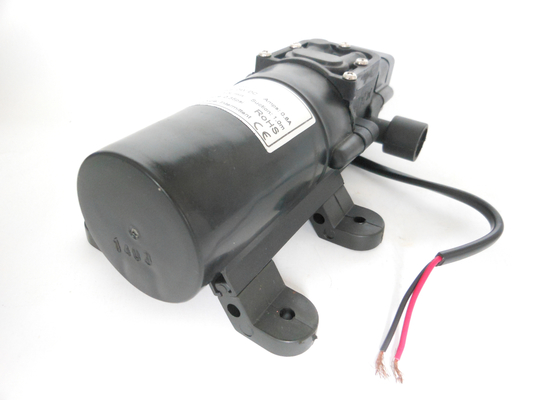

FLOWEXPERTTM KDP-23-24 Automatic Water System DC Electric Miniature Diaphragm Pump with Long Life DC Permanent Magnet Brush Motor Bypass and Pressure Switch Control





FLOWEXPERT Automatic 12V 24V DC Electric Diaphragm Pump KDP-23-24 for Agriculture Sprayer 0









Other names
Yacht pumps, micro DC diaphragm pumps, mini pumps, DC pumps, automatic pump, micro pump, high
pressure pump



TYPICAL APPLICATIONS

  • Sprayer fixtures (Vehicle-mounted sprayers, electric sprayer)
  • Clean machine, Humidifier, Water purification, Medical apparatus
  • Food beverage filling & liquid transfer
  • Any other pressurization system

FLOWEXPERT Automatic 12V 24V DC Electric Diaphragm Pump KDP-23-24 for Agriculture Sprayer 1

FLOWEXPERT Automatic 12V 24V DC Electric Diaphragm Pump KDP-23-24 for Agriculture Sprayer 2

FLOWEXPERT Automatic 12V 24V DC Electric Diaphragm Pump KDP-23-24 for Agriculture Sprayer 3



FEATURES



  • Compact Design Measuring 6.4" (162 mm) in Length
  • Fully Automatic Demand Pump
  • Self-priming and Can Operate Dry Without Damage
  • Built-in Thermal Protector
  • Sealed Pressure Switch and Motor
  • Flow Rates to 1.2 GPM (4.3 L/min.) and Operating Pressures to 70 PSI (4.8 bar)
  • Compact automatic demand pump.
  • Sealed pressure switch automaticatly starts and stops pump when discharge valve is opened and closed.
  • Self-prlming so pump can be located above supply tank.
  • Can run dry for extended periods of time without damage.
  • Built-in thermal protector
  • Low amp draw for battery powered applications.
  • Soft compliant Santoprene mounting system.



Features & Benefits

Compact design

Heavy-duty

Demand switch

Can run dry

Quiet operation

Industry standard mount pattern



Typical Applications

Marine/RV

Water treatment/Ro

Beverage/Food service

Distillation equipment

Agricultural spraying

General Industrial

Automotive

PUMP

Type
2 Chamber positive displacement diaphragm pump, self priming; capable of being run dry.

Max Recommended Temperature
110°F (43°C) Max.

Priming Capabilities
4 feet (1.2 m) suction lift

Max Pressure
40PSI (2.8bar)

Inlet/Outlet Ports
3/8" hose barb

Weight
1.25 lbs (0.57 kg)



MOTOR

Duty Cycle
Intermittent

Leads
18 AWG, 13.78" long with 2-Pin connector/Leads

Voltage
12v/24v




DIMENSIONS



KDP-23 series multi-inlet & outlet connection ways for your choice
FLOWEXPERT Automatic 12V 24V DC Electric Diaphragm Pump KDP-23-24 for Agriculture Sprayer 4




SPECIFICATIONS



Model
Volt(V)
Flow
(lpm/gpm)
Pressure
(psi/bar)
Amp Draw
(A)
Max Draw
(A)
Packing Size
(mm)
N.W/G.W
(Kg)
KDP-2301
12V
2.0/0.5
55/3.8
0.7A
1.6A
185*110*65
0.62/0.72kg
KDP-2302
12V
3.8/1.0
35/2.4
1.6A
2.5A
185*110*65
0.62/0.72kg
KDP-2303
12V
4.3/1.1
35/2.4
1.7A
2.7A
185*110*65
0.62/0.72kg
KDP-2304
12V
2.6/0.7
70/4.8
1.0A
2.1A
185*110*65
0.62/0.72kg
KDP-2305
12V
3.1/0.8
70/4.8
1.3A
2.6A
185*110*65
0.62/0.72kg
KDP-2306
12V
4.3/1.1
70/4.8
1.5A
3.0A
185*110*65
0.62/0.72kg
KDP-2307 12V 5.0/1.3 100/6.9 3.0A 6.0A 195*110*65 0.96/1.25kg
KDP-2308 12V 5.0/1.3 120/8.3 4.0A 8.0A 195*110*65 0.96/1.25kg
KDP-2309 12V 5.0/1.3 145/10 5.0A 10.0A 195*110*65 0.96/1.25kg
KDP-2401
24V
2.0/0.5
55/3.8
0.3A
0.8A
185*110*65
0.62/0.72kg
KDP-2402
24V
3.8/1.0
35/2.4
1.0A
1.4A
185*110*65
0.62/0.72kg
KDP-2403
24V
4.3/1.1
35/2.4
1.1A
1.6A
185*110*65
0.62/0.72kg
KDP-2404
24V
2.6/0.7
70/4.8
0.6A
1.1A
185*110*65
0.62/0.72kg
KDP-2405 24V 3.1/0.8 70/4.8 0.7A 1.3A 185*110*65 0.62/0.72kg
KDP-2406
24V
4.3/1.1
70/4.8
1.0A
1.3A
185*110*65
0.62/0.72kg
KDP-2407 24V 5.0/1.3 100/6.9 1.5A 3.0A 195*110*65 0.96/1.25kg
KDP-2408 24V 5.0/1.3 120/8.3 2.0A 4.0A 195*110*65 0.96/1.25kg
KDP-2409 24V 5.0/1.3 145/10 2.5A 5.0A 195*110*65 0.96/1.25kg

Notes: 1. Unit description: GPM: gallons / min, L / min: Liters / min, PSI: pounds / square foot
2. Conversion: 1 gallon (U.S.) = 3.785 liters, 1Mpa = 145PSI = 10.2kg/cm = 10Bar





PRESURE-FLOW CURVE



FLOWEXPERT Automatic 12V 24V DC Electric Diaphragm Pump KDP-23-24 for Agriculture Sprayer 5



CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
