Product Details:
Payment & Shipping Terms:
|
| Theory: | Vacuum Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Usage: | Water | Power: | Electric |
| Standard Or Nonstandard: | Nonstandard | Fuel: | Electric Power |
| Pressure: | High Pressure | Application: | Boostering |

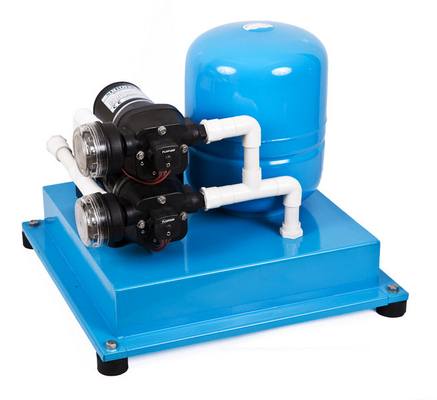

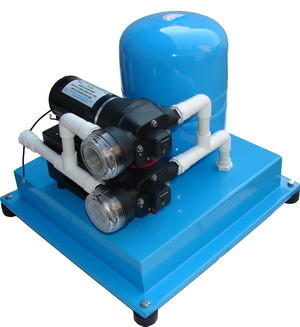

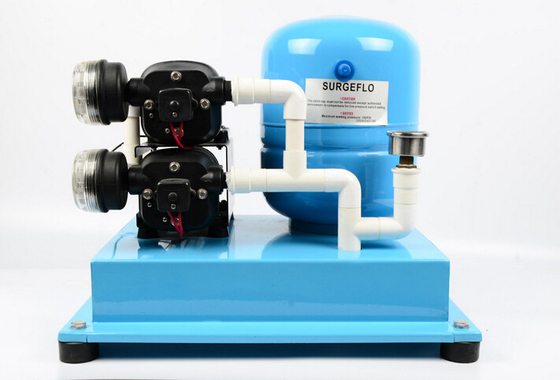

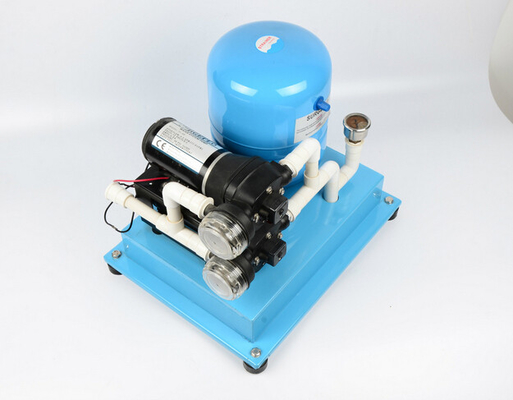

FLOWMASTERTM Water Booster Systems are designed to provide a constant water pressure of 0 to 40 psi (0.7 to 2.7 bar) and a maximum flow rate of 9.0 gpm at 10 psi (0.7 bar). The pump is fully automatic, with built in inlet strainer, pressure switch, and check valve, and supplies smooth flow from trickle to full flow. Typical uses include applications where available water pressure is very low, and fluctuates widely. Easy installation requires only that the water lines be connected, and the power cord plugged in.
Integrated pump and accumulator tank system
Compact design installs easily in convenient locations
Available in 12, 24, 115 and 230 Volts models to service the RV,
Bus Conversion and Commercial Coach markers etc...
Can run dry without harm
FDA materials in pump and accumulator tank for drinking water
Self-priming up to 6ft. (2m)
Includes assorted ports for easy installation
Install a water strainer to protect pump from debris
| Model | Volts dc / ac |
Open Flow gpm (lpm) |
Pressure Shut Off |
Amps @ 10 psi (0.7 bar) |
Strainer Included |
Packing Size (mm) |
N.W / G.W (kg) |
| SDP-35AX | 12 Vdc | 6.6 (25.0) | 35 psi (2.4 bar) | 7.8 | √ | 510×510×400 | 11.68 / 13.68 |
| SDP-35BX | 24 Vdc | 6.6 (25.0) | 35 psi (2.4 bar) | 4.0 | √ | 510×510×400 | 11.68 / 13.68 |
| SDP-35MX | 115 Vac | 6.6 (25.0) | 35 psi (2.4 bar) | 1.0 | √ | 510×510×400 | 12.20 / 14.30 |
| SDP-35SX | 230 Vac | 6.6 (25.0) | 35 psi (2.4 bar) | 0.8 | √ | 510×510×400 | 12.20 / 14.30 |
| SDP-40AX | 12 Vdc | 9.0 (34.0) | 40 psi (2.8 bar) | 12.0 | √ | 510×510×400 | 12.40 / 14.40 |
| SDP-40BX | 24 Vdc | 9.0 (34.0) | 40 psi (2.8 bar) | 5.0 | √ | 510×510×400 | 12.40 / 14.40 |
| SDP-40MX | 115 Vac | 9.0 (34.0) | 40 psi (2.8 bar) | 1.0 | √ | 510×510×400 | 13.30 / 15.30 |
| SDP-40SX | 230 Vac | 9.0 (34.0) | 40 psi (2.8 bar) | 0.8 | √ | 510×510×400 | 13.30 / 15.30 |
Accumulator Tank: 1.3 gallon (5.0 liter) & 2.1 gallon (8.0 liter)
Accumulator Tank Colors: Blue, White and Red
