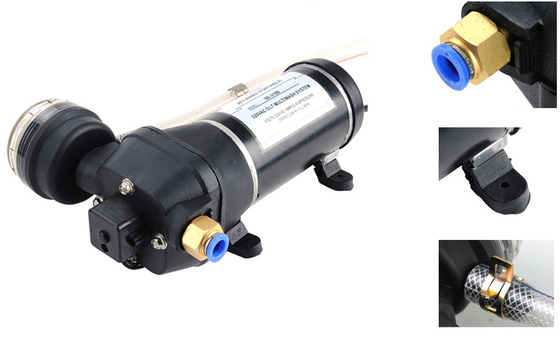

FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI

FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI
FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI

Large Image :  FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI

Product Details:
Place of Origin: China
Brand Name: FLOWMASTER
Certification: CE;RoHS
Model Number: SDP-40M/S
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 60*30*25 cm; 30kg
Delivery Time: 10-15days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 5000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Diaphragm Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Pressure: High Pressure
Fuel: Electric Power,Solar, Battery Application: Yacht, Caravan, RV



FLOWMASTERTM AC 220/110V 50/60Hz Micro Diaphragm Pump 17LPM 40-145PSI



Other names: Yacht pumps, micro DC diaphragm pumps, mini pump, DC pump, automatic pump, mini pump, high-pressure self-priming

Main purpose: large electric sprayer, vehicle-mounted sprayers, washing machine, heating, drinking fountains, medical equipment and other ancillary equipment necessary pressure





FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI 0



APPLICATIONS


Pressure pumps can be used in:

  • Yacht / RV/Caravan pressurized water system
  • Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
  • Clean machine, Humidifier, Water purification, Medical apparatus
  • Food beverage filling & liquid transfer
  • Any other pressurization system

201111151111528215106



FEATURES



  • DC permanent magnet drive, Wide torsion.
  • Large flow rate.
  • High pressure.
  • Smooth flow. No leakage and smooth operation. Four Chamber positive displacement diaphragm pump for smooth and quiet operation.
  • Dry running capability. Durable and long lifetime.
  • Duty Cycle: Intermittent (under different pressure, the continuous working time will also be different).
  • Thermally protected, Medium temperature up to 60°C
  • Built-in pressure switch and Overflow drain valve
  • Soft noise absorbing mounts
  • Snap-fit port fittings
  • Corrosion resistant materials
  • Sealed switch and co-moulded diaphragm eleminates leak paths, extending life by up to 50%
  • Meets USCG Regulation 183.410 and ISO 8846 MARINE (ignition protection)
  • Meets EN 50081-1 Electro-magnetic Compatibility
  • Portable and simple Installation

Features & Benefits

Positive displacement pump
Can run dry
Quiet operation
Industry standard mount pattern
Demand pump
Easy connect fittings



Typical Applications

Agricultural Spraying
General Industrial
Automotive
Marine/RV

PUMP

Type
4 chamber positive
displacement diaphragm
pump, self priming, capable
of being run dry
Model
demand
Liquid Temperature
140°F (60°C) Max.
Priming Capabilities
6 feet (1.8 m) suction lift
Max Pressure
40 PSI (2.8 bar)
Inlet/Outlet Ports
Quick Attach strainer, 3/4" hose barb
Weight
5.0 lbs (2.30 kg)

MOTOR

Duty Cycle
Intermittent
Leads
16 AWG, 4.5" long with
2-Pin connector/Leads

Voltage
DC 12V / DC 24V AC 110V / 220V





STANDARD PUMP CONFIGURATIONS



Model Volts GPM/LPM PSI/BAR Amps
(A)
Dimensions (mm) N/G.Weight (kg) Strainer Bypass

Wire

Connections

SDP-40A 12V DC 4.55/17.2 40/2.8 6.0 248X110.9X99.2 2.5/2.8 YES YES 2-Pin/Leads
SDP-40B 24V DC 4.55/17.2 40/2.8 3.0 248X110.9X99.2 2.5/2.8 YES YES 2-Pin/Leads
SDP-41A 12V DC 4.55/17.2 100/7 15 248X110.9X99.2 2.5/2.8 YES YES 2-Pin/Leads
SDP-41B 24V DC 4.55/17.2 100/7 7.5 248X110.9X99.2 2.5/2.8 YES YES 2-Pin/Leads
SDP-42 24V DC 4.55/17.2 160/11 8.0 248X110.9X99.2 2.5/2.8 YES YES 2-Pin/Leads
SDP-40M 110~120V AC 4.55/17.2 40/2.8 0.55 277.5X110.9X99.2 2.95/3.25 YES YES 3-Pin plug/Leads
SDP-40S 220~240V AC 4.55/17.2 40/2.8 1.1 277.5X110.9X99.2 2.95/3.25 YES YES 3-Pin plug/Leads
SDP-42M 110~120V AC 4.55/17.2 160/11 1.6 277.5X110.9X99.2 2.95/3.25 YES YES 3-Pin plug/Leads
SDP-42S 220~240V AC 4.55/17.2 160/11 0.8 277.5X110.9X99.2 2.95/3.25 YES YES 3-Pin plug/Leads

Notes: 1. Unit description: GPM: gallons / min, L / min: Liters / min, PSI: pounds / square foot

2. Conversion: 1 gallon (U.S.) = 3.785 liters, 1Mpa = 145PSI = 10.2kg/cm2= 10Bar



PRESSURE-FLOW CURVE



Pressure-psi

0

40

50

60

70

80

90

100

Flow-gpm

5

3.6

3.2

2.78

2.56

2.4

2.06

1.7

high pressure DC electric micro diaphragm pump 24V Water System Pump

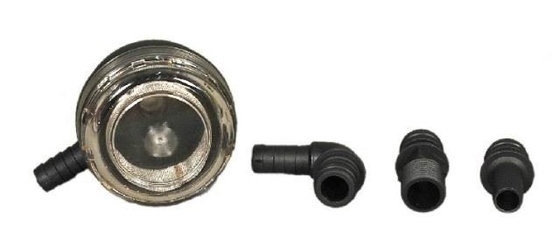

HOSING FITTINGS



1

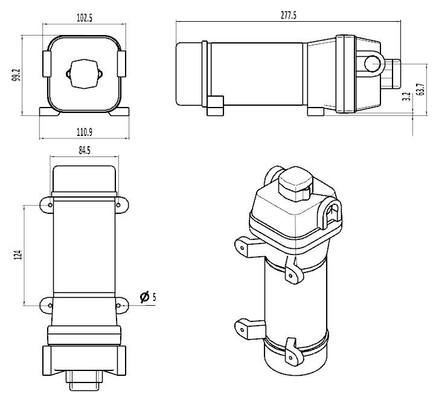

DIMENSIONS



FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI 4

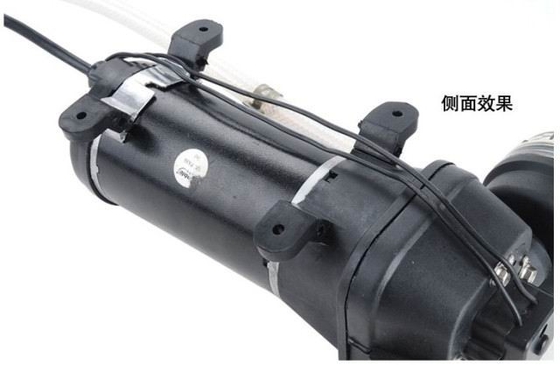

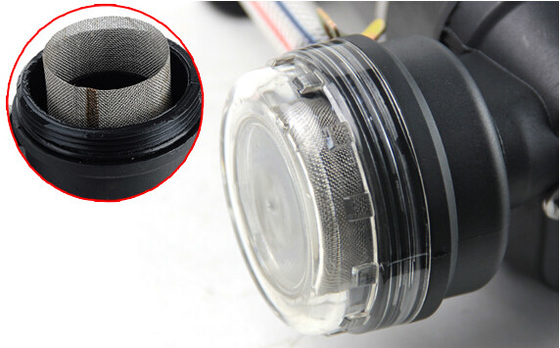

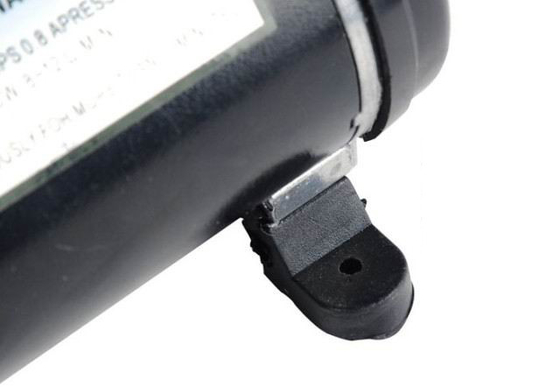

INSTALLATION



 FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI 5

FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI 6

FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI 7



EXPLODED VIEW



FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI 8

FLOWMASTER SDP-40M/S 115V 110V 220V 230V AC Electric High Flow Diaphragm Pump 17LPM 40PSI 9

KEY   DESCRIPTION
1   Motor Assembly
2
  Piston Set Screw
3   Cam/Bearing Set Screw
4   Cam/Bearing Set
5   Piston, Outer
6   Bearing Cover
7   Diaphragm
8   Piston, Inner
9   Check Valve Base & Check Valve
10   O-ring Seal
11   Ferrules
12   Hosing Fitting
13   Upper Housing Assy
14   Ferrules
15   Pump Screw



CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
