Product Details:
Payment & Shipping Terms:
|
| Theory: | Vacuum Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Usage: | Water | Power: | Electric |
| Standard Or Nonstandard: | Nonstandard | Fuel: | DC Power |
| Pressure: | High Pressure | Application: | Washing, Spraying, Misting |
Other names:Yacht pumps, micro DC diaphragm pumps, mini pumps, DC pumps, automatic pump, micro pump, high pressure pump
Designed for a wide range of applications:
1. High torque, high-performance.
2. High pressure, low current.
3. Long life, not leaking diarrhea.
4. Low noise, pumping water and corrosion resistant.
5. Run dry without damage.
6. The motor assembly overheating protection and overpressure protection.
1. Voltage: DC12V/24V, AC110~120V/220~240V.
2. Maximum flow rate 6.0 l / min, flow can be adjusted depending on demand from 1.0 - 6.0 liters / per minute.
3. Maximum pressure 126PSI (11bar), pressure 10PSI (0.6bar) - 160PSI(11bar) to adjust depending on the demand.

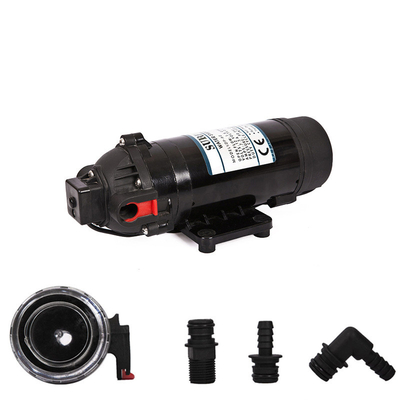

4. Tower connector-10mm connector, 3/8 "screw thread connector or 3/8" pipe joints and other joints.
5. Selectable pressure protection: pressure switch controlling power on/off and reflux switch protection; selectable power control without the pressure security devices. Work: intermittent (continuous work in different work pressure for different operating time).
Features & BenefitsPositive displacement pump
Typical ApplicationsAgricultural Spraying |
PUMPType |
MOTORDuty Cycle Voltage
DC 12V / DC 24V AC 110V / 220V |
| Model | Volts |
Open Flow gpm (lpm) |
Pressure on / off |
Amps MAX | Strainer Included |
BYPASS | Packing Size (mm) |
N.W / G.W (kg) |
| SDP - 160A | 12 VDC | 1.59 (6.0) | 160 psi (11 bar) | 10.5 | No | YES | 335×130×110 | 1.90 / 2.20 |
| SDP - 160B | 24 VDC | 1.59 (6.0) | 160 psi (11 bar) | 5.5 | No | YES | 335×130×110 | 1.90 / 2.20 |
| SDP - 160M | 110 VAC | 1.85 (7.0) | 160 psi (11 bar) | 1.7 | YES | YES | 335×130×110 | 2.40 / 2.70 |
| SDP - 160S | 220 VAC | 1.85 (7.0) | 160 psi (11 bar) | 0.7 | YES | YES | 335×130×110 | 2.60 / 2.90 |
|
Model |
Dimensions |
In/Outlet | Hosing Connectors |
|
SDP-160A |
227*98*101 |
5/8" Snap-fit quick attach roudport |

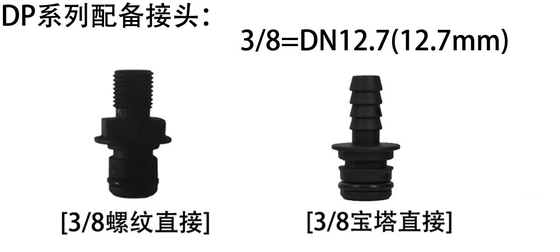

3/8" (DN12.7mm) Pipe Thread; 3/8" (DN12.7mm) OD Barb |
|
SDP-160B |
227*98*101 |
5/8" Snap-fit quick attach round port |
3/8" (DN12.7mm) Pipe Thread; 3/8" (DN12.7mm) OD Barb |
| SDP-160M | 251*98*104 | 5/8" Snap-fit quick attach round port |
3/8" (DN12.7mm) Pipe Thread; 3/8" (DN12.7mm) OD Barb |
| SDP-160S | 251*98*104 |
5/8" Snap-fit quick attach round port |
3/8" (DN12.7mm) Pipe Thread; 3/8" (DN12.7mm) OD Barb |
Rubber feet:
Ferrous base, rubber support
| KEY | DESCRIPTION | MATERIALS |
| 1 | Pressure switch | |
| 2 | Switch seal | |
| 3 | Screws | |
| 4 | Pump head | |
| 5 | Diaphragm | Santoprene |
| 6 | Outlet check Valve | EPDM |
| 7 | Middle body | |
| 8 | Check valve kit | |
| 9 | Sway piston | |
| 10 | Inlet check valve | EPDM |
| 11 | Bearing kit | |
| 12 | Rubber support | |
| 13 | Motor | |
| 14 | Iron ferrous base |
| Chemical Resistance labels | Max Temperature Resistance Code |
|
A —— Excellent B —— Good C —— Ordinary × —— Unacceptable － —— Unusable |
1 —— 20℃(68F) 2 —— 40℃(104F) 3 —— 60℃(140F) 4 —— 80℃(176F) 5 —— 100℃(212F) 6 —— 120℃(248F) |
| CHEMICAL | MATERIAL | |||||||
| PP | PTFE | FKM | NBR | EPDM | 95 Ceramic | |||
| Sulfuric Acid | 0-10% | A4 | A6 | A6 | B2 | A4 | A5 | |
| 10-75% | A3 | A6 | A4 | X | A3 | A5 | ||
| 75-100% | B2 | A4 | A4 | － | B2 | A5 | ||
| Nitric Acid | 10% | A3 | A5 | A5 | X | A2 | A5 | |
| 30% | A2 | A6 | A6 | X | A2 | A5 | ||
| 50% | B2 | A3 | A1 | X | X | A5 | ||
| Hydrochloric Acid | 0-25% | A4 | A6 | A3 | B1 | C3 | A5 | |
| 25-40% | A4 | A6 | A2 | X | C2 | A5 | ||
| Hydrofluoric Acid | 10% | B2 | A6 | A3 | X | A3 | － | |
| 30% | C2 | A6 | A4 | － | B3 | － | ||
| 60% | X | A6 | A4 | － | C2 | － | ||
| Acetic Acid | 20% | A2 | A6 | B1 | B2 | A2 | A5 | |
| 80% | B1 | A6 | X | － | － | A5 | ||
| Sodium Hydroxide | 20% | A3 | A6 | B1 | B2 | A3 | － | |
| 50% | A3 | A6 | X | B1 | A4 | － | ||
| Bromine Water | C1 | A3 | A2 | － | X | A1 | ||
| Ethyl Alcohol | A2 | A3 | A3 | X | B3 | A3 | ||
| Acetone | A2 | A6 | X | － | B2 | A3 | ||
| Freon 12 | X | A6 | A1 | X | B1 | A4 | ||
| Aluminum Chloride | A4 | A6 | A5 | B4 | A4 | A4 | ||
| Ammonia Liquid | A1 | A6 | C1 | B4 | B3 | A3 | ||
| Aqua Regia | C2 | A5 | B2 | － | C2 | A4 | ||
| Formaldehyde | A4 | A6 | A4 | X | A4 | A4 | ||
| Gasoline | X | A6 | B3 | B3 | X | A4 | ||
| Kerosene | A1 | A6 | A1 | B1 | X | A4 | ||
| Methyl Alcohol | A3 | A6 | B2 | B4 | A3 | A5 | ||
| Toluene | C1 | A4 | B1 | － | X | A5 | ||
| Trichloroethylene | C1 | A6 | A1 | － | X | A4 | ||
| Xylene | X | A6 | B1 | － | X | A5 | ||
| Nitric Acid Anhydrous | C1 | A3 | A1 | － | X | A5 | ||
| Oleum | X | A6 | A4 | － | X | A5 | ||
| Potassium Hydroxide | A4 | A6 | B1 | C2 | A5 | － | ||
Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
