AIRJET Electromagnetic Pump KDP57B-220A air pump quiet working AC 220V

Name: AIRJET Electromagnetic Pump KDP57B-220A air pump quiet working AC 220V
Brand: AIRJET
SKU: KDP57B-220A
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (150 reviews)

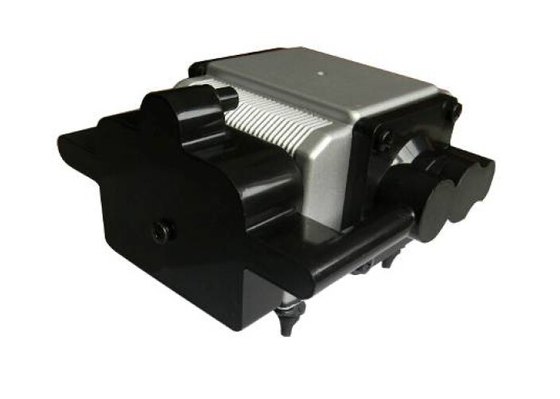

Large Image : AIRJET Electromagnetic Pump KDP57B-220A air pump quiet working AC 220V

Product Details:

Place of Origin:	China
Brand Name:	AIRJET
Certification:	CE, RoHS
Model Number:	KDP57B-220A

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	303025 cm/carton; 15kg
Delivery Time:	10-15days
Payment Terms:	T/T, Western Union, Paypal, Alipay
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Theory:	Vacuum Pump	Structure:	Diaphragm Pump
Usage:	Air Pump	Power:	Electric
Standard Or Nonstandard:	Nonstandard	Fuel:	Electric Power, Solar, Battery
Pressure:	High Pressure	Application:	Vacuum Packaging, Medical, Gas Sampling

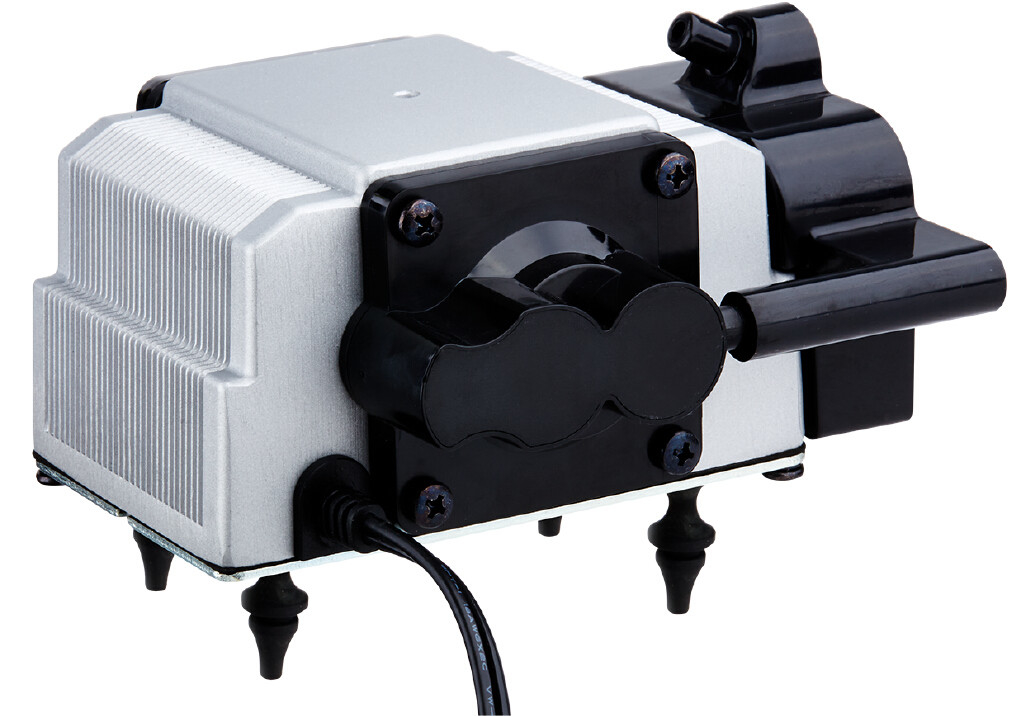

AIRJET Electromagnetic Pump KDP57B-220A air pump quiet working AC 220V

AIRJET Electromagnetic Pump KDP57B-220A air pump quiet working AC 220V 0

Specifications

1. Rated Voltage	AC 21V	AC220V	AC220V	AC120V
2. Rated Current	Max. 1.7mA(50Hz AC21V), Max. 1.7mA, (60Hz AC21V)	Max. 170mA(50Hz) Max. 180mA(60Hz)	Max. 300mA(50Hz) Max. 300mA(60Hz)	Max. 430mA(50Hz) Max. 460mA(60Hz)
3. Resistance	3.8Ω±10%(25°C)	435Ω±10%(25°C)	245Ω±10%(25°C)	77±10%(25°C)
4. Power Consumption	Max. 20 W(50Hz) Max. 15W(60Hz)	Max. 21W(50Hz) Max. 19W(60Hz)	REF 26W(50Hz) REF 20W(60Hz)	REF 25W(50Hz) REF 21W(60Hz)
5. Air Flow Without Load	20L/min(50Hz) 18L/min(60Hz)	23L/min(50Hz) 18L/min (60Hz)	26L/min(50Hz) 20L/min(60Hz)	24L/min(50Hz) 22L/min(60Hz)
6. Max. Pressure	30Kpa±16% (50Hz), 189~261mmHg ; 36Kpa±16% (60Hz), 226~313mmHg	25Kpa(50Hz),187mmHg 31Kpa(60Hz),233mmHg	35±15%Kpa (50Hz), 224~302mmHz; 41±15%Kpa (50Hz), 264~356mmHz	36±15%Kpa (50Hz), 230~310mmHg 40±15%Kpa (60Hz), 255~345mmHg
7. Noise Level	<55dB(50Hz,50cm away)	<55dB(50Hz,50cm away)	<55dB(50Hz,50cm away)	<55dB(50Hz,50cm away)
8. Apply For	Air	Air	Air	Air
9.Insulation Level	E	E	E	E
