Product Details:
Payment & Shipping Terms:
|
Theory: | Vacuum Pump | Structure: | Diaphragm Pump |
---|---|---|---|
Usage: | Water | Power: | Electric |
Standard Or Nonstandard: | Nonstandard | Fuel: | Electric Power, Solar, Battery |
Pressure: | Low Pressure | Application: | AIR |

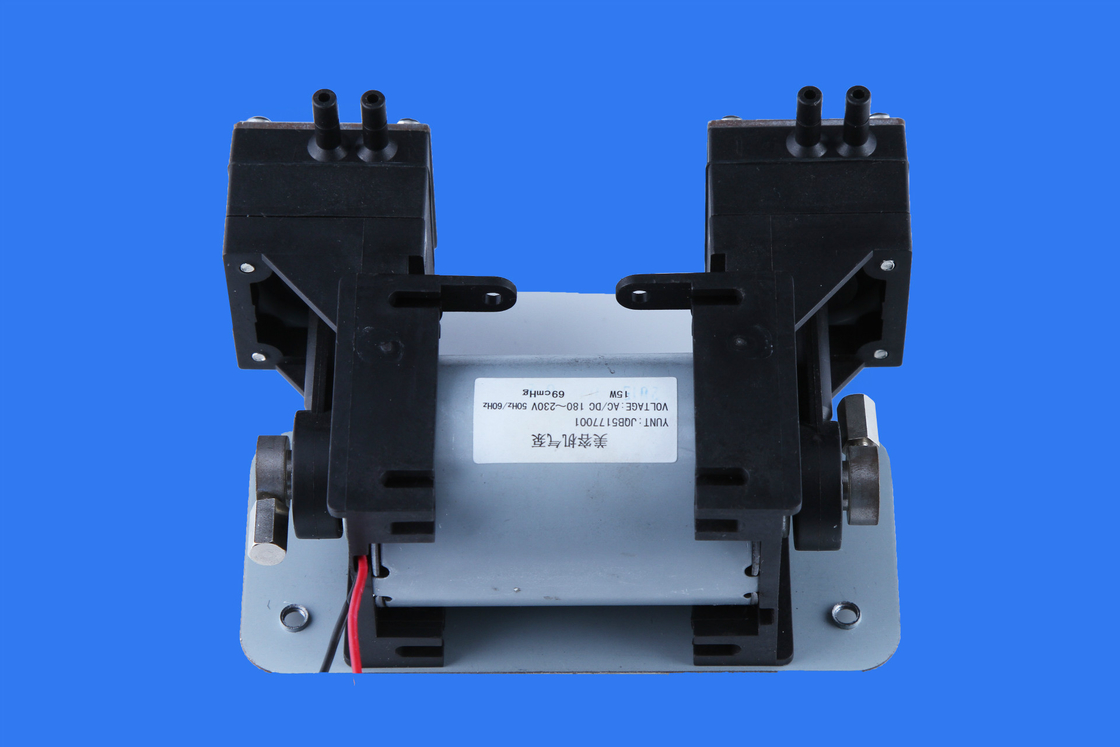

Model No: 5177003
Specification
1. Rated voltage: AC 220V
2. Power Frequency: 50/60Hz
3. No-load current: ≤150mA
4. No-load power: ≤15W
5. No-load flow: ≥5L/min
6. Max pressure: ≥100Kpa
7. Max negative pressure: ≤-70Kpa
8. Load noise: >65dB (1M away, inflating 500cc container)
9. Pressure resistance standard: AC1800V/1sec at 5mA.
10. The power line appears externally: 270±10mm.
