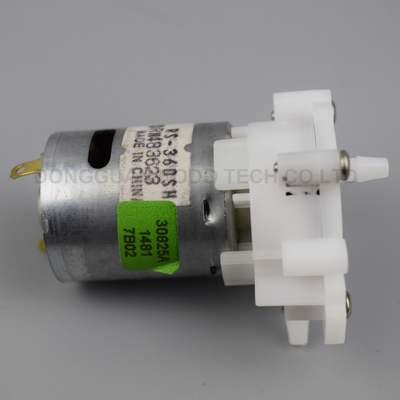

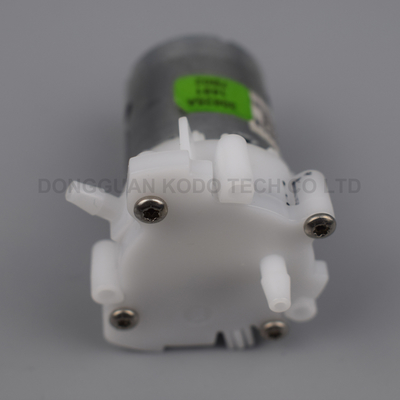

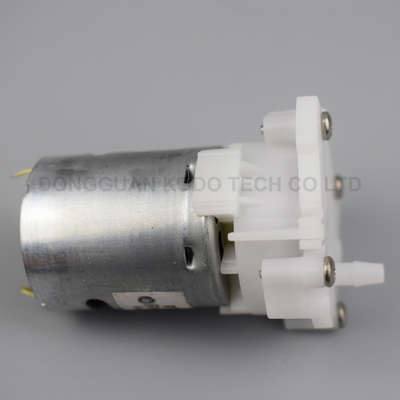

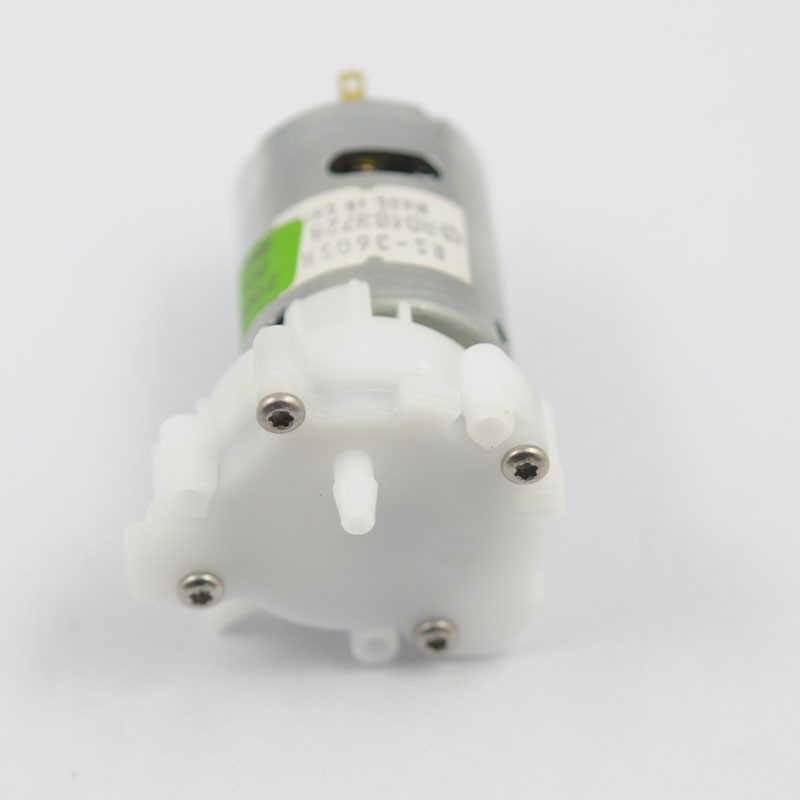

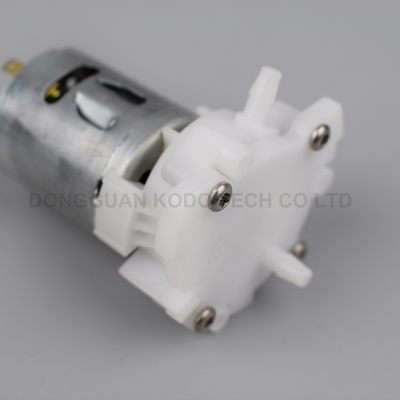

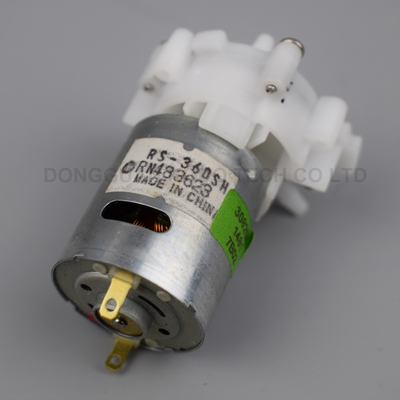

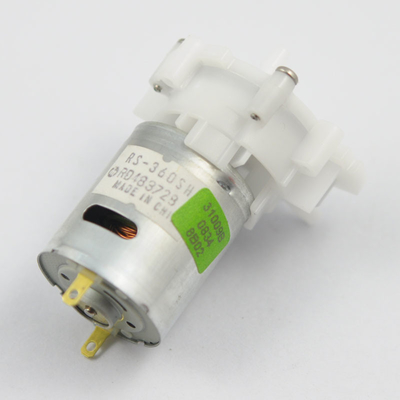

FLOWDRIFT DC Electric Mini Gear Pump KGP-360

FLOWDRIFT DC Electric Mini Gear Pump KGP-360

FLOWDRIFT DC Electric  Mini Gear Pump KGP-360
FLOWDRIFT DC Electric  Mini Gear Pump KGP-360 FLOWDRIFT DC Electric  Mini Gear Pump KGP-360 FLOWDRIFT DC Electric  Mini Gear Pump KGP-360 FLOWDRIFT DC Electric  Mini Gear Pump KGP-360 FLOWDRIFT DC Electric  Mini Gear Pump KGP-360 FLOWDRIFT DC Electric  Mini Gear Pump KGP-360 FLOWDRIFT DC Electric  Mini Gear Pump KGP-360

Large Image :  FLOWDRIFT DC Electric Mini Gear Pump KGP-360

Product Details:
Place of Origin: China
Brand Name: FLOWDRIFT
Certification: CE;RoHS
Model Number: KGP-360
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: 30*30*25 cm; 15kg
Delivery Time: 3-15days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 5000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Gear Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: Electric Power, Solar, Battery
Pressure: Low Pressure Application: Water, Oils, Solvent



FLOWDRIFTTM DC 3-12V Electric Mini Gear Pump KGP-360 500mL/Min



FLOWDRIFT DC Electric  Mini Gear Pump KGP-360 0



TECHNICAL DATA


Voltage:3-12VDC
Max.fluid Temperature:0~45℃
Duty Cycle:Intermittent
Size:45X35X27mm
Port Length:¢7mm
Port type:4mm OD barb
Working life:continues working above 400hrs
Applicable Liquid:water, fuel oil or solution
Between PH 5~8
Flow: 500mLPM by water


APPLICATIONS



Water purifier,
portable air-conditioner,Food
equipment,closestool and
centered air-conditioner.




CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
