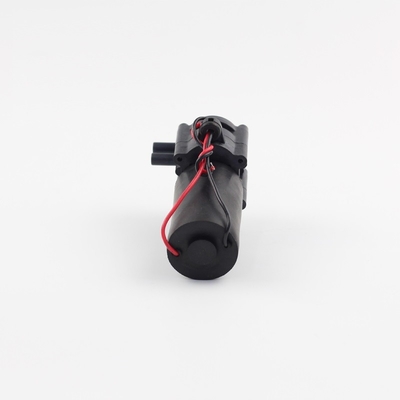

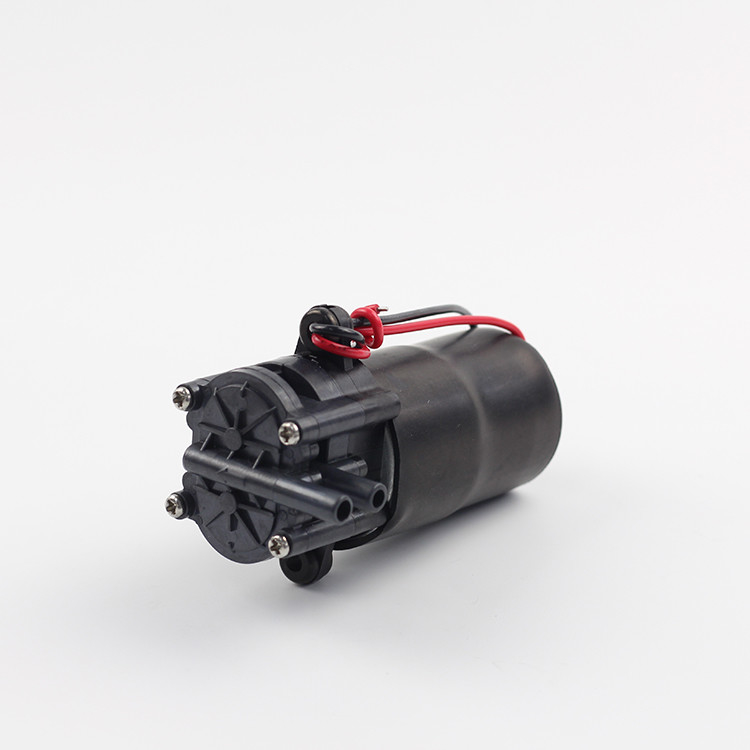

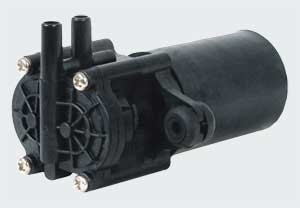

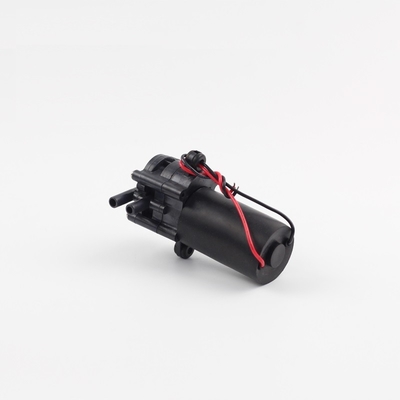

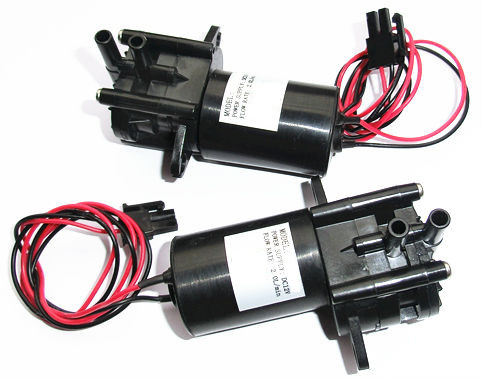

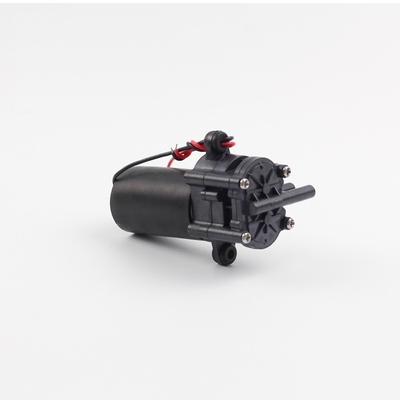

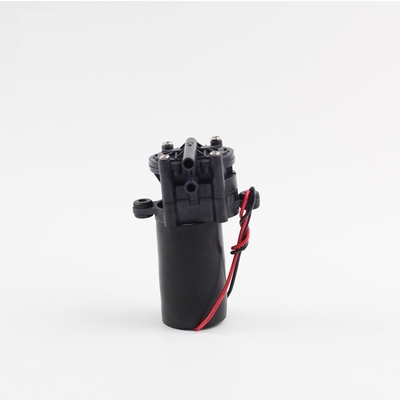

FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series

FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series

FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series
FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series

Large Image :  FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series

Product Details:
Place of Origin: China
Brand Name: FLOWDRIFT
Certification: CE;RoHS
Model Number: KGP-002 series
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: 30*30*25 cm; 15kg
Delivery Time: 3-15days
Payment Terms: 100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability: 5000pcs/month
Detailed Product Description
Theory: Vacuum Pump Structure: Gear Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Fuel: Electric Power, Solar, Battery
Pressure: Low Pressure Application: Hot Water, Fuel Oils, Solvent



FLOWDRIFTTM DC 12/24V Electric Mini Gear Pump KGP-002 FLow 1.0-2.5LPM Quiet Working Food Grade for Hot Water 0-100℃



FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series 0

KGP-002 Series Plastic gear pump using the deceleration torque-structure, PPS manufactured housing and gears with brush motor driver to do with the characteristics of small size suitable for intermittent high pressure transmission medium occasions widely used in small appliances: such as coffee machines, sanitary ware, ice-making machines, drinking fountains and the like



■ Overview
Feature
1.small size, high pressure
2. Excellent self-priming,
3.Smooth, Pulseless Delivery
4.Easy to ServiceChemical resistance
5.DC Motor drive.

Application:
spray,
sanitary ware,
ice-making machines
Coffee making machines
drinking fountains
Wine dispensers
Beverage dispensing




Specifications
1 Motor Type Brush DC motor
2 Max flow 3L/min
3 Max pressure 3Bar
4 Rated Voltage 12V / 24V
5 Suction Height 0.5M, 0.6M
6 Fluid Temperature: -10 ℃ ≤ T ≤ 100 ℃ (except for the freezing)
7 Pump Theory Gear pump
8 Use Place Indoor
9 Media: A variety of liquid and oil
10 Ideal Life Time KGP-002 400hour , KGP-004 800hour
11 Working Way Interrupt
12 Inlet OD 6.0mm/ID 4.0mm
13 Outlet OD 6.0mm/ID 4.0mm
14 Weight PG2 135g , PG4 250g
15 Functions Can dry-running 3 minutes, Self-priming



Technical parameters

Model Maximum pressure flow Power Rev.
KGP-002-PG2/DC12A 1.5bar 1.5L / min 20W 8000rpm
KGP-002-PG2/DC24A 1.5bar 1.5L / min 20W 8000rpm
KGP-002-PG2/DC12B 2.5bar 2.5L / min 40W 12000rpm
KGP-002-PG2/DC24B 2.5bar 2.5L / min 40W 12000rpm
KGP-002-PG4/DC12A 1.5bar 1.5L / min 20W 5000rpm
KGP-002-PG4/DC24A 1.5bar 1.5L / min 20W 5000rpm
KGP-002-PG4/DC12B 2.5bar 2.5L / min 40W 8000rpm
KGP-002-PG4/DC24B 2.5bar 2.5L / min 40W 8000rpm



Note: 1, ambient temperature: 0 ~ 50 ℃; Humidity: ≤75%.

2, fluid viscosity: 0 ~ 1500CPS; Fluid temperature: -10 ℃ ≤T≤100 ℃ (except freezing).

3, work: Intermittent working system recommends a single working hours do not exceed 10 minutes.

4, using the medium: pure water or an aqueous solution free of impurities, oils.

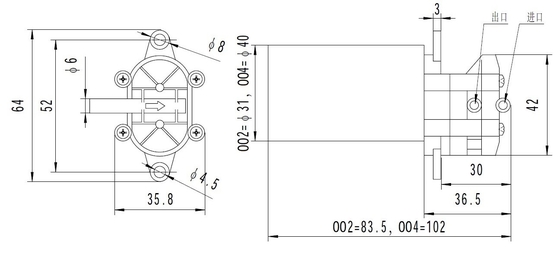

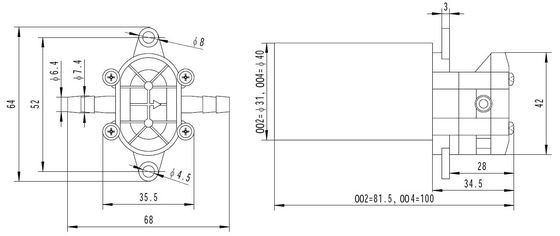

FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series 1FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series 2



CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
