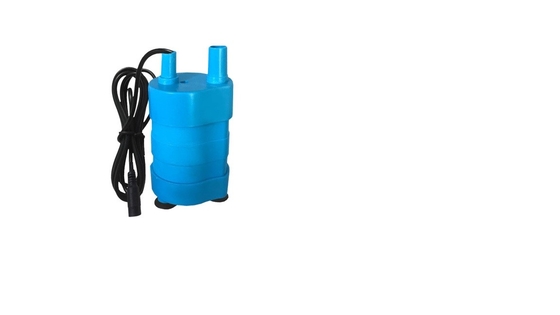

AQUAWING DC submersible pump 12V mini water pump RV toilet flushing pump JT-560

AQUAWING DC submersible pump 12V mini water pump RV toilet flushing pump JT-560
AQUAWING DC submersible pump 12V mini water pump RV toilet flushing pump JT-560

Large Image :  AQUAWING DC submersible pump 12V mini water pump RV toilet flushing pump JT-560

Product Details:
Place of Origin: Guangdong, China
Brand Name: AQUAWING
Certification: CE, RoHS, ISO 9001: 2008
Model Number: JT-560
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: 355*130*110mm
Delivery Time: samples 3-8 days, Big order 15-20days
Payment Terms: T/T (bank wire transfer), Western Union, Paypal, Alipay, Payoneer
Supply Ability: 5000pcs/month
Detailed Product Description
Theory: Centrifugal Pump Structure: Single-stage Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Nonstandard Pressure: Low Pressure
Application: Submersible Fuel: Solar
N. Weight: 185g



AQUAWING DC submersible pump 12V



AQUAWING DC submersible pump 12V mini water pump RV toilet flushing pump JT-560 0







FEATURES



  • Pump motor DC brushless motor no spark of work.
  • Can connect the car power, 12V battery can work, mobile convenience.
  • Pump motor shaft with high degree of wear-resistant ceramic shaft continuous service life of about 2000 hours.
  • CE, RoHS Certified.



SPECIFICATIONS



Model:  JT-560-12/JT-560-24

Materials

Housing: ABS

Seal: Silicone

Impeller: Nylon PA66

Cable: PVC

Motor: Brush/Brushless

Magnet: Ferrites

Enameled wire: Copper 2UEW 130℃

Liquids: water, underground water, seawater, acohol, diesel. etc

Storage Temperature: -40~+60 Celsius degree

Liquid Temperature: -40~+60 Celsius degree

Ambient Humidity: 45%~90%

Voltage range: DC 6~12V/1.9A/23W /DC 18-26V/28W

Flow: 600/1000LPH (16.5LPM)

Max Head: 500cm

Noise: less than 35 dB (distance 20CM) in the water

Water Proof: IPX 68



HEAD-FLOW CURVE



AQUAWING DC submersible pump 12V mini water pump RV toilet flushing pump JT-560 1





AQUAWING DC submersible pump 12V mini water pump RV toilet flushing pump JT-560 2





CHEMICAL RESISTANCE



Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

- —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3
30% C2 A6 A4 B3
60% X A6 A4 C2
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3
50% A3 A6 X B1 A4
Bromine Water C1 A3 A2 X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Acetone A2 A6 X B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 X A5
Trichloroethylene C1 A6 A1 X A4
Xylene X A6 B1 X A5
Nitric Acid Anhydrous C1 A3 A1 X A5
Oleum X A6 A4 X A5
Potassium Hydroxide A4 A6 B1 C2 A5



USAGE SCOPE



Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
