Product Details:
Payment & Shipping Terms:
|
| Theory: | Vacuum Pump | Structure: | Gear Pump |
|---|---|---|---|
| Usage: | Water | Power: | Electric |
| Standard Or Nonstandard: | Nonstandard | Fuel: | Electric Power, Solar, Battery |
| Pressure: | High Pressure | Application: | Hot Water, Fuel Oils, Solvent |

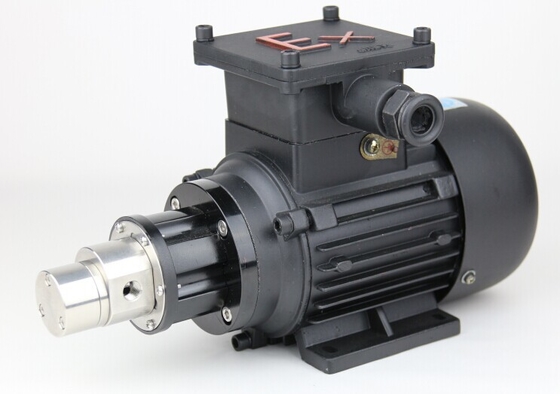

KGP-06F / AC380(220) Magnetic drive gear pumps, the use of AC asynchronous Explosion-Proof Motor-driven, outer shaft and rare earth permanent magnet Motor connection drive gear pump. The advantage is Rev. constant torque, long-term stability. explosion-proof inverter configuration enables the pump flow regulation is widely used to measure chemical, oil, fuel and other flammable liquids transportation. MG200 full range of gear pump head can use AC asynchronous explosion-Proof Motor
KGP-06F / AC380(220) magnetic drive gear pump, magnetically coupled transmission without leakage, 316 stainless steel material precision machined housing, PEEK machined gear, static sealing made of PTFE material. The pump can be used in a -0.1Map-2Map closed system. The rated output pressure is 5bar, the maximum output pressure is 15bar, and the output flow rate is 50-3000ml/min. Widely used in hemodialysis machines, inkjet printers, inkjet printers, pharmaceutical, chemical, water treatment, printing, cleaning, packaging, filling machines, food processing and other fields of liquid metering and transportation. It is especially suitable for construction machinery, vehicle equipment, and automobile exhaust gas treatment.
Model specification
| Model | KGP | - | 06 | F | N | / | AC220 | FB | - | 2 | / | 90 |
| Position | KGP-06I full range of gear pump head can be | 1 | 2 | 3 | 4 | |||||||
| 1 | Motor voltage | AC220 = AC 220V three-phase AC380 = AC 380V | ||||||||||
| 2 | Motor Types | FB = Explosion-Proof Motor | ||||||||||
| 3 | Motor Rev. | 4 = 2 = 2 pole 4 pole | ||||||||||
| 4 | Motor Power | 90 = 90W | ||||||||||
Features
1. Motor Power: 90W.
2. Motor Voltage: AC220V or AC380V..
3. Speed mode: with explosion-proof inverter.
4. Altitude: ≤ 2500 meters
5. Ambient humidity: ≤ 75%
6. Fluid viscosity: 0 ~ 3000CPS
7. Ambient temperature: -30 ~ 50 ° C
8. Fluid temperature: -10 °C ≤ T ≤ 100 ° C (except for freezing)
9. Working style: continuous working system
10. Use medium: acid, alkali, salt, organic solvent, oil at room temperature.
11. Explosion-proof mark: ExdⅡBT4; Insulation class: E.
Suitable areas
• Automotive • Food processing equipment • Medical equipment • Water Cycle
• Packaging Machinery • Vending machines • inkjet printer, inkjet printers • detection equipment
Technical parameters
| Model | preset pressure | flow | Power | System pressure | Rev. | Medium viscosity |
| KGP-06I04/AC380(220) | 5bar | 50 ~ 800 ml/min | 90W | -0.8 ~ 20bar | 200-4000rpm | 0.2 ~ 3000cps |
| KGP-06I09/AC380(220) | 100 ~ 1800 ml/min | |||||
| KGP-06I13/AC380(220) | 300 ~ 2400 ml/min |
Outline dimension chart:
Exploded View
Flow graph:
All of the above parameters are tested by water as medium.
| Chemical Resistance Code | Max Temperature Resistance Code |
|
A —— Excellent B —— Good C —— Ordinary × —— Unacceptable － —— Unusable |
1 —— 20℃(68F) 2 —— 40℃(104F) 3 —— 60℃(140F) 4 —— 80℃(176F) 5 —— 100℃(212F) 6 —— 120℃(248F) |
| CHEMICAL | MATERIAL | |||||||
| PP | PTFE | FKM | NBR | EPDM | 95 Ceramic | |||
| Sulfuric Acid | 0-10% | A4 | A6 | A6 | B2 | A4 | A5 | |
| 10-75% | A3 | A6 | A4 | X | A3 | A5 | ||
| 75-100% | B2 | A4 | A4 | － | B2 | A5 | ||
| Nitric Acid | 10% | A3 | A5 | A5 | X | A2 | A5 | |
| 30% | A2 | A6 | A6 | X | A2 | A5 | ||
| 50% | B2 | A3 | A1 | X | X | A5 | ||
| Hydrochloric Acid | 0-25% | A4 | A6 | A3 | B1 | C3 | A5 | |
| 25-40% | A4 | A6 | A2 | X | C2 | A5 | ||
| Hydrofluoric Acid | 10% | B2 | A6 | A3 | X | A3 | － | |
| 30% | C2 | A6 | A4 | － | B3 | － | ||
| 60% | X | A6 | A4 | － | C2 | － | ||
| Acetic Acid | 20% | A2 | A6 | B1 | B2 | A2 | A5 | |
| 80% | B1 | A6 | X | － | － | A5 | ||
| Sodium Hydroxide | 20% | A3 | A6 | B1 | B2 | A3 | － | |
| 50% | A3 | A6 | X | B1 | A4 | － | ||
| Bromine Water | C1 | A3 | A2 | － | X | A1 | ||
| Ethyl Alcohol | A2 | A3 | A3 | X | B3 | A3 | ||
| Acetone | A2 | A6 | X | － | B2 | A3 | ||
| Freon 12 | X | A6 | A1 | X | B1 | A4 | ||
| Aluminum Chloride | A4 | A6 | A5 | B4 | A4 | A4 | ||
| Ammonia Liquid | A1 | A6 | C1 | B4 | B3 | A3 | ||
| Aqua Regia | C2 | A5 | B2 | － | C2 | A4 | ||
| Formaldehyde | A4 | A6 | A4 | X | A4 | A4 | ||
| Gasoline | X | A6 | B3 | B3 | X | A4 | ||
| Kerosene | A1 | A6 | A1 | B1 | X | A4 | ||
| Methyl Alcohol | A3 | A6 | B2 | B4 | A3 | A5 | ||
| Toluene | C1 | A4 | B1 | － | X | A5 | ||
| Trichloroethylene | C1 | A6 | A1 | － | X | A4 | ||
| Xylene | X | A6 | B1 | － | X | A5 | ||
| Nitric Acid Anhydrous | C1 | A3 | A1 | － | X | A5 | ||
| Oleum | X | A6 | A4 | － | X | A5 | ||
| Potassium Hydroxide | A4 | A6 | B1 | C2 | A5 | － | ||
Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
