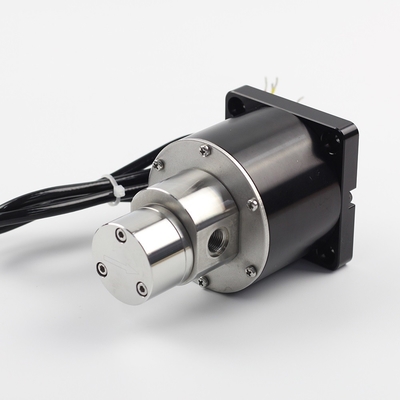

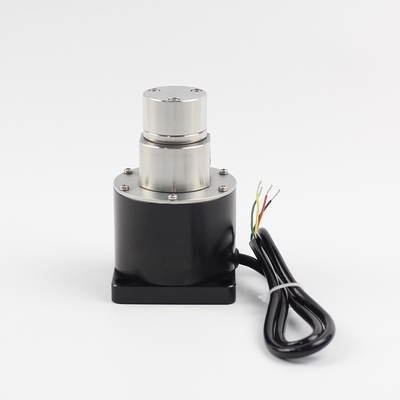

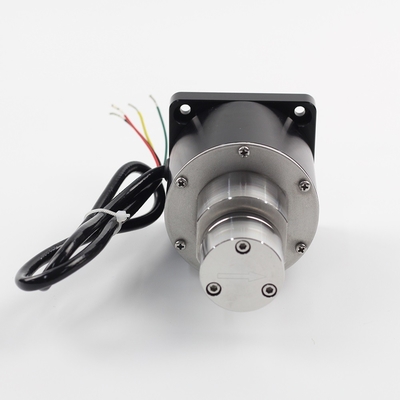

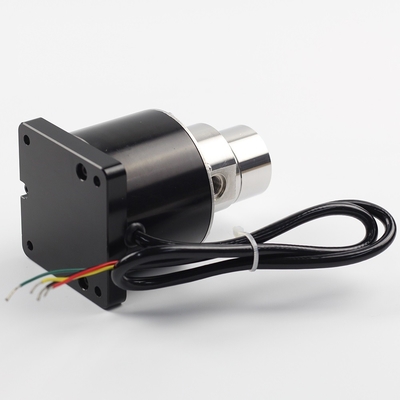

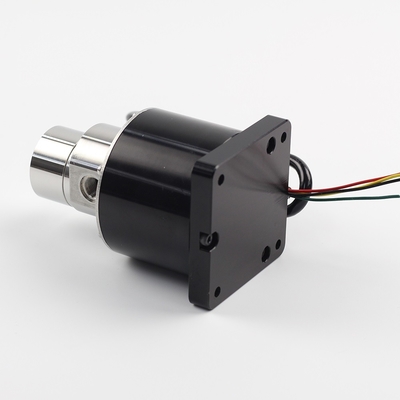

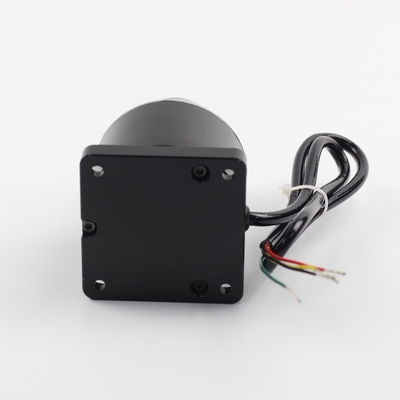

FLOWDRIFT^TM DC 24V Electric Brushless Motor Magnetic Drive High Pressure 25Bar Max Stainless Steel Gear Pump KGP-06E Series Quiet Working Food Grade for Hot Water 0-100℃ High Viscosity 1500CPS Allowed

KGP-06E Magnetic drive gear pumps, the use of DC Brushless Motor powered, rare earth permanent magnet Motor shaft and the outer magnetic ring connection, the drive gear pump. Configuration of Brushless Motor drive independently realize Motor function control. It features Rev. adjustable, with speed and reverse rotation, low noise, and small size, coupled with the host computer can realize intelligent control, and long-term stability, especially for frequent starts and stops of the workplace, such as: liquid packaging machine KGP-06E full range of gears. pump head can use an external drive type Brushless Motor.

KGP-06E magnetic drive gear pump, magnetically coupled transmission without leakage, 316 stainless steel material precision machined housing, PEEK machined gear, static sealing made of PTFE material. The pump can be used in a -0.1Map-2Map closed system. The rated output pressure is 3bar, the maximum output pressure is 10bar, and the output flow rate is 50-3000ml/min. Widely used in hemodialysis machines, inkjet printers, inkjet printers, pharmaceutical, chemical, water treatment, printing, cleaning, packaging, filling machines, food processing and other fields of liquid metering and transportation. It is especially suitable for construction machinery, vehicle equipment, and automobile exhaust gas treatment.

KGP-06E magnetic drive gear pump uses the electromagnetic rotating magnetic field on the DC motor stator to directly drive the inner rotor of the magnetic gear pump, thereby driving the gear pump to work. Its compact structure reduces some moving parts, so it has the characteristics of small size, small vibration, light weight, and fully enclosed. It is widely used in inkjet printers or occasions where the space inside the machine is relatively narrow. Suitable for liquid medium with liquid viscosity in the range of 0.2～1500cps. All KGP-06E gear pumps can be equipped with this compact brushless motor.

Model specification

Features

1. Motor Power: 40W

2. Speed ​​Control: Built-in drive voltage 0 ~ DC5V governor.

3. 0 ~ 5V pulse signal output for speed or constant speed control.

4. Altitude: ≤ 2500 meters

5. Ambient humidity: ≤ 75%

6. Fluid viscosity: 0 ~ 3000CPS

7. Ambient temperature: -30 ~ 50 ° C

8. Fluid temperature: -10 °C ≤ T ≤ 100 ° C (except for freezing)

9. Working style: continuous working system

10. Use medium: acid, alkali, salt, organic solvent, oil at room temperature.

Suitable areas

• Automotive • Food processing equipment • Medical equipment • Water Cycle

• Packaging Machinery • Vending machines • inkjet printer, inkjet printers • detection equipment

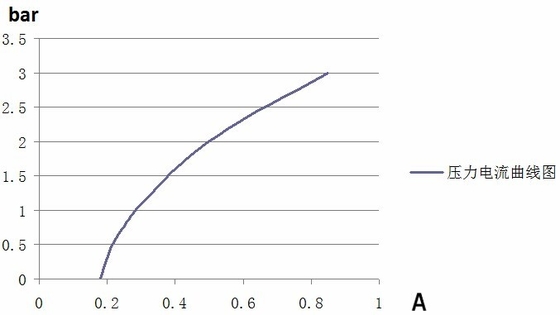

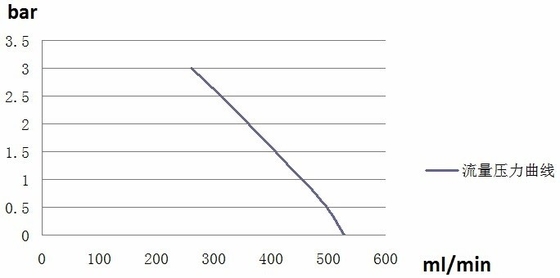

Technical parameters

Outline dimension chart:

Exploded View
