Product Details:
Payment & Shipping Terms:
|
Theory: | Vacuum Pump | Structure: | Gear Pump |
---|---|---|---|
Usage: | Water | Power: | Electric |
Standard Or Nonstandard: | Nonstandard | Fuel: | Electric Power, Solar, Battery |
Pressure: | High Pressure | Application: | Hot Water, Fuel Oils, Solvent |

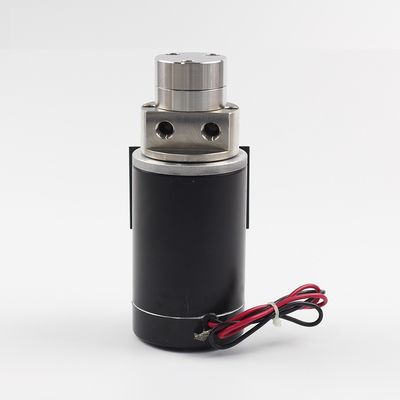

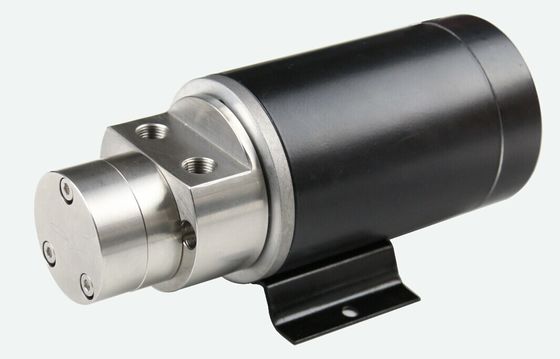

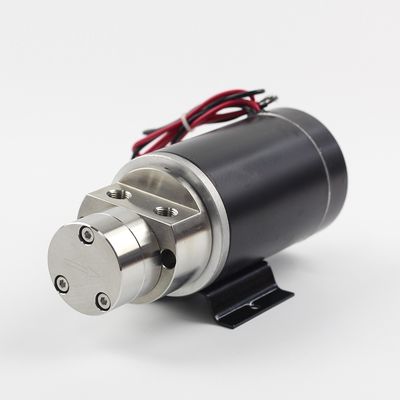

KGP-06M Miniature Gear Pump, using precision machining Stainless steel 316 housing, PEEK made of gears, shaft dynamic seal skeleton fluorine rubber seal selection. Configuration DC 12 or 24Vbrush motor-driven, so Miniature Gear Pump compact unit. The advantage small size, high pressure, flow rate, can be adjusted by changing the Motor voltage Motor Rev., to achieve flow regulation.Widely used in hemodialysis machines, inkjet printers, inkjet printers, pharmaceutical, chemical, water treatment, printing, cleaning, packaging, filling machines, food processing and other fields of liquid metering and transportation. It is especially suitable for construction machinery, vehicle equipment, and automobile exhaust gas treatment.
1 | Pump Type | Magnetic drive gear pumps | ||||||
2 | Pump Series | KGP-06M series | ||||||
3 | Gear height | 6mm; 12mm | ||||||
4 | Shell material | Stainless steel 316 | ||||||
5 | Gear Material | PEEKM plastic or green copper | ||||||
6 | Pressure limiting valve | Built-in pressure limiting valve,or no means no pressure limiting valve | ||||||
7 | In/outlet port | In/outlet on the same side or two sides | ||||||
8 | In/outlet thread | NPT1 / 8 " or G1 / 8" |
1. Altitude: ≤ 2500 meters
2. Ambient humidity: ≤ 85%
3. Fluid viscosity: 0 ~ 3000CPS
4. Ambient temperature: -10 ~ 50 ° C
5. Fluid temperature: -10 °C ≤ T ≤ 100 ° C (except for freezing)
6. Working style: continuous working system
7. Use medium: acid, alkali, salt, organic solvent, oil at room temperature.
• Automotive • Food processing equipment • Medical equipment • Water Cycle
• Packaging Machinery • Vending machines • inkjet printer, inkjet printers • detection equipment
Model | preset pressure | flow | Power | System pressure | Rev. | Medium viscosity |
KGP-06M06/DC24 | 5bar | 1500ml/min | 70W | 0 ~ 5bar | 3000rpm | 0.2 ~ 3000cps |
KGP-06M12/DC24 | 3000ml/min |
All of the above parameters are tested by water as medium.
Chemical Resistance Code | Max Temperature Resistance Code |
A —— Excellent B —— Good C —— Ordinary × —— Unacceptable - —— Unusable |
1 —— 20℃(68F) 2 —— 40℃(104F) 3 —— 60℃(140F) 4 —— 80℃(176F) 5 —— 100℃(212F) 6 —— 120℃(248F) |
CHEMICAL | MATERIAL | |||||||
PP | PTFE | FKM | NBR | EPDM | 95 Ceramic | |||
Sulfuric Acid | 0-10% | A4 | A6 | A6 | B2 | A4 | A5 | |
10-75% | A3 | A6 | A4 | X | A3 | A5 | ||
75-100% | B2 | A4 | A4 | - | B2 | A5 | ||
Nitric Acid | 10% | A3 | A5 | A5 | X | A2 | A5 | |
30% | A2 | A6 | A6 | X | A2 | A5 | ||
50% | B2 | A3 | A1 | X | X | A5 | ||
Hydrochloric Acid | 0-25% | A4 | A6 | A3 | B1 | C3 | A5 | |
25-40% | A4 | A6 | A2 | X | C2 | A5 | ||
Hydrofluoric Acid | 10% | B2 | A6 | A3 | X | A3 | - | |
30% | C2 | A6 | A4 | - | B3 | - | ||
60% | X | A6 | A4 | - | C2 | - | ||
Acetic Acid | 20% | A2 | A6 | B1 | B2 | A2 | A5 | |
80% | B1 | A6 | X | - | - | A5 | ||
Sodium Hydroxide | 20% | A3 | A6 | B1 | B2 | A3 | - | |
50% | A3 | A6 | X | B1 | A4 | - | ||
Bromine Water | C1 | A3 | A2 | - | X | A1 | ||
Ethyl Alcohol | A2 | A3 | A3 | X | B3 | A3 | ||
Acetone | A2 | A6 | X | - | B2 | A3 | ||
Freon 12 | X | A6 | A1 | X | B1 | A4 | ||
Aluminum Chloride | A4 | A6 | A5 | B4 | A4 | A4 | ||
Ammonia Liquid | A1 | A6 | C1 | B4 | B3 | A3 | ||
Aqua Regia | C2 | A5 | B2 | - | C2 | A4 | ||
Formaldehyde | A4 | A6 | A4 | X | A4 | A4 | ||
Gasoline | X | A6 | B3 | B3 | X | A4 | ||
Kerosene | A1 | A6 | A1 | B1 | X | A4 | ||
Methyl Alcohol | A3 | A6 | B2 | B4 | A3 | A5 | ||
Toluene | C1 | A4 | B1 | - | X | A5 | ||
Trichloroethylene | C1 | A6 | A1 | - | X | A4 | ||
Xylene | X | A6 | B1 | - | X | A5 | ||
Nitric Acid Anhydrous | C1 | A3 | A1 | - | X | A5 | ||
Oleum | X | A6 | A4 | - | X | A5 | ||
Potassium Hydroxide | A4 | A6 | B1 | C2 | A5 | - |
Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
