Product Details:
Payment & Shipping Terms:
|
| Theory: | Vacuum Pump | Structure: | Gear Pump |
|---|---|---|---|
| Usage: | Water | Power: | Electric |
| Standard Or Nonstandard: | Nonstandard | Fuel: | Electric Power, Solar, Battery |
| Pressure: | High Pressure | Application: | Hot Water, Fuel Oils, Solvent |

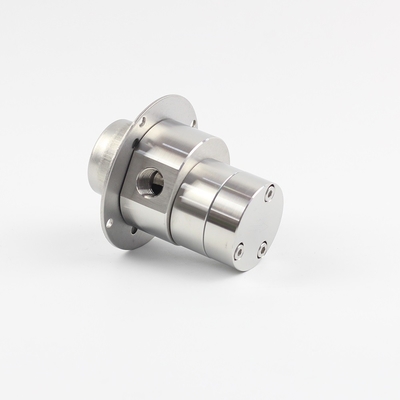

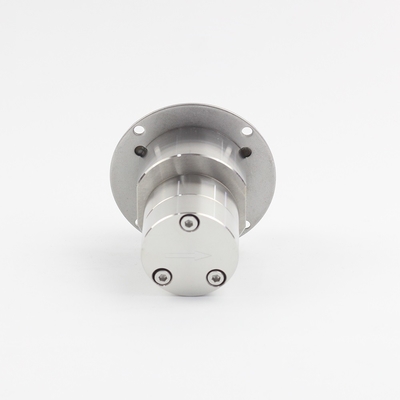

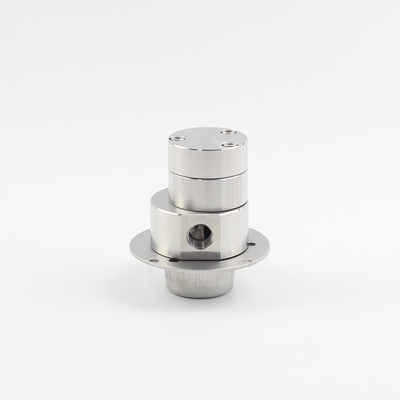

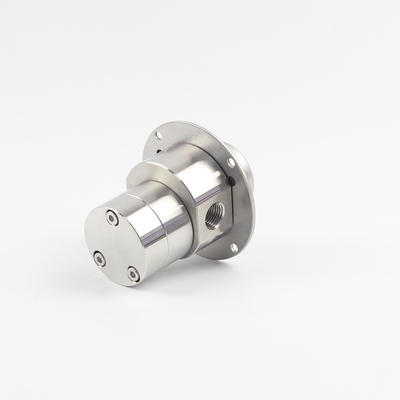

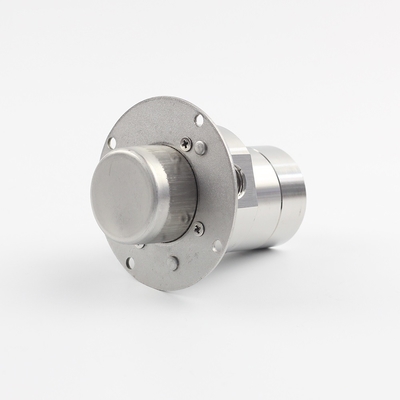

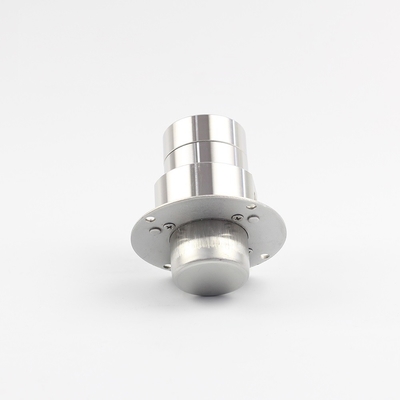

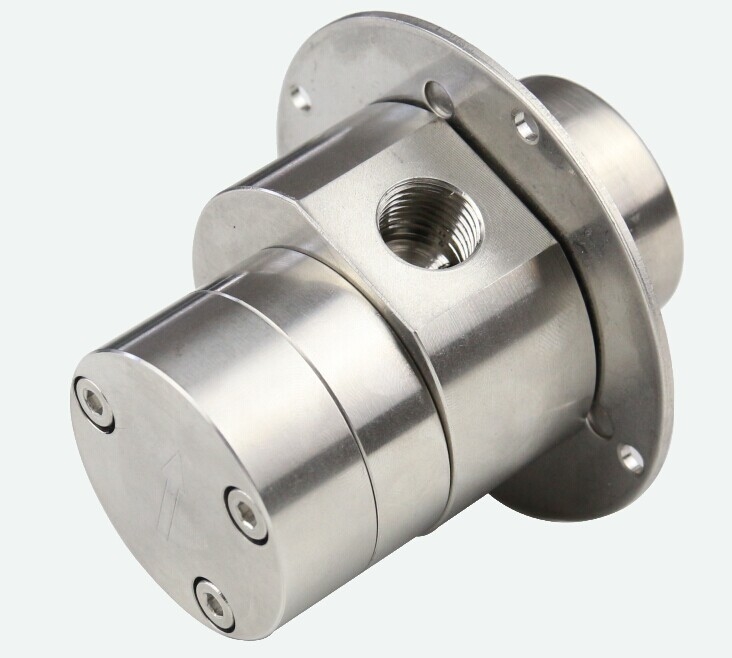

G300 (XK / XB) Magnetic drive gear pump is a new gear pump, XK Series gear made of special engineering, and quality Stainless steel housing composed of a gear pump. XB Series gear made of high-quality copper, Stainless steel shell composition and quality gear pump, the gear pump lubricating fluid in the absence of the case, can work with structural design of magnetic coupling drive to solve the problem of leakage of the gear shaft end. it is known as a gear pump leak mainly used in the field of micro-delivery medical devices, blood dialysis machines, food processing, filling, selling equipment, analytical instruments.
Model specification
| Model | G | 3 | 00 | X | K | S | 1 | A |
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| 1 | Pump Type | G = gear pumps | ||||||
| 2 | Pump Series | 3 = 3 series | ||||||
| 3 | Gear height | 04 = 4mm 09 = 9mm 13 = 13mm | ||||||
| 4 | Shell material | X = Stainless steel 316 | ||||||
| 5 | Gear Material | K = PEEKM plastic B = green copper | ||||||
| 6 | Pressure limiting valve | S represents a gear pump is equipped with built-in pressure limiting valve, no means no pressure limiting valve | ||||||
| 7 | Import and export orientation | 1 shows a pump inlet direction on the same side, without showing the left and right directions in the import and export sides | ||||||
| 8 | Importers thread | A threaded hole for the import and export express NPT1 / 8 ", indicates no import and export threaded hole G1 / 8" | ||||||
Technical parameters
| Model | preset pressure | Flow range | Maximum Power | System pressure | Speed range |
| G312XK | 5bar | 200 ~ 4000ml / min | 200W | -0.8 ~ 20bar | 200 ~ 4000rpm |
| G317XK | 300 ~ 6000ml / min |
Note: 1, the transmission medium temperature: -30 ℃ ~ 100 ℃ (except frozen); Ambient temperature: -30 ~ 50 ℃.
2, the inner rotor gear pump for NdFeB magnets PPS plastic coated, static sealing material is PTFE; rotor cover material Stainless steel 316.
3, the liquid containing the particle diameter of ≤20 microns; PEEK hardness less than the hardness of the particles.
4, G300XK gear pumps all over the liquid material: comply with FDA standards testing requirements.
5, the work: 24 hours of continuous duty.
6, G300XB pump is suitable for conveying oil or medium viscosity ≥500cps media.
7, or may be a high pressure (20bar) used in a closed system under vacuum (-0.8bar).

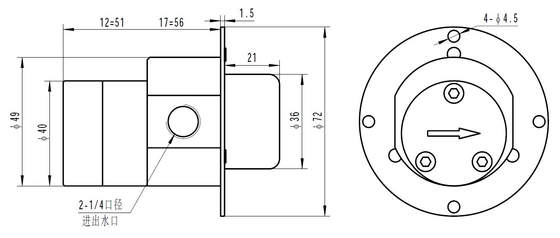

Outline dimension chart:

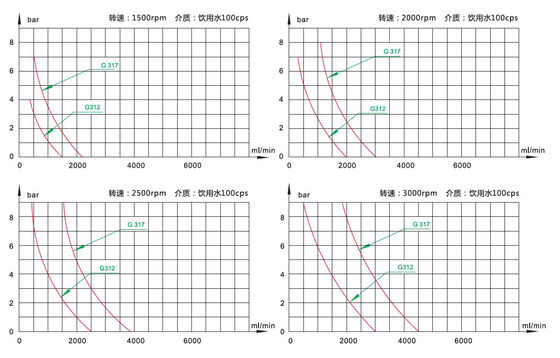

Flow graph:
