| Theory: | Vacuum Pump | Structure: | Gear Pump |
|---|---|---|---|
| Usage: | Water | Power: | Electric |
| Standard Or Nonstandard: | Nonstandard | Fuel: | Electric Power, Solar, Battery |
| Pressure: | High Pressure | Application: | Hot Water, Fuel Oils, Solvent |

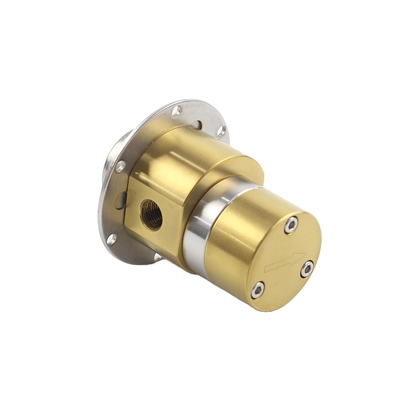

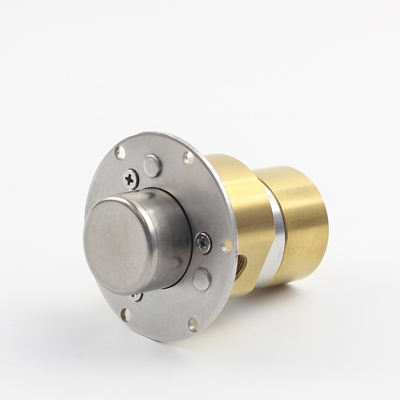

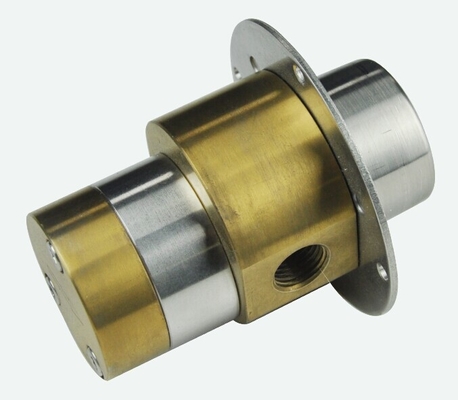

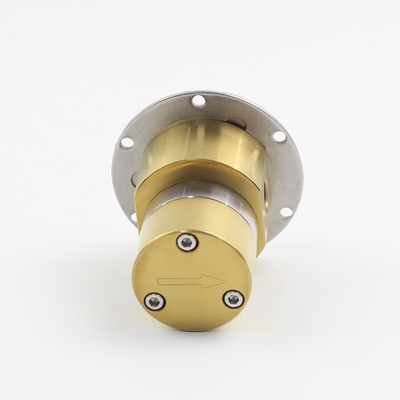

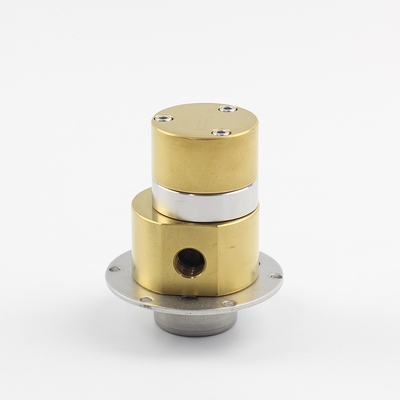

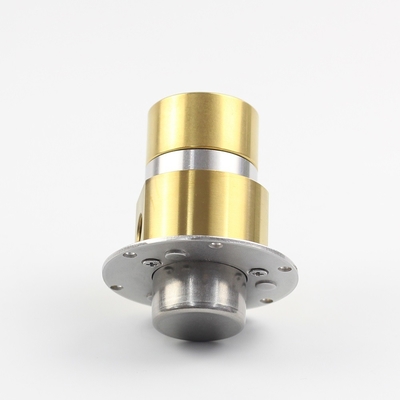

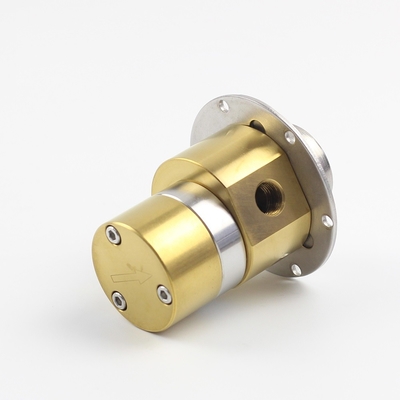

G300 (YT / YY) Magnetic drive gear pump is a new gear pump, YT Series gears and super-hard ceramic material made of Alloy, Stainless steel hardening treatment with high-quality manufactured housing composed of a gear pump. YY series of high quality Stainless steel made of hardened gears, shafts and housing the gear pump in a hard particle slurry liquid (such as the use of pigment ink, a liquid containing titanium dioxide), and it works fine. using magnetic coupling drive structural design to solve the problem of leakage of the gear shaft end, it is called a leak-free gear pump is mainly used in the field of medicine packaging machines, inkjet printing machines, analytical instruments and other trace delivery.
Model specification
| Model | MG | 3 | 00 | Y | T |
| Position | 1 | 2 | 3 | 4 | 5 |
| 1 | Pump Type | G = Gear pumps | |||
| 2 | Pump Series | 3 = 3 Series | |||
| 3 | Gear height | 12 = 12mm 17 = 17mm | |||
| 4 | Shell material | Y = Stainless steel 316 hardened | |||
| 5 | Gear Material | T = Hard Alloy Y = Stainless steel 316 hardened | |||
Technical parameters
| Specifications Model | Displacement (ml / rev) | Maximum Pressure (bar) | System pressure (bar) | Rev. range (rpm) | Medium viscosity (cps) |
| G312YT | 1 | 3 | -0.8 To 20 | 500 to 2500 | 300-1500 |
| G317YT | Fifteen | ||||
| G312YY | 1 | 300 to 2500 | |||
| G317YY | Fifteen |
Note: 1, the transmission medium temperature: -30 ℃ ~ 100 ℃ (except frozen); Ambient temperature: -30 ~ 50 ℃.
2, the inner rotor gear pump ferrite, static sealing material is PTFE; rotor cover material Stainless steel 316.
3, G300YY gear pumps all over the liquid material: are FDA-compliant testing requirements.
4, the work: 24 hours of continuous duty.
5, or may be a high pressure (20bar) used in a closed system under vacuum (-0.8bar).
6, suitable for transporting particles containing pigment ink and paint.
7, suitable particle diameter of ≤20 microns solution containing the liquid.
Outline dimension chart:
Flow graph:
